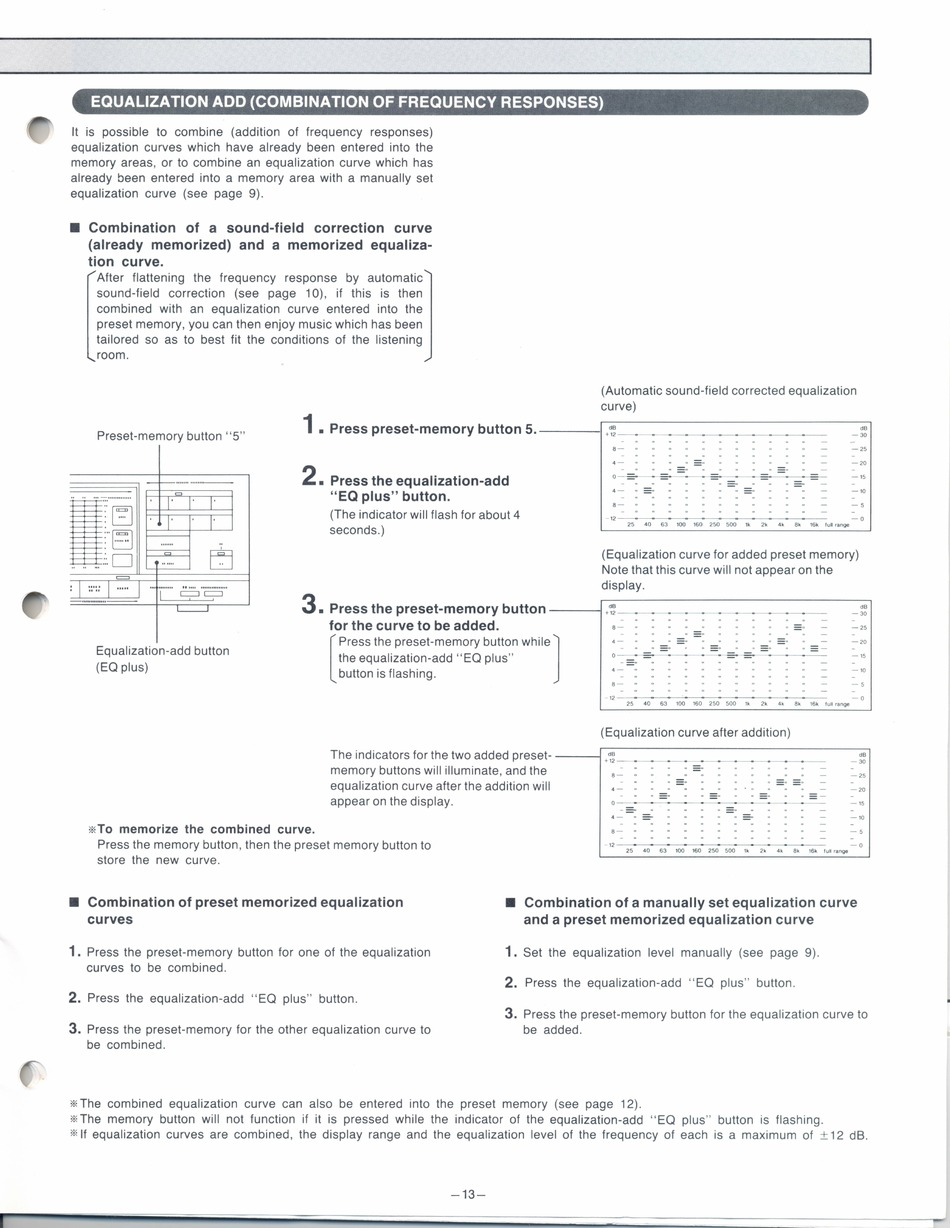

EQUALIZATION ADD (COMBINATION OF FREQUENCY RESPONSES)
It is possible to combine (addition of frequency responses)
equalization curves which have already been entered into the
memory areas , or to combine an equalization curve which has
already been entered into a memory area with a manually set
equalization curve (see page 9).
• Combination of a sound-field correction curve
(already memorized) and a memorized equaliza-
tion curve.
[
After flattening the frequency response by automatic]
sound-field correction (see page 1 0) , if this is then
combined with an equalization curve entered into the
preset memory, you can then enjoy music which has been
tailored so as to best fit the conditions of the listening
room .
(Automatic sound-field corrected equalization
curve)
Preset-memory button " 5"
1 .
Press preset-memory button 5.
----1·.-::~~ - ---------------- -~ c :-1 ~
__
............. ..
1· I
1 · · ··-:~
...... : :.0
1 · I
. I'
. I'
-
~
...::.::::__
. . ......... .. .................. .
2.
Press the equalization-add
"EO plus" button.
(The indicator will flash for about 4
seconds .)
a-
- 25
- 20
_,
-o
25 40 63 100 160 250 500 lk 2k 4k 8k 16k lui range
(Equalization curve for added preset memory)
Note that this curve will not appear on the
display.
: I ::·:: I .....
I
c::;::J=
3.
Press the preset-memory button
- - - - 1
.~~------------­
for the curve to be added.
08
- 30
- 25
Equalization-add button
(EO plus)
[
Press the preset-memory button while
l
the equalization-add " EO plus"
button is flashing .
-
0 -·~=-----=-
- - -- --
- 20
-o
25 40 ~ 100 160 250 500 lk 2k 4k ~
*
luM~nge
(Equalization curve after addition)
The indicators for the two added preset-
---f.~~~~:_~:_-:::_:_:_~:_~:_~:_-:::_:_:_~:_~:_~:_-:::_:_:_~:_~--- ~~;;1~
memory buttons will illuminate , and the
equalization curve after the addition will
- 25
- 20
appear on the display.
li< To memorize the combined curve.
Press the memory button , then the preset memory button to
store the new curve .
• Combination of preset memorized equalization
curves
1.
Press the preset-memory button for one of the equalization
curves to be combined .
2.
Press the equalization-add " EO plus" button.
3.
Press the preset-memory for the other equalization curve to
be combined .
-
4 - •
=-- .
- 00
8 -
D g •
- 5
12
-o
25 40 63 100 160 250 500 lk 2k 4k 8k 16k ruM range
• Combination of a manually set equalization curve
and a preset memorized equalization curve
1.
Set the equalization level manually (see page 9).
2.
Press the equalization-add " EO plus" button .
3.
Press the preset-memory button for th e equalization curve to
be added .
* The combined equalization curve can also be entered into the preset memory (see page 12).
li< The memory button will not function if it is pressed while the indicator of the equalization-add " EO plus" button is flashing .
* If equalization curves are combined , the display range and the equalization level of the frequency of each is a maximum of
±
12 dB.
