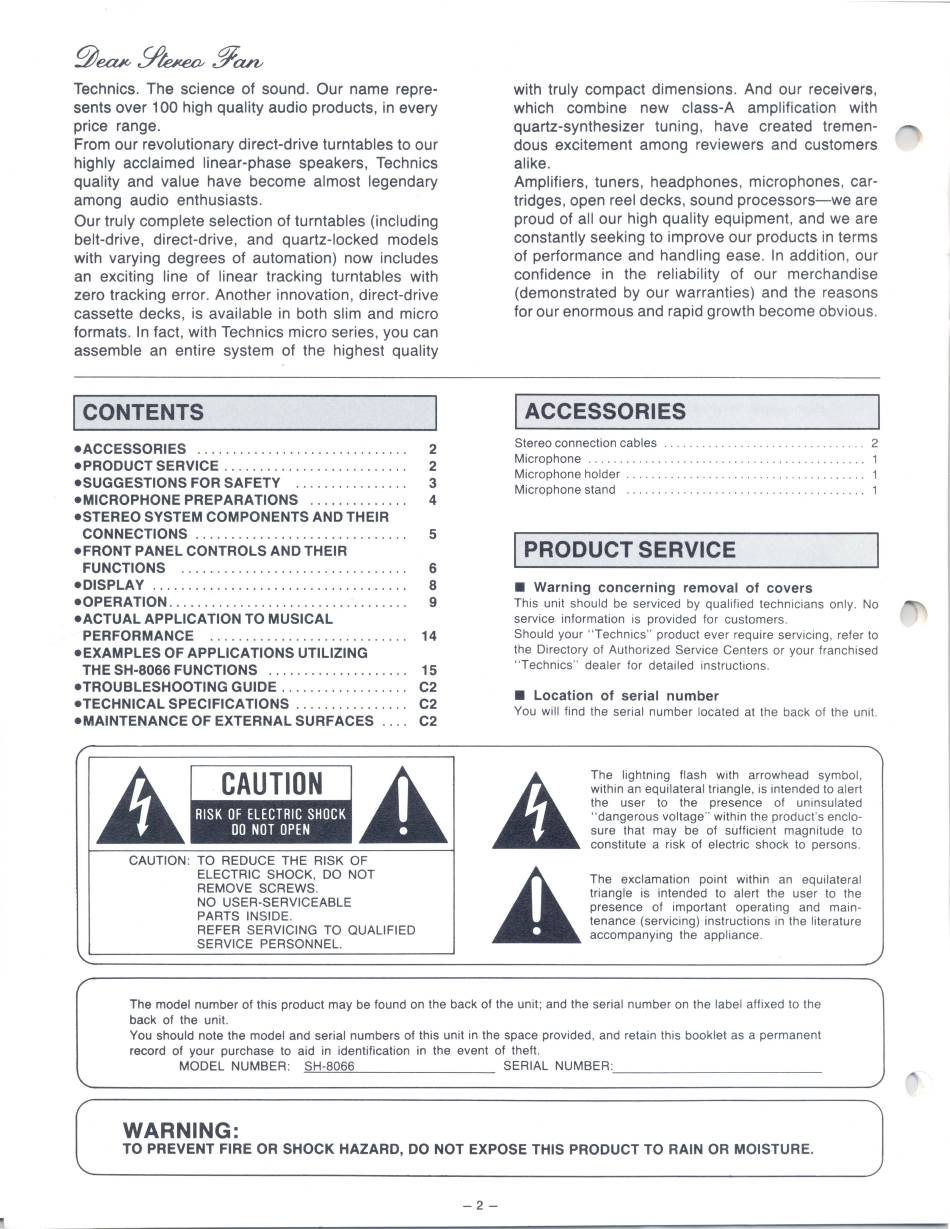

Technics SH-8066 Operating Instructions Manual page 2

Technics. The science of sound. Our name repre-
sents over 100 high quality audio products, in every
price range.
From our revolutionary direct-drive turntables to our
highly acclaimed linear-phase speakers, Technics
quality and value have become almost legendary
among audio enthusiasts.
Our truly complete selection of turntables (including
belt-drive, direct-drive, and quartz-locked models
with varying degrees of automation) now includes
an exciting line of linear tracking turntables with
zero tracking error. Another innovation, direct-drive
cassette decks, is available in both slim and micro
formats . In fact, with Technics micro series, you can
assemble an entire system of the highest quality
!cONTENTS
•ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
•PRODUCT SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . 2
•SUGGESTIONS FOR SAFETY . . . . . . . . . . . . . . . . 3
•MICROPHONE PREPARATIONS . . . . . . . . . . . . . . 4
•STEREO SYSTEM COMPONENTS AND THEIR
CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
•FRONT PANEL CONTROLS AND THEIR
FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
•DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
•OPERATION....... . .. .. ... . ... .......... . .... 9
•ACTUAL APPLICATION TO MUSICAL
PERFORMANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
•EXAMPLES OF APPLICATIONS UTILIZING
THE SH-8066 FUNCTIONS . . . . . . . . . . . . . . . . . . . . 15
•TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . C2
•TECHNICAL SPECIFICATIONS . . . . . . . . . . . . . . . . C2
•MAINTENANCE OF EXTERNAL SURFACES . . . . C2
with truly compact dimensions. And our receivers ,
which combine new class-A amplification with
quartz-synthesizer tuning, have created tremen-
dous excitement among reviewers and customers
alike.
Amplifiers , tuners, headphones, microphones , car-
tridges, open reel decks, sound processors-we are
proud of all our high quality equipment, and we are
constantly seeking to improve our products in terms
of performance and handling ease . In addition , our
confidence in the reliability of our merchandise
(demonstrated by our warranties) and the reasons
for our enormous and rapid growth become obvious .
A
ACCESSORIES
Stereo connection cables
2
Microphone . ............... . .. . . ... .... ...... . .. . ..... .
Microphone holder .... . . . . ... . .. . . . ... .. . . ........... . . .
Microphone stand ... . ........ . ..... . .................. .
PRODUCT SERVICE
• Warning concerning removal of covers
This unit should be serviced by qualified technicians only. No
service information is provided for customers .
Should your " Technics" product ever require servicing , refer to
the Directory of Authorized Service Centers or your franchised
" Technics " dealer for detailed instructions .
• Location of serial number
You will find the serial number located at the back of the unit.
AA
r---------------------------------------~
CAUTION
The lightning flash with arrowhead symbol ,
within an equilateral triangle, is intended to alert
the user to the presence of uninsulated
" dangerous voltage " within the product's encl o-
sure that may be of sufficient magnitude to
constitute a risk of electric shock to persons .
CAUTION : TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT
REMOVE SCREWS .
NO USER-SERVICEABLE
PARTS INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance.
The model number of this product may be found on the back of the unit ; and the serial number on the labe l affixed to th e
back of the unit.
You should note the model and serial numbers of this unit in the space provided , and retain this booklet as a permanent
record of your purchase to aid in identification in the event of theft.
MODEL NUMBER : SH-8066 SERIAL NUMBER : . ______________________ _
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
- 2 -
