Installation manual antennas
Installation manual for
Kathrein RFID UHF-Antennas
Low Range Antennas
Mid Range Antennas
SMSH Antennas / -modul
SMSH © KRAI Antennas / -modul
Wide Range Antennas
Wide Range © KRAI Antennas
This document is valid for all Kathrein RFID antennas and describes the construction and the
installation of the antennas.
Version 2.52
date of creation: 01.06.2012
Document No. 936B059
Advertisement
Table of Contents
Related Manuals for Kathrein U-LoRa ETSI/FCC
Summary of Contents for Kathrein U-LoRa ETSI/FCC
- Page 1 SMSH Antennas / -modul SMSH © KRAI Antennas / -modul Wide Range Antennas Wide Range © KRAI Antennas This document is valid for all Kathrein RFID antennas and describes the construction and the installation of the antennas. Version 2.52 date of creation: 01.06.2012...

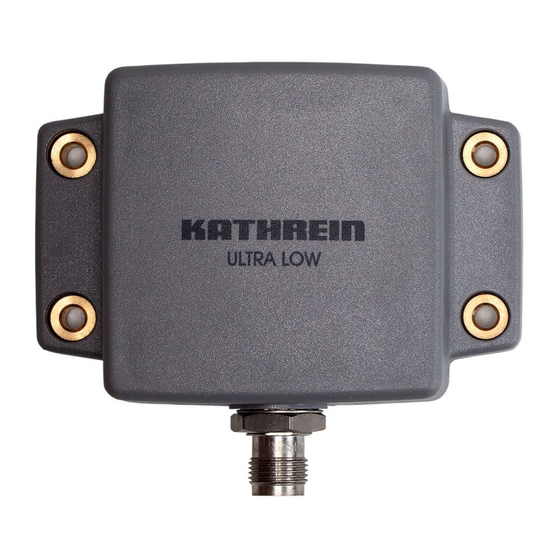

- Page 2 English RFID-UHF-Antennas This manual applies to the following RFID UHF types: Type: Order number: U-LoRa ETSI/FCC; Ultra Low Range antenna ETSI/FCC, 865-928 MHz 52010092 LoRa ETSI; Low Range-antenna ETSI, 865-870 MHz 52010084 LoRa FCC; Low Range-antenna FCC, 902-928 MHz 52010085...
- Page 3 Kathrein provides this document to its customers in connection with contacts of sale for the products described therein. If the person in possession of this document, being a legal or natural person, is not a contractual sales partner of Kathrein, or Kathrein has not intended him by other means as the recipient of the document and the information contained therein, the person in possession is hereby informed that the use of this document is unlawful and a violation of the rights of Kathrein.
- Page 4 List of contents English Abbreviatiions used in Application note: Connecting Kit Circular Switsch Beam Deutsches Institut für Normung (German Institut for Standardisation) Effective Isotropic Field Factor EIFF shows the field isoltaion from far- EIFF field to near-field in realation to the isotropic monopole EIRP Equivalent Isotropically Radiated Power Europäische Norm (European standard)
-
Page 5: Table Of Contents
List of contents English RFID-UHF antennas Foreword and gernaral information List of contents Saefty instruction /-informationen Introduction 2.1. RFID UHF antennas 2.2. Scope of supply 2.3. Accessories Product description 3.1. Low range Antennas 3.2. Mid range Antennas 3.3. SMSH antennas / -module 3.4. - Page 6 List of contents English 5.4. Assignment Wall/mast clamp to antennas and readerse 5.5. Installation drawings Contact address Installation manual antennas Modifications, misprints and errors excepted...
- Page 7 English Safety instructions/information Indicates a potentially dangerous situation which, if disregarded, can lead to injuries Caution ranging from minor to severe and/or damage to the unit. Information intended to make a specific topic easier to understand and/or enable optimal Note use of the unit functions.
- Page 8 2.1. RFID UHF antenna The new Kathrein antenna family consists of various UHF reader antennas, which can meet the needs of virtually any RFID application. The antennas are divided into three product lines with respect to the reading range: low range, mid range and wide range antennas.
-
Page 9: Introduction
The following accessories are available for the reader (if you have questions about the accessories, please contact our Sales Office): Antennas: For use with UHF-RFID antennas; we recommend the Kathrein RFID antenna types ULoRa, LoRa, MiRa, WiRa. These antenna types are available for all frequency ranges.The mentioned types of antennas... - Page 10 English Introduction Mounting Accessories Order number Type Product type 52010005 MK-WiRa30 Wall mount/mast mounting set for 30° WiRa antennas Wall mount/mast mounting set for RFID antennas and RRU4/ 52010128 MK-ARU WiRa70 ARU4-readers (to 6.0 kg total weight). MK-WM-100-100- Wal mounting set for WiRa 70° antennas and RRU-, ARU- 52010261 Indoor Reader;...
-
Page 11: Product Description
The antenna is equipped with an intelligent bypass circuit that allows for cascading up to 8 SMSH modules per reader port. The control is done by a suitable © KRAI Kathrein RFID reader, the © KRAI control signals are trans-... -
Page 12: Wide Range Antennas
1 dB. If specifi ed at all, the usual value on the market lies at around 3 dB. The improved circularity of the Kathrein wide range antennas leads to a significantly reduced influence of the read results caused by the position or orientation of the transponder. -
Page 13: Krai Antennas
8 SMSH modules per reader port. The control is done by a suitable © KRAI Kathrein RFID reader, the © KRAI control signals are transmitted via the standard antenna cable. -
Page 14: Antenna Type According To Read Range And Transponder Shape
Product description English 3.5.3. © KRAI CSB (Circular Switch Beam-) antenna With the ©KRAI CSB-Antenna, build as a WiRa 30° antenna, the antenna beam can be switched static or dynami- cally. The following settings are possible in any combination: Antenna beam initial position (radiation 90°of the Antenna) Antenna beam switched 35°... - Page 15 Product description English The correct combination of reader antenna and transponder is essential for every RFID application. The correct selection ensures a high read rate and reliable operation of the system. The LoRa and ULoRa antennas can read loop-shaped, hybrid-form and dipole-form transponders up to 10 cm and offer a very well defi ned read range.
-
Page 16: Maximum Reading Range
UHF readers from Kathrein. As a further option, it is possible to integrate the modular Kathrein RFID UHF reader latform in the WIRA antennas to also provide a powerful single read point for certain applications. As a result of the consistent continuation of the platform strategy for antenna and reader, all product and interface variants already introduced are available in nu- merous combinations. -
Page 17: Ultra-Low Range And Low Range Antenna
English Technical data 4.1. Ultra-Low range and Low range antennas Type U-LoRa (ETSI/FCC) LoRa (ETSI) LoRa (FCC) Order number 52010092 52010084 52010085 Frequency range 865-928 865-868 902-928 Antenna gain EIFF* VSWR <1.2:1 <1.3:1 <1.8:1 Impedance Ω Range of near field tags ** Selectifity of near field tags ** Range of far field tags ** Selectifity of far field tags **... - Page 18 English Technical data Tag types Ultra Low range antenna Low range antenna Loop-shaped (near field tags) Hybrid Dipole-form (far field tags) Figure 12: Read ranges of LoRa and U-LoRa by tag antenna LoRa antennas are only suitable for loop-shaped tags. There is no defined reading zone with hybrid tags and dipole-form tags.
-
Page 19: Short-Mid Range Antenna
English Technical data 4.2. Short-Mid range antenna Type S-MiRa (ETSI/FCC) Order number 52010172 Frequency range 865-928 Polarization circular Antenna gain dBic -12 @ 866 MHz -10 @ 915 MHz Axial ratio typ. 2 VSWR < 1.4:1 Impedance Ω Front-to-back ratio >... - Page 20 English Technical data Figure 13: Antenna directivity S-MiRa The antenna directivity shows the propagation characteristics of the EM field of the antenna. The half power beam width and the front to your ratio can be read from it. Installation manual antennas Modifications, misprints and errors excepted...
-
Page 21: Mid Range Antennas
Technical data English 4.3. Mid range antennas Type MiRa (ETSI) MiRa (FCC) Order number 52010082 52010083 Frequency range 865-868 902-928 MHz Polarization circular circular Antenna gain dBic Axial ratio typ. 1.5 typ. 2.5 VSWR < 1.3:1 < 1.5:1 Impedance Ω Front-to-back ratio - circular >... - Page 22 Technical data English Figure 14: Antenna diagram MiRa The antenna directivity shows the propagation characteristics of the EM field of the antenna. The half power beam width and the front to your ratio can be read from it. Installation manual antennas Modifications, misprints and errors excepted...
- Page 23 Technical data English 4.4. SMSH antennas SMSH-30-30-antenna SMSH-HighGain- Type modul 30-30-EU-antenna modul Order number 52010219 52010260 Frequency range 865-928 865-870 Polarization circular circular Antenna gain dBic typ. -7 typ. 5 Axial ratio typ. 1.5 typ. 2 VSWR typ. 1.25:1 Impedance Ω...
- Page 24 Technical data English 4.5. SMSH © KRAI antennas SMSH-HighGain- SMSH-30-30-KRAI an- Type 30-30-KRAI-EU-antenna tenna modul Order number 52010258 52010259 Frequency range 865-928 865-870 Polarization circular circular Antenna gain dBic typ. -7 typ. 5 Axial ratio typ. 1.5 typ. 2 VSWR typ.
- Page 25 Technical data English Figure 15: Antenna diagram SMSH Installation manual antennas Modifications, misprints and errors excepted...
-
Page 26: Wide Range 70° Antennas
Technical data English 4.6. Wide range 70° antennas Type WiRa 70° (ETSI) WiRa 70° (FCC) Order number 52010078 52010079 Frequency range 865-868 902-928 Polarization right-Hand circular (RHC) Antenna gain dBic 8.5 @ 866 MHz 8.3 @ 915 MHz Axial ratio typ. - Page 27 English Technical data Figure 16: Antenna diagram WiRa 70° ETSI/FCC The antenna points to the propagation characteristics of the EM field of the antenna. It would therefore appear the opening angle and the front-back ratio. Installation manual antennas Modifications, misprints and errors excepted...
-
Page 28: Wide Range © Krai 70° Antennas
Technical data English 4.7. Wide range © KRAI 70° antennas Type WiRa-70°-KRAI (ETSI) WiRa-70°-KRAI (FCC) Order number 52010193 52010194 Frequency range 865-868 902-928 Polarization circular LHCP / RHPC * - Antenna gain dBiC typ. 6,5 - Axial ratio typ. 2 Polarization linear Horizintal / Vertical - gain... - Page 29 English Technical data Figure 17: Antenna diagram WiRa-70°-KRAI ETSI/FCC Installation manual antennas Modifications, misprints and errors excepted...
- Page 30 Technical data English 4.7. Wide Range 40° Antenne WiRa 40° linear WiRa 40° linear Type (ETSI) (FCC) Order number 52010251 52010252 Frequency range 865-870 902-928 Polarization linear Antenna gain dBic typ. 12 typ. 13 VSWR < 1.3:1 < 1.5:1 Impedance Ω...
- Page 31 English Technical data Figure 18: Antenna diagram WiRa-40-linear ETSI/FCC Installation manual antennas Modifications, misprints and errors excepted...
- Page 32 Technical data English 4.7. Wide Range 30° linear Antenne Type WiRa 30° linear (ETSI) WiRa 30° linear (FCC) Order number 52010248 52010249 Frequency range 860-870 902-928 Polarisation linear Antenna gain dBic typ. 11 typ. 11.5 Impedance Ω VSWR < 1.3:1 <...
- Page 33 English Technical data Figure 19: antenna diagram WiRa-40-linear ETSI/FCC Installation manual antennas Modifications, misprints and errors excepted...
-
Page 34: Wide Range 30° Antennas
English Technical data 4.9. Wide Range 30° antennas Type WiRa 30° (ETSI) WiRa 30° (FCC) Order number 52010086 52010087 Frequency range 865-868 902-928 Antenna gain dBic typ. 11 typ. 10,5 Impedance Ω VSWR < 1,2:1 Axial ratio < 2 Polarization right-handed circular (RHC) Front-to-back ratio >... - Page 35 English Technical data Figure 20: Antenna diagram WiRa 30° ETSI/FCC The antenna points to the propagation characteristics of the EM field of the antenna. It would therefore appear the opening angle and the front-back ratio. Installation manual antennas Modifications, misprints and errors excepted...
- Page 36 English Technical data 4.10. Wide Range © KRAI CSB 30° antennas Type WiRa-30-CSB-KRAI (ETSI) Order number 52010227 Frequency range 865-870 Polarization circular Antenna gain dBic Impedance Ω VSWR <1.3:1 Axial ratio typ. 2 Front-to-back ratio >17 Max. radiated power 2 ERP (ETSI EN 302 208) Max.
- Page 37 English Technical data Figure 21: Read range vertical cut WiRa-30-KRAI- ETSI antenna Figure 22: Directions of the WiRa-30-CSB-KRAI-ETSI antenna Hinweis Please note that the Beam „R“ is assigned (right) getting the connection side. Installation manual antennas Modifications, misprints and errors excepted...
-
Page 38: Installation
Installation Installation English The MiRa and WiRa antennas are relatively insensitive to the type of attachment and the materials surrounding the antennas. Nevertheless few conductive objects in the vicinity of the antenna should be presented. In addition, other objects, such as containers with liquids in the vicinity of the antenna affect their functionality. In such cases, a reassessment of the antenna in the particular installation conditions is necessary. -
Page 39: Wall/Mast Clamp
Installation Installation English 5.3. Wall/mast clamp Note Selecting the installation location: Before drilling the holes, make sure there are no electrial cables in the wall. Risk if fatal injury due to electric shock ! Make sure that the wall / the mast has a sufficient capacity. Use the appropriate mounting hardware (not included). You may need to strengthen the wall of your desired mounting location or use a different masts. - Page 40 Installation English 5.3.2. Mast clamp for Wide range 30° antennas Mast clamp for install Wide range 30° antennas to 2 - 4.5 inch (50 - 115 mm) mounting structures. Mounting plate with variours pre-drilled holes suitable for Wide range antennas ect. Figures 27: Wand-/Mastmontage 52010005 Order number: 52010005...
- Page 41 Installation English 5.3.3. Mast mounting Ste for Wide Range 70° antennas and for RRU4/ARU4-Reader Figures 28: Wand-/Mastmontage 52010261 Order number: 52010261 Max. load-bearing capacity ± 30 Azimuth Adjustment range ° ± 45 Elevation Weight (unpacked) ca. 0,6 Dimension of the packing 150 x 120 x 80 Material Stainless steel and galvanized steel;...
- Page 42 Installation English 5.4. Assignment Wall/mast clamp to antennas and readers Order No. Wall/Poll monting set Order-No, antenna Typ antenna 52010005 52010128 52010261 52010262 52010086 WiRa 30° ETSI 52010087 WiRa 30° FCC 52010251 WiRa 40 linear ETSI 52010252 WiRa 40 linear FCC 52010078 WiRa 70°...
- Page 43 Installation English 5.5. Installation drawings Figure 29: Dimensios for U-LoRa/LoRa antenna (52010092, -84, -85) Figure 30: dimensios for MiRa/S-Mira antenna (52010172, -82, -83) Installation manual antennas Modifications, misprints and errors excepted...
- Page 44 English Installation Figure 31: Dimensions for WiRa 70° antenna (52010078, -79) Installation manual antennas Modifications, misprints and errors excepted...
- Page 45 English Installation Bild 32: Abmessungen für WiRa 40° (52010251, -252) Installation manual antennas Modifications, misprints and errors excepted...
- Page 46 English Installation Figure 33: Dimensions for WiRa 30° antenna (52010086, -87 Installation manual antennas Modifications, misprints and errors excepted...
- Page 47 English Installation Figure 34: Note left / right installation WiRa-30-CSB-KRAI antenna (52010227, -228) Figure 35: Dimensions for WiRa-30-CSB-KRAI antenna (52010227, -228) Note Please note that the Beam „R“ is assigned (right) getting the connection side. Installation manual antennas Modifications, misprints and errors excepted...
- Page 48 English Contact address Address Contact Kathrein RFID E-Mail: rfid-sales@kathrein-rfid.de Kronstaudener Weg 1 Internet: www.kathrein-rfid.de D-83071 Stephanskirchen Installation manual antennas Modifications, misprints and errors excepted...
