Roland NOVA-MOD SH-101 Manual page 8

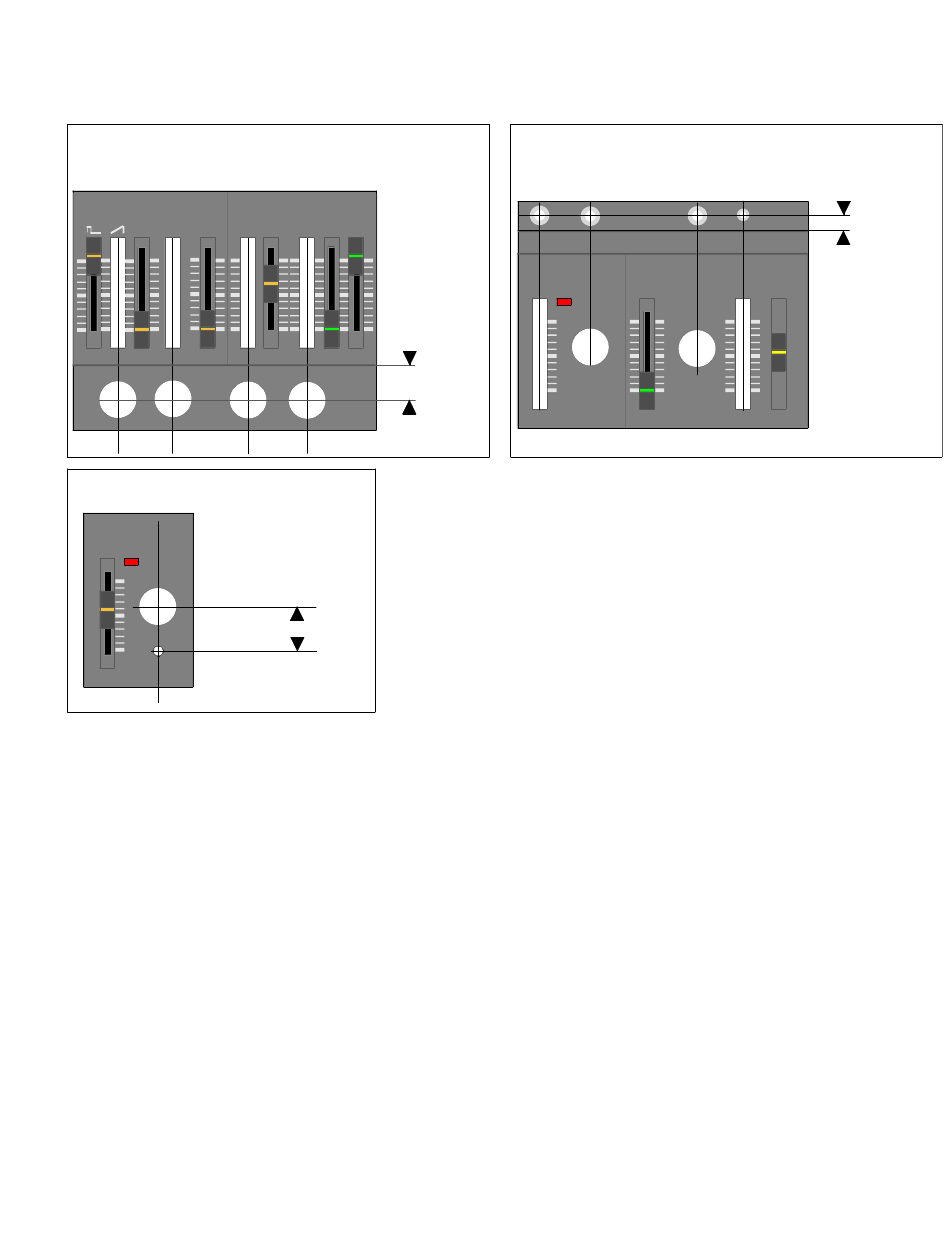

PW Source / Ext. audio / FM Source/
FM Amount Switch and Pot Locations
SOURCE MIXER
SUB OSC NOISE FREQ RES
-1
-2
-2
PW SOURCE EXT AUDIO FM SOURCE
LFO Scalar Switch Location
MODULATOR
LFO/CLK
RATE
WAVEFORM
NORM LO HI
Drill Locations
VCF
ENV MOD KEYBD
2.00cm
AMOUNT
2.30 cm
Ext. LFO/ Ext VCF CV/ Ext Audio Jack/
Audio Switch Loctaions
EXT AUDIO
LFO CLK VCF CV
IN
IN IN
MODULATOR
LFO/CLK
RATE MOD
WAVEFORM RANGE
1.15 cm
FM Filter
VCO
PULSEWIDTH
LFO
MAN
ENV
