Roland NOVA-MOD SH-101 Manual page 11

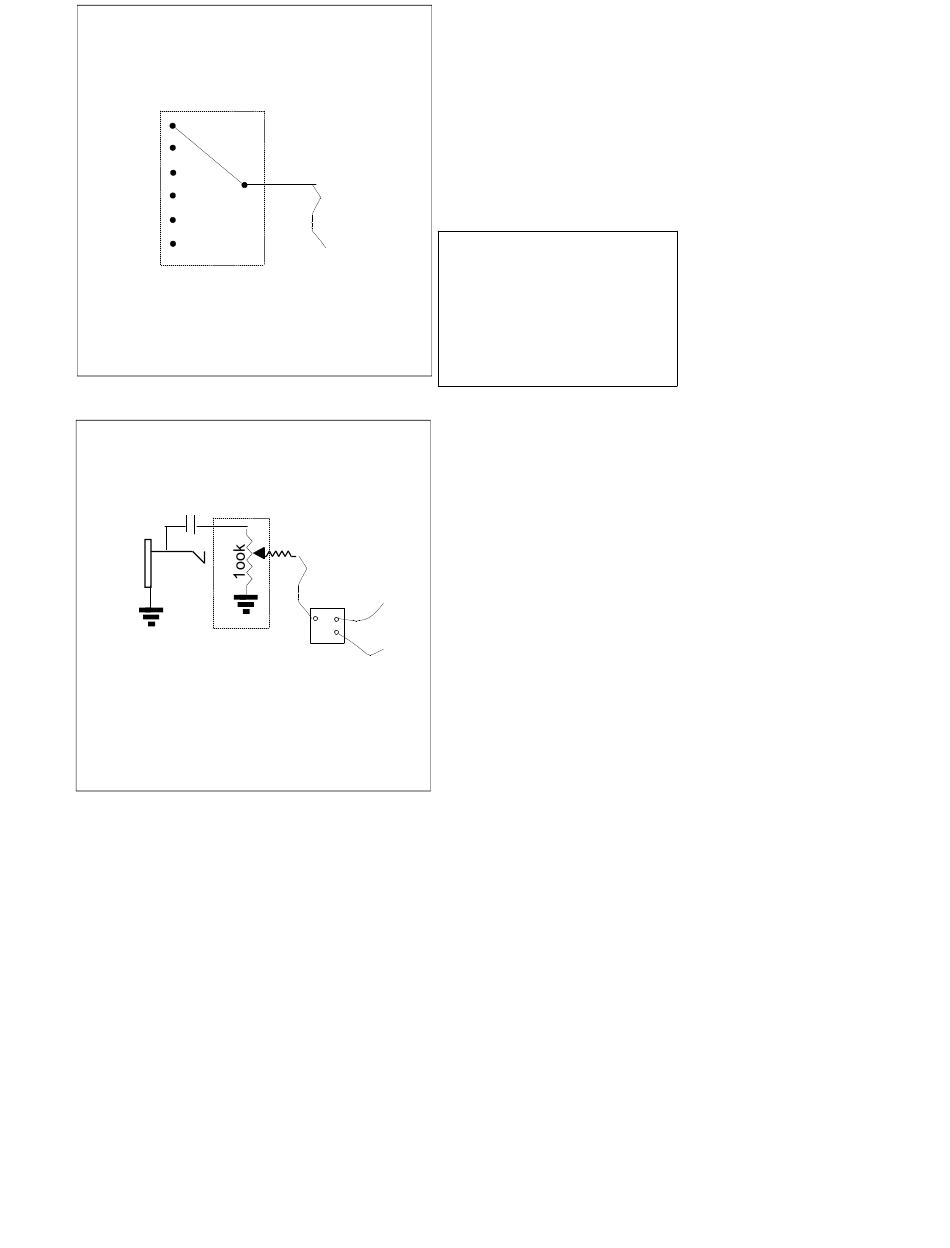

PW Mod Source
1
Tri
Sqr 2
Rnd 3
com
4
-1oct sqr
5
-2Oct pulse
Noise 6
6 position
rotary switch
Ext Audio Input
4.7uF 10V Cap
100K
Pot
Audio
Waveform Tap Points:
To R176
50k
To junction
of R109, 110,
111,112 on
Synth Board
SPDT
To junction
Switch
of R184-187on
Control Board
Cut Trace on control board between
R176 and Jumper.
Locate hole for Ext audio Amount
Pot, directly below the Sub Osc -1/-1/-2
Switch at a distance of 2.00cm
from the groove that runs left to right
across the control surface.
