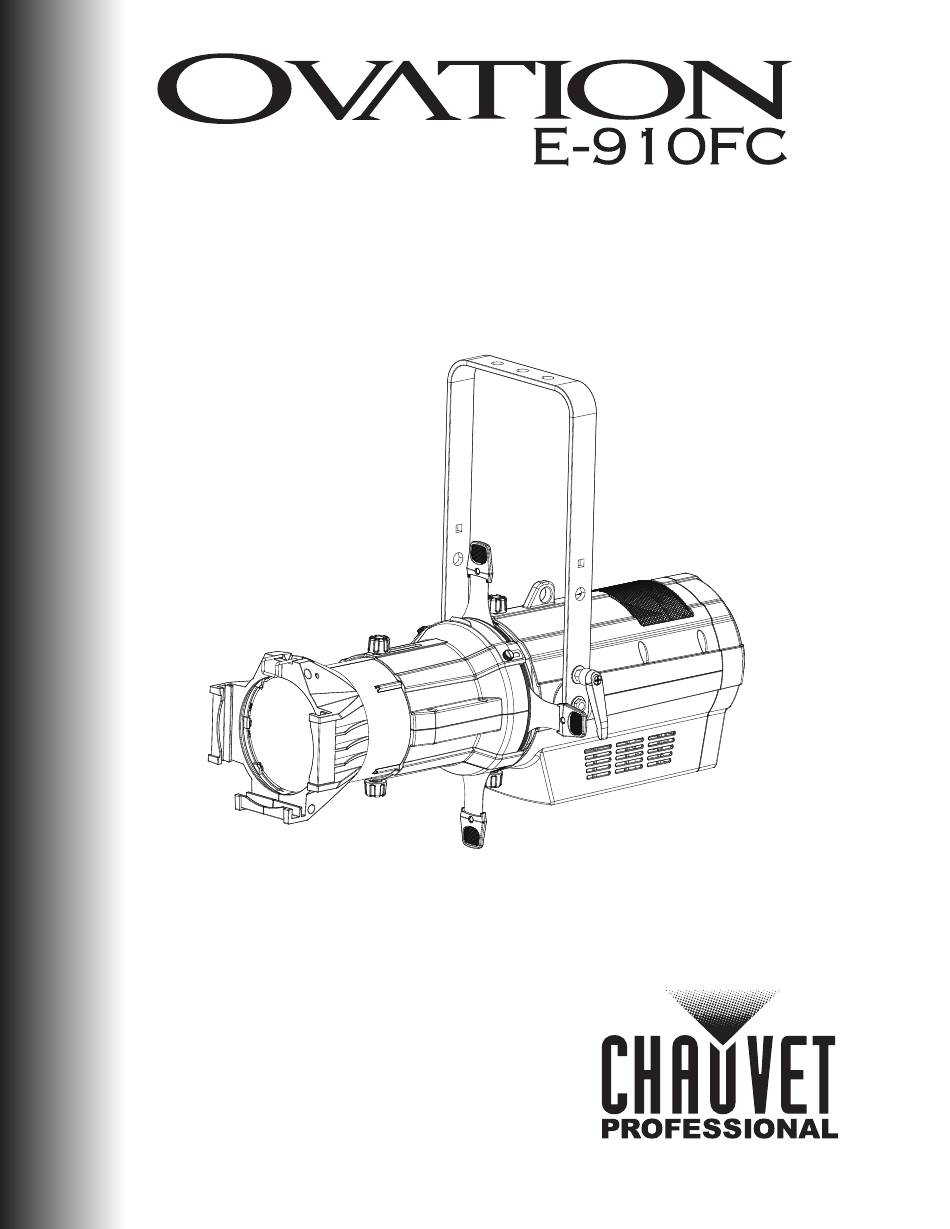

- Page 1 User Manual * Lens tubes sold separately...
- Page 2 Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetprofessional.com.
-
Page 3: Table Of Contents
Configuration (Standalone) ................12 Focus Mode ........................Virtual Color Wheel ......................Color Temperature ......................Manual Color Mixer ......................Auto Programs ....................... Red Shift ........................Master/Slave ........................Dimmer Curve ........................ Dimmer Profiles......................White Balance ........................ Ovation E-910FC User Manual Rev. 11... - Page 4 Virtual Color Wheel Chart ....................Color Temperature Chart ....................DMX Values ....................15 16Ch..........................13Ch..........................12Ch..........................10Ch..........................7Ch..........................5Ch..........................3Ch..........................HSV..........................5. Technical Information ..............Product Maintenance ..................18 6. Technical Specifications ............Returns.................... Contact Us ..................Ovation E-910FC User Manual Rev. 11...
-
Page 5: Before You Begin
If the box or the contents (the product and included accessories) appear damaged from shipping, or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate customer’s claim. In addition, keep the box and contents for inspection. -
Page 6: Safety Notes
• In the event of a serious operation problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Expected LED Lifespan Over time, use and heat will gradually reduce LED brightness. Clustered LEDs produce more heat than single LEDs, contributing to shorter lifespans if always used at full intensity. -
Page 7: Introduction

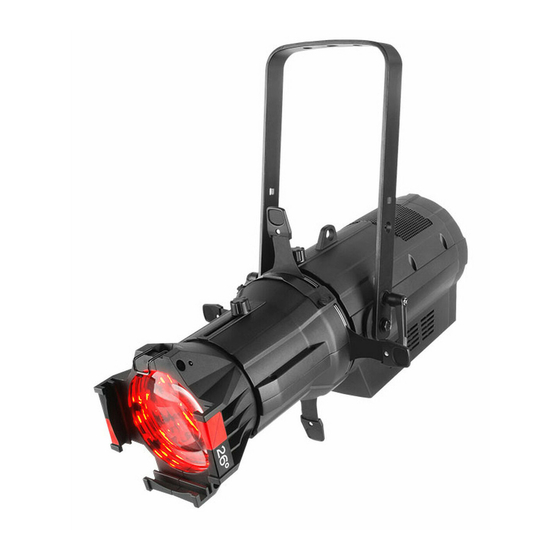

2. Introduction Description The Ovation E-910FC is a high-performance ERS-style fixture with full RGBAL color mixing and color temperature presets of 2800 K to 6500 K that match the output of a tungsten source to perfection. Control options include full 16-bit dimming (per color and master), selectable PWM, RDM, and on-board dimming curve selection. -
Page 8: Product Overview
Control panel Handle Menu buttons 3- and 5-pin Power in DMX in Lens tube Fuse Light engine (sold separately) 3- and 5-pin Power out DMX out Barrel assembly Gel frame holder Page 4 of 21 Ovation E-910FC User Manual Rev. 11... -
Page 9: Product Dimensions
NTRODUCTION Product Dimensions 25.910 in 283 mm 11.17 in 6.86 in 283 mm 174 mm 19.35 in 491 mm 19.15 in 486 mm 6.77 in 172 mm Ovation E-910FC User Manual Rev. 11 Page 5 of 21... -
Page 10: Setup
Always replace the blown fuse with another of the same type and rating. DMX Linking The Ovation E-910FC can be linked to a DMX controller using a 3- and 5-pin DMX connection. If using other DMX-compatible products with this product, it is possible to control each individually with a single DMX controller. -
Page 11: Master/Slave Connectivity
Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Procedure The Ovation E-910FC comes with a double-bracketed yoke that can be used as a floor stand or to which mounting clamps can be attached for hanging. Mounting clamps must be purchased separately. Ensure that the clamps can support the weight of this product. -
Page 12: Manual Beam Focus Control
Accessory Slot The Ovation E-910FC has an accessory slot, which holds a drop-in iris, a motorized pattern device, or various other optional accessories (sold separately). Loosen the thumbscrews on the slot cover. (Note: Do not remove the thumbscrews). -
Page 13: Operation
Navigates downward through the menu list or decreases the numeric value when in a <DOWN> function Control Options Set the Ovation E-910FC starting address in the 001-512 DMX range. This enables control of up to 12 products in the 16-channel personality. Programming Refer to the Menu Map to understand the menu options. -
Page 14: Menu Map
C5060 - Dk Blue C5690 - Indigo C5080 - VDk Blue C5081 - VDk Blue 2 C4370 - Yel Green C4070 - Green C4550 - Turquoise C4560 - Aqua C4570 - Blue Green Page 10 of 21 Ovation E-910FC User Manual Rev. 11... - Page 15 LED Hours _ _ _ _H Information powered on Version V_._ Shows current firmware version _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID Ovation E-910FC User Manual Rev. 11 Page 11 of 21...
-
Page 16: Configuration (Standalone)
Use standalone configuration to operate the product without a DMX controller. Focus Mode Focus mode allows for focusing of the Ovation E-910FC without changing any menu settings. Press and hold <ENTER> for 3 seconds. The intensity will increase to 100%. -
Page 17: Dimmer Profiles
Keep a safe distance from flammable objects. Back Light This setting allows for selection of the amount of time the backlight on the Ovation E-910FC’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. -
Page 18: Virtual Color Wheel (Vcw)
Virtual Color Wheel (VCW) The Ovation E-910FC includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and as a control channel in select DMX personalities. More than 30 premixed colors, custom blended by Chauvet engineers, are available to call up for easier programming. -
Page 19: Dmx Values
Amber fine 000 255 0–100% Lime 000 255 0–100% Lime fine 000 255 0–100% 000 010 No function Strobe 011 255 Strobe, slow to fast Ovation E-910FC User Manual Rev. 11 Page 15 of 21... -
Page 20: 12Ch
Strobe 011 255 Strobe, slow to fast Virtual color wheel 000 255 Refer to Virtual Color Wheel Chart Color temperature 000 255 Refer to Color Temperature Chart Page 16 of 21 Ovation E-910FC User Manual Rev. 11... -
Page 21: 7Ch
Virtual Color Wheel Chart Color temperature 000 255 Refer to Color Temperature Chart Channel Function Value Percent/Setting 000 255 0–100% Saturation 000 255 0–100% Value 000 255 0–100% Ovation E-910FC User Manual Rev. 11 Page 17 of 21... -
Page 22: Technical Information
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 18 of 21 Ovation E-910FC User Manual Rev. 11... -
Page 23: Technical Specifications
3, 5, 7, 10, 12, 13, 16, or HSV Ordering Product Name Item Name Item Code UPC Number Ovation E-910FC OVATIONE910FC 03121116 781462214647 UL 1573 CSA C22.2 No. 166 E113093 Ovation E-910FC User Manual Rev. 11 Page 19 of 21... -
Page 24: Returns
Returns Returns Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. -
Page 25: Contact Us
Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, France, Germany, Benelux, or Mexico, contact the dealer of record. Ovation E-910FC User Manual Rev. 11 Page 21 of 21...
