User Manual
*Lens tubes
sold separately

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ovation E-910FC and is the answer not in the manual?

Questions and answers

Related Manuals for Chauvet Ovation E-910FC

Summary of Contents for Chauvet Ovation E-910FC

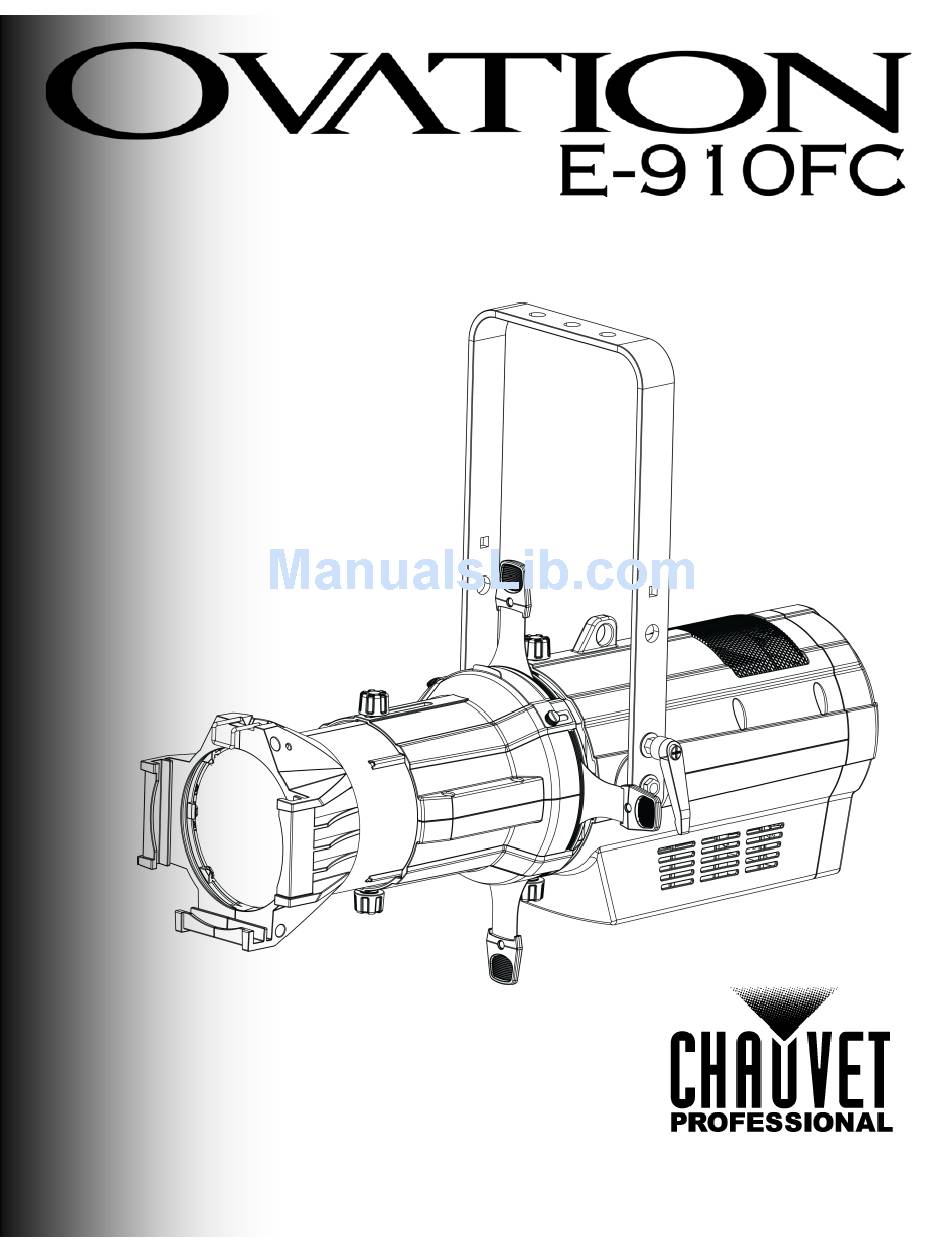

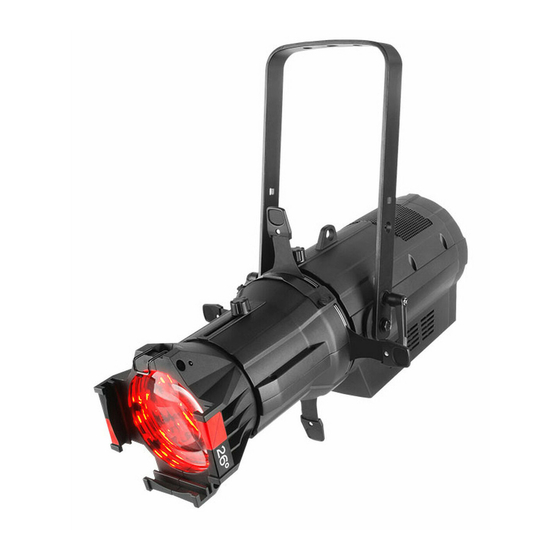

  • Page 1 User Manual *Lens tubes sold separately...
  • Page 2 Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions..

  • Page 3: Table Of Contents

    Rotating the Barrel Assembly ............................... 9 Accessory Slot ..................................... 9 4. Operation ..............................10 Control Panel Description ............................10 Control Options ..................................10 Programming....................................10 Menu Map ................................... 10 Menu Map (Cont.) ............................... 11 Menu Map (Cont.) ............................... 12 Ovation E-910FC User Manual Rev. 2...
  • Page 4 DMX Values (Cont.) ..............................21 5. Technical Information ..........................22 Product Maintenance ..............................22 Cleaning the Light Engine Lens ..............................22 6. Technical Specifications ......................... 23 Returns ..................................24 Contact Us ..............................25 -ii- Ovation E-910FC User Manual Rev. 2...

  • Page 5: Before You Begin

    If the box or the contents (the product and included accessories) appear damaged from shipping or show signs of mishandling, notify the carrier immediately, not Chauvet. Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection.

  • Page 6: Safety Notes

    This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained Chauvet certified technicians. Do not open the housing or attempt any repairs.

  • Page 7: Introduction

    Introduction 2. Introduction The Ovation E-910FC is a high-power full color LED (RGBAL) ERS-style product. It features full Description RGBA-Lime color mixing with modes providing full 16-bit dimming (per color and master), selectable PWM, RDM, and on-board dimming curve selection. The Virtual Color Wheel matches popular gel colors comparable to those projected by a tungsten source.

  • Page 8: Overview

    Light Engine (sold separately) Bottom View Barrel Assembly Frame Holder Framing Shutter (x4) Side View Control Panel Handle Power In 3-and 5-pin Fuse DMX In 3-and 5-pin DMX Out Power Out Front View Rear View Ovation E-910FC User Manual Rev. 2...

  • Page 9: Dimensions

    Introduction Dimensions 6.86 in 174 mm 6.77 in 172 mm 11.17 in 283 mm 19.15 in 486 mm 25.90 in 657 mm 19.35 in 491 mm 23.33 in 592 mm Ovation E-910FC User Manual Rev. 2...

  • Page 10: Setup

    Each Ovation E-910FC has an auto-ranging power supply that works with an input voltage AC Power range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Ovation E-910FC, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual.

  • Page 11: Dmx Linking

    DMX-compatible products with the Ovation E-910FC, you can control each individually with a single DMX controller. The Ovation E-910FC uses a 3- or 5-pin DMX data connection for the 5, 7, 10, 12, 13, and 15-channel DMX personalities.

  • Page 12: Mounting

    When hanging this product, always secure to a fastening device using a safety cable. For our CHAUVET Professional line of safety cables, go to http://trusst.com/products/. The Ovation E-910FC comes with a hanging/mounting bracket to which you can attach Procedure mounting clamps. The bracket has 13-mm holes, which are appropriate for this purpose. You must supply your own mounting clamps, so be sure the clamps are capable of supporting the weight of this product.

  • Page 13: Manual Beam Focus Control

    Make sure the barrel assembly is oriented with the pattern holder and Accessory slots at the top of the product. The Ovation E-910FC has an accessory slot, which holds a drop-in iris, a motorized Accessory Slot pattern device, or various other optional accessories (sold separately).

  • Page 14: Operation

    Navigates downward through the menu list or decreases the numeric value when in a function Set the Ovation E-910FC starting address in the 001–512 DMX range. This enables control of Control Options up to 34 products in the 15-channel 15Ch personality.

  • Page 15: Menu Map (Cont.)

    Preset Color Temperature Chart section 5000K for specific values. 5600K 6000K 6500K Green Combine red, green, blue, amber, and Manual Color Blue <0–255> lime to make a custom color Mixer (0–100%) Amber Lime Ovation E-910FC User Manual Rev. 2 -11-...

  • Page 16: Menu Map (Cont.)

    Fixture Hours <_ _ _ _H> Shows total product hours Information Version <V_._> Shows installed software version UID: _ _ _ _ _ _ _ _ _ _ _ _ Shows product UID -12- Ovation E-910FC User Manual Rev. 2...

  • Page 17: Configuration (Standalone)

    The DMX controller may interfere with signals from the master. · The master should be the first product in the daisy chain. The Ovation E-910FC offers over thirty pre-mixed colors based on Rosco gel colors. To select a Virtual Color Rosco gel color, do the following.

  • Page 18: Dimmer Profiles

    1. Go to the Fan Mode main level. 2. Select a fan mode (Auto, or On). This setting allows you to set the amount of time the backlight on the Ovation E-910FC’s display Back Light stays on after the last button is pressed on the control panel.

  • Page 19: Configuration (Dmx)

    Go to DMX Address main level. b. Select the starting address (001–512). The highest recommended starting address for each DMX mode is as follows: Personality Address Personality Address Personality Address 10Ch 13Ch 12Ch 15Ch Ovation E-910FC User Manual Rev. 2 -15-...

  • Page 20: Dmx Values

    203ó210 R383 - Sapphire Blue 211ó218 R90 - Dark Yellow Green 219ó226 R91 - Primary Green 227ó234 R92 - Turquoise 235ó242 R93 - Blue Green 243ó250 R393 - Emerald Green 251ó255 No function -16- Ovation E-910FC User Manual Rev. 2...

  • Page 21: Dmx Values (Cont.)

    Strobe, slow to fast 12Ch Channel Function Value Percent/Setting Dimmer 000ó255 0–100% 000ó255 0–100% Green 000ó255 0–100% Blue 000ó255 0-100% Amber 000ó255 0–100% Lime 000ó255 0-100% 000ó010 No function Strobe 011ó255 Strobe, slow to fast Ovation E-910FC User Manual Rev. 2 -17-...

  • Page 22: Dmx Values (Cont.)

    R393 - Emerald Green 251ó255 No function 000ó005 No function 006ó025 2800K 026ó050 3200K 051ó075 3500K 076ó100 4000K Color Temperature 101ó125 4500K 126ó150 5000K 151ó175 5600K 176ó200 6000K 201ó225 6500K 226ó255 No function -18- Ovation E-910FC User Manual Rev. 2...

  • Page 23: Dmx Values (Cont.)

    Function Value Percent/Setting Dimmer 000ó255 0–100% Dimmer Fine 000ó255 0–100% 000ó255 0–100% Green 000ó255 0–100% Blue 000ó255 0-100% Amber 000ó255 0–100% Lime 000ó255 0-100% 000ó010 No function Strobe 011ó255 Strobe, slow to fast Ovation E-910FC User Manual Rev. 2 -19-...

  • Page 24: Dmx Values (Cont.)

    R393 - Emerald Green 251ó255 No function 000ó005 No function 006ó025 2800K 026ó050 3200K 051ó075 3500K 076ó100 4000K Color Temperature 101ó125 4500K 126ó150 5000K 151ó175 5600K 176ó200 6000K 201ó225 6500K 226ó255 No function -20- Ovation E-910FC User Manual Rev. 2...

  • Page 25: Dmx Values (Cont.)

    Amber 000ó255 0–100% Lime 000ó255 0–100% 000ó010 No function Strobe 011ó255 Strobe, slow to fast Channel Function Value Percent/Setting 000ó255 0–100% Green 000ó255 0–100% Blue 000ó255 0–100% Amber 000ó255 0–100% Lime 000ó255 0-100% Ovation E-910FC User Manual Rev. 2 -21-...

  • Page 26: Technical Information

    Always close the framing shutters when transporting or storing the product. To remove the lens tube (sold separately), unscrew the beam focus knobs. Follow any maintenance and cleaning instructions supplied with the lens tube. -22- Ovation E-910FC User Manual Rev. 2...

  • Page 27: Technical Specifications

    113 °F (45 °C) Fan-Assisted Convection I/O Connectors Connector Type Channel Range 3- and 5-pin XLR Sockets 5, 7, 10, 12, 13, 15 Ordering Product Name Item Code UPC Number Ovation E-910FC 03121116 781462214647 Ovation E-910FC User Manual Rev. 2 -23-...

  • Page 28: Returns

    Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. Chauvet will refuse any product returned without an RMA number. DO NOT write the RMA number directly on the box. Instead, write it on a properly affixed label.

  • Page 29: Contact Us

    +52 (728) 285-5000 Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Ovation E-910FC User Manual Rev. 2...
