Summary of Contents for Chauvet EVE P-150 UV

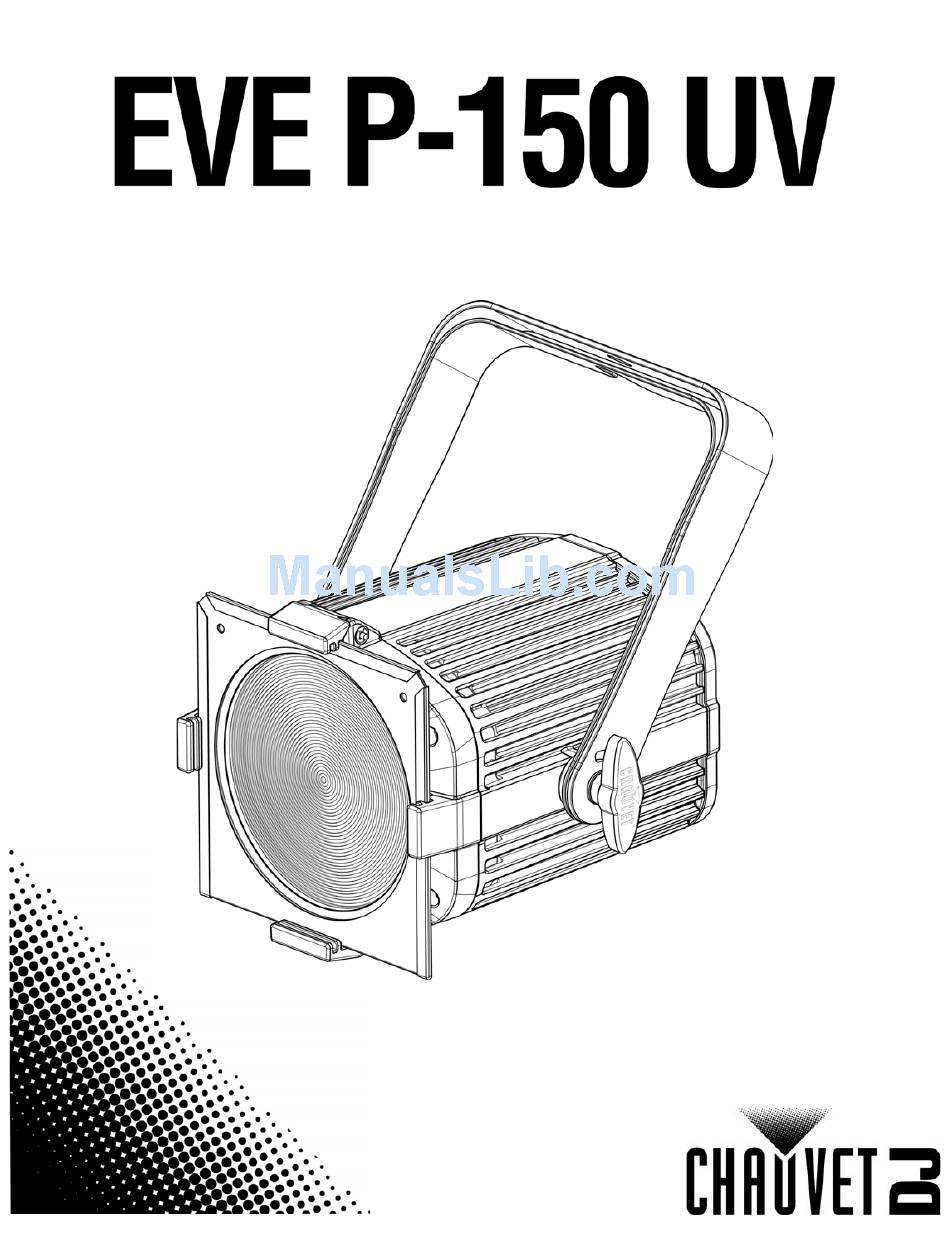

- Page 1 User Manual...
-
Page 2: Table Of Contents
Sound-Active Mode.................... Sound Sensitivity....................Static Mode ......................Dimmer Speed Mode ..................Temperature....................... Master/Slave Mode (Wired) ................Master/Slave Mode (D-Fi USB)..............5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................EVE P-150 UV User Manual Rev. 1... -
Page 3: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. Download the latest version from www.chauvetdj.com. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 2 of 14 EVE P-150 UV User Manual Rev. 1... -
Page 5: Introduction
WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product. Product Dimensions 8.6 in 220 mm 9.65 in 245 mm 12 in 305 mm EVE P-150 UV User Manual Rev. 1 Page 3 of 14... -
Page 6: Setup
3. Setup AC Power The EVE P-150 UV has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s... -
Page 7: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The EVE P-150 UV may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 8: Operation
Temperature teMP Displays current product temperature in °C Configuration (DMX) The EVE P-150 UV works with a DMX controller. Information about DMX is in the CHAUVET DMX Primer, which is available from the Chauvet website http://www.chauvetlighting.com/downloads/ DMX_Primer_rev05_WO.pdf. Starting Address When selecting a starting DMX address, always consider the number of DMX channels the selected DMX mode uses. -
Page 9: D-Fi Usb Connectivity
Operation D-Fi USB Connectivity The EVE P-150 UV is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D-Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 10: Dmx Channel Assignments And Values
152 Dimmer speed mode 1 (fast) 203 Dimmer speed mode 2 (medium) 255 Dimmer speed mode 3 (slow) 1-CH Channel Function Value Percent/Setting Dimmer 255 0–100% Page 8 of 14 EVE P-150 UV User Manual Rev. 1... -
Page 11: Configuration (Standalone)
• OFF. Press <ENTER>. Temperature To view the current temperature of the EVE P-150 UV in °C, do the following: Press <MENU> repeatedly until teMP shows on the display. Press <ENTER>. EVE P-150 UV User Manual Rev. 1 Page 9 of 14... -
Page 12: Master/Slave Mode (Wired)
Master/Slave Mode (D-Fi USB) The D-Fi USB allows a single EVE P-150 UV product (the “master”) to control the actions of one or more EVE P-150 UV products (the “slaves”) without the need of a DMX controller or DMX cables. The master (transmitter) product will be set to operate in Stand-Alone mode, while the slave (receiver) products will be set to operate in Slave mode. -
Page 13: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. EVE P-150 UV User Manual Rev. 1 Page 11 of 14... -
Page 14: Technical Specifications
Maximum External Temperature Cooling System 104 °F (40 °C) Convection I/O Connector Channel Range 3-pin XLR 1 or 5 Ordering Product Name Item Code UPC Number EVE P-150 UV 03031447 781462217952 Page 12 of 14 EVE P-150 UV User Manual Rev. 1... -
Page 15: Returns
Send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box. -
Page 16: Contact Us
Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details. Page 14 of 14 EVE P-150 UV User Manual Rev. 1...
