- Page 1 User’s Manual HST 300 Junior + 2.0 HST 300 Junior 2.0 Inliegende deutsche Fassung der Anleitung ist der Urtext, welchen inliegende Übersetzungen wiedergeben. The German version of the manual enclosed herein is the original copy, reflected in both translations herein.
-
Page 3: Table Of Contents
5.10 Using ViewWeld to View Welding Reports ....... 11 Entering Welding Parameters Manually (only for model version HST 300 Junior + 2.0) ......11 Manually Entering Welding Voltage and Time ......12 Entering the String of Numbers ..........12 Dedicated Welding Unit Information ........12 Displaying Characteristics of the Welding Unit ...... - Page 4 9.2.9 Heater Coil Error ................. 17 9.2.10 Power Supply Failure at Last Welding ........17 Technical Specifications .............. 18 Service and Repair Contact ............18 Accessories/Parts for the Product ..........18 HÜRNER HST 300 Junior + 2.0 User’s Manual Version April 2016...
-
Page 5: Introduction
Thank you very much for purchasing our product. We are confident that it will meet your expectations. The Welding Unit, in the model version HST 300 Junior + 2.0 and HST 300 Junior 2.0, is designed exclusively for welding plastic pipe fittings according to the electrofusion process. -
Page 6: Securing The Fitting And The Joint
2.8 General Remark Comply with the indications and instructions about prod- uct maintenance to ensure proper and safe work. Use only accessories and spare parts that are recommended or HÜRNER HST 300 Junior + 2.0 User’s Manual Version April 2016... -
Page 7: Power Supply Specifications
The working output power of the generator de- creases by about 10% per 1,000 m of altitude. During the welding process no other device con- Important nected to the same generator should be operated. Version April 2016 HÜRNER HST 300 Junior + 2.0 User’s Manual... -
Page 8: Service And Repair
Principles of Operation The HST 300 Junior + 2.0 and the HST 300 Junior 2.0 allow welding electrofusion fittings that feature a bar code. Every fitting is provided with a tag with one or two bar codes on it. -
Page 9: Check-Out And Operation
Terminals and push-on adapters should be considered consumables and, therefore, have to be checked before every welding operation and replaced if damaged or dirty. Version April 2016 HÜRNER HST 300 Junior + 2.0 User’s Manual... -
Page 10: Reading The Fitting Code With A Handheld Scanner
The welding process is monitored for its entire duration applying the welding parameters contained in the fitting code. The welding voltage, the resistance, and the weld- ing current are displayed in the lower line of the screen. HÜRNER HST 300 Junior + 2.0 User’s Manual Version April 2016... -
Page 11: End Of Welding
To call the ViewWeld abstract of a welding report, press the ñ key in the bar code input screen (see Display 2). Entering Welding Parameters Manually (only for model version HST 300 Junior + 2.0) MANUAL INPUT To be able to enter the welding parameters manually, you have first to connect the fitting to the welding unit with >Enter Voltage/Time... -
Page 12: Manually Entering Welding Voltage And Time
If the scheduled service is overdue, a service due message appears on the screen as soon as the unit is plugged into the mains or generator power supply. This message has to be acknowledged by pressing START/SET. HÜRNER HST 300 Junior + 2.0 User’s Manual Version April 2016... -
Page 13: Measuring Resistance
In the configuration menu, use the ñ and ò arrow keys to select the desired set-up option. Use the ð arrow key to toggle between “on” and “off” for that set-up option. Version April 2016 HÜRNER HST 300 Junior + 2.0 User’s Manual... -
Page 14: Selecting The Display Language
The time of day and the date can be set using the keypad. Display 10 The portions “Hour,” “Minute,” “Day,” “Month,” and “Year” are set separately. Press the START/SET key to con- firm your settings. HÜRNER HST 300 Junior + 2.0 User’s Manual Version April 2016... -
Page 15: Setting The Buzzer Volume
The input voltage is over 290 volts. Decrease generator output voltage. 9.1.5 Overheated The transformer temperature is too hot. Let the welding unit cool down for about 1 hour. Version April 2016 HÜRNER HST 300 Junior + 2.0 User’s Manual... -
Page 16: System Error
The input voltage is below 175 volts. If the error condition persists for longer than 15 seconds, the welding process will be aborted. If the voltage goes down below 170 volts, the welding process will abort immediately. HÜRNER HST 300 Junior + 2.0 User’s Manual Version April 2016... -
Page 17: Overvoltage
To go on using the unit, this error has to be acknowledged by pressing the STOP/RESET key (see also Sect. 7.4). Version April 2016 HÜRNER HST 300 Junior + 2.0 User’s Manual... -
Page 18: Technical Specifications
216 - 010 - 090 Push-on Elbow Adapter 4.7 - 4.7 90° 216 - 010 - 580 Adapter Bag 216 - 030 - 310 Welder/Operator ID Card 216 - 080 - 031 HÜRNER HST 300 Junior + 2.0 User’s Manual Version April 2016... - Page 19 KONFORMITÄTSERKLÄRUNG Declaration of Conformity Déclaration de conformité HÜRNER Schweißtechnik Wir / We / Nous Nieder-Ohmener Str. 26 D-35325 Mücke-Atzenhain erklären in alleiniger Verantwortung, dass das Produkt declare under our sole responsibility that the product déclarons sous notre seule responsabilité que le produit HÜRNER HST 300 Junior (+) 2.0 Schweißautomat zur Verarbeitung von Elektroschweiß-Fittings Welding Device for Processing Electrofusion Fittings...
Need help?
Do you have a question about the HST 300 Junior + 2.0 and is the answer not in the manual?
Questions and answers

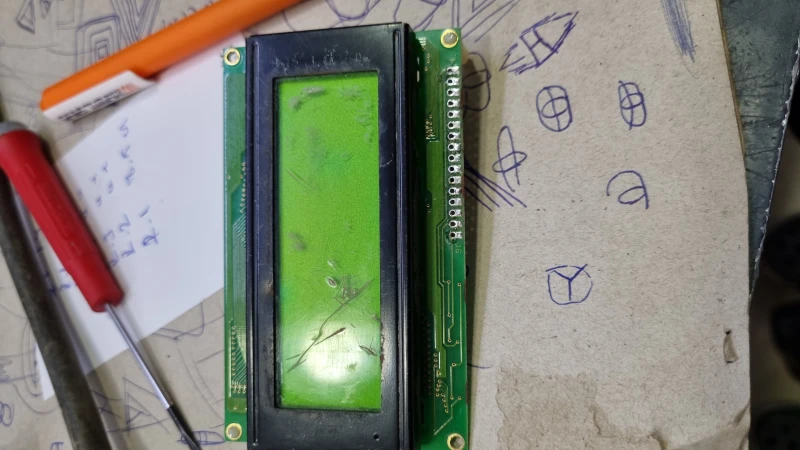

Cihaz 2008 model servis zamanı arızası veriyor bu konuda yardımcı olursanız sevinirim,ayrıca ekran ihtiyacım var.
