EK-Pro
GPU WB RTX 6000 – Ni + Inox

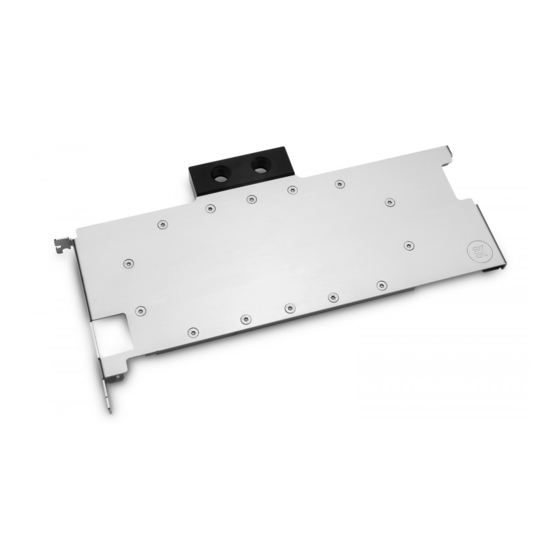

GPU WATER BLOCK
INSTALLATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-Pro GPU WB RTX 6000 – Ni + Inox and is the answer not in the manual?

Questions and answers

Related Manuals for ekwb EK-Pro GPU WB RTX 6000 – Ni + Inox

Summary of Contents for ekwb EK-Pro GPU WB RTX 6000 – Ni + Inox

  • Page 1 EK-Pro GPU WB RTX 6000 – Ni + Inox GPU WATER BLOCK INSTALLATION MANUAL...
  • Page 2 The following instructions are subject to change without notice. Please visit our website at www.ekwb.com for updates. Before the installation of this product, please read important notice, disclosure, and warranty conditions printed on the back of the box.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PREPARING THE GRAPHICS CARD REMOVING THE STOCK COOLER CLEANING THE PCB APPLYING THERMAL COMPOUND CUTTING THERMAL PADS PLACING THERMAL PADS ON PCB INSTALLING THE WATER BLOCK PLACING THE BLOCK ON THE GRAPHICS CARD ATTACHING THE BLOCK TO THE GRAPHICS CARD CHECKING FOR CONTACT INSTALLATION OF FITTINGS AND TUBING INSERTING THE GRAPHICS CARD IN THE PC CASE...

  • Page 4: Preparing The Graphics Card

    PREPARING THE GRAPHICS CARD STEP 1 REMOVING THE STOCK COOLER Remove all encircled screws using a Phillips head screwdriver. All heat sink assembly screws should be removed, including self-adhesive washers on both sides of the PCB (if present). After that, remove the I/O bracket.

  • Page 5: Applying Thermal Compound

    STEP 3 APPLYING THERMAL COMPOUND Lightly coat the GPU chip with enclosed EK-TIM Ectotherm thermal grease. For best performance, EK recommends applying thermal grease in the form of a cross (see sample image). STEP 3 STEP 4 CUTTING THERMAL PADS Thermal Pad F 1.0mm Your GPU water block comes with thermal pads that have to be cut into smaller pieces to cover all the VRM components.

  • Page 6: Installing The Water Block

    INSTALLING THE WATER BLOCK STEP 1 PLACING THE BLOCK ON THE GRAPHICS CARD Carefully position the water block with preinstalled standoffs on the graphics card. During this process, please make sure you have aligned mounting holes on the PCB with holes on the water block (same applies to other tops).

  • Page 7: Attaching The Block To The Graphics Card

    STEP 2 M2.5 x 6 ATTACHING THE BLOCK TO THE GRAPHICS CARD M2.5 x 4 Use a Phillips head screwdriver with the enclosed M2.5X4 and M2.5X6 screws. EK recommends you start tightening the screws evenly, around the GPU core first, and then continuing outward to Plastic Washer prevent the damage to the GPU.

  • Page 8: Checking For Contact

    Then repeat Steps from the previous section to re-attach the block. In case you fail to obtain good contact, please check again or contact our support service at www.ekwb.com/support. STEP 4 INSTALLATION OF FITTINGS AND TUBING Screw-in two (2) G1/4 threaded male fittings.

  • Page 9: Inserting The Graphics Card In The Pc Case

    STEP 5 INSERTING THE GRAPHICS CARD IN THE PC CASE Carefully lift your graphics card with the installed water block and insert it into your PC’s motherboard PCIexpress expansion slot. Please bear in mind that your graphics card is very likely heavier than before it was equipped with the water block.

  • Page 10: Support And Service

    SUPPORT AND SERVICE In case you need assistance, please contact: http://support.ekwb.com/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
