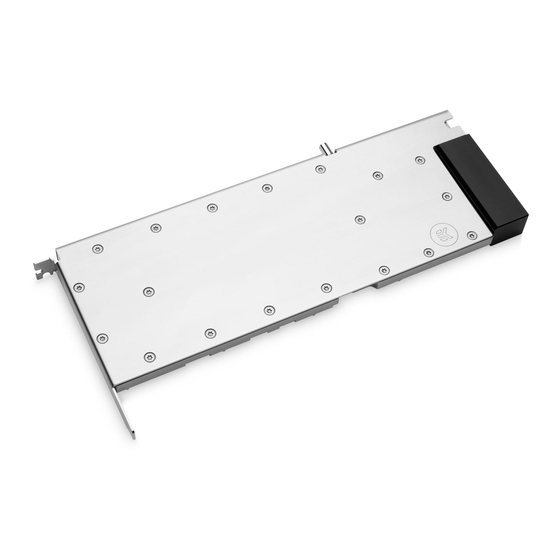

EK-PRO
GPU WB RTX A100
GPU WATER BLOCK
USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EK-PRO GPU WB RTX A100 and is the answer not in the manual?

Questions and answers

Related Manuals for ekwb EK-PRO GPU WB RTX A100

Summary of Contents for ekwb EK-PRO GPU WB RTX A100

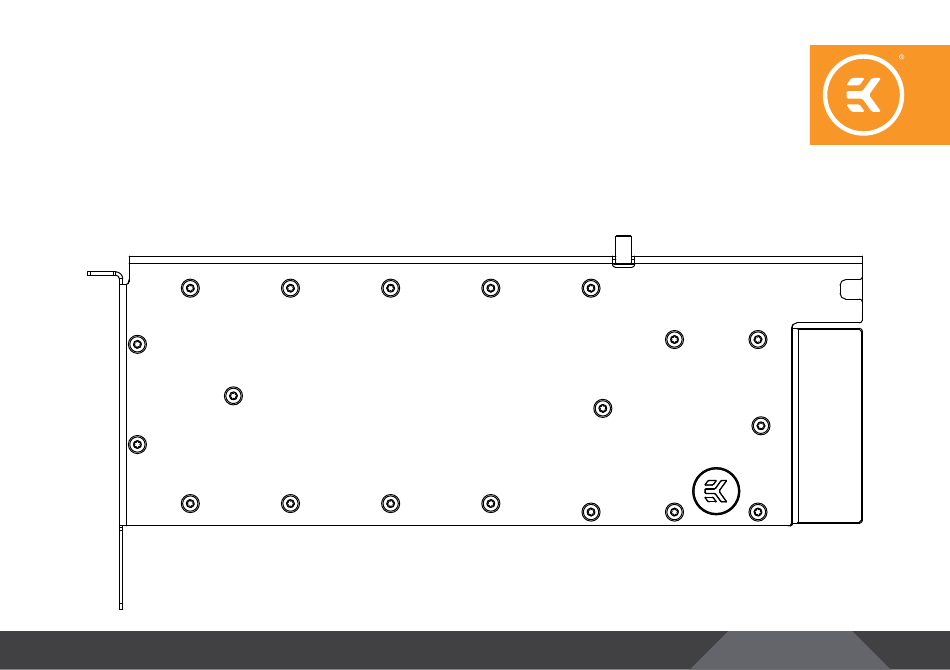

  • Page 1 EK-PRO GPU WB RTX A100 GPU WATER BLOCK USER GUIDE...
  • Page 2 Before you start using this product, please follow these basic guidelines: Carefully read the manual before beginning with the installation process. Remove your graphics card from the computer for the safest mounting process to prevent any possible damage to your GPU or its circuit board (PCB).

  • Page 3: Table Of Contents

    TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS PREPARING YOUR GRAPHICS CARD REMOVING THE STOCK COOLER CLEANING THE PCB CUTTING AND PLACING THERMAL PADS APPLYING THERMAL COMPOUND INSTALLING THE WATER BLOCK PLACING THE BLOCK ON THE GRAPHICS CARD ATTACHING THE WATER BLOCK CHECKING THE CONTACT IN CASE OF HIGH TEMPERATURES INSERTING THE GRAPHICS CARD INTO THE CHASSIS...

  • Page 4: Box Contents

    BOX CONTENTS Washer POLYAMID M2.5 0.7mm Screw UNC 6/32x5 (1x) 8483 with self-adhesive tape (2x) 8627 EK-Pro GPU WB RTX A100 Ni +Inox (1x) Thermal PAD G 1.0mm - (120x24mm) 3831109847961 (2x) 3830046996770 EK-TIM Ectotherm (1g) (1x) 3830046998446 Screw M2.5x8 ax1 (2x) 8104A Thermal PAD F 1.0mm - (120x16mm)

  • Page 5: Water Block Dimensions

    WATER BLOCK DIMENSIONS 13.6 mm 267 mm 19.5 mm 278.4 mm - 5 -...

  • Page 6: Technical Specifications And Water Block Parts

    TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS Position EAN Description Quantity 103704 055 - copper - RTX A100 Pro coldplate (Ni) 103716 055 - top acetal - A100 insert 5028 OR 5x1,5 NBR70 5196 OR 180x2 103090 Screw M3x6 ISO 14581 - TX-INOX 100845 Spacer M4/M2.5x2.5 - HEX 103767...

  • Page 7: Preparing Your Graphics Card

    PREPARING YOUR GRAPHICS CARD STEP 1 REMOVING THE STOCK COOLER Place your graphics card on the flat surface and carefully remove the stock cooler. Do not forget to unplug all the LED and fan connectors. Pay attention to the following steps in order to install the EK-Pro GPU RTX A100 water block onto the graphics card.

  • Page 8: Cutting And Placing Thermal Pads

    CUTTING AND PLACING THERMAL PADS Your GPU water block comes with un-cuted thermal pads to cover all the VRM components, such as COILs, MOSFETs, and drivers. Please Thermal Pad F 1.0 mm use 1,0mm thick thermal pads which should be placed on the water block, as illustrated below.

  • Page 9: Installing The Water Block

    INSTALLING THE WATER BLOCK STEP 1 PLACING THE BLOCK ON THE GRAPHICS CARD This procedure is the same for all full-cover water blocks. Carefully position the water block with preinstalled standoffs on the graphics card. During this process, make sure you have aligned mounting holes of the PCB with holes of the water block.
  • Page 10 STEP 3 Use stock cross backplate from the original card and mount it with original stock M3 screws. STEP 3 STEP 4 Secure power cable with mounting it into included inox power adapter. STEP 4a Stick the two included plastics pads (M3) on to inox power addapter as shown on picture.

  • Page 11: Checking The Contact In Case Of High Temperatures

    Then repeat Steps from the previous section to re-attach the block. In case you fail to obtain good contact, please check again or contact our support service at https://www.ekwb.com/customer-support/. - 11 -...

  • Page 12: Inserting The Graphics Card Into The Chassis

    INSERTING THE GRAPHICS CARD INTO THE CHASSIS Carefully lift your graphics card with the installed water block and insert it into your PC’s motherboard PCI express expansion slot. Please keep in mind that your graphics card is heavier than before it was equipped with the water block.

  • Page 13: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
