ekwb EK-FB ASUS Z 170S Monoblock Installation Manual

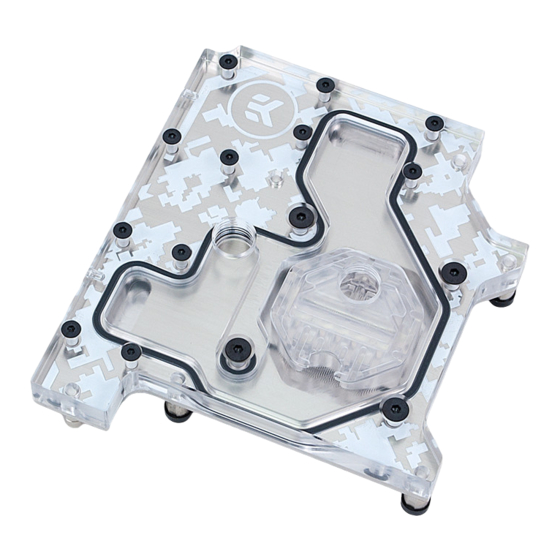

Installation manual for EK-FB ASUS Z 170S Monoblock water block
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no
liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard's circuit board (PCB).
3. The EK-HFB and EK-ACF type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets.
4. The use of quality, market proved corrosion inhibiting coolants is always strongly recommended for any liquid cooling system.

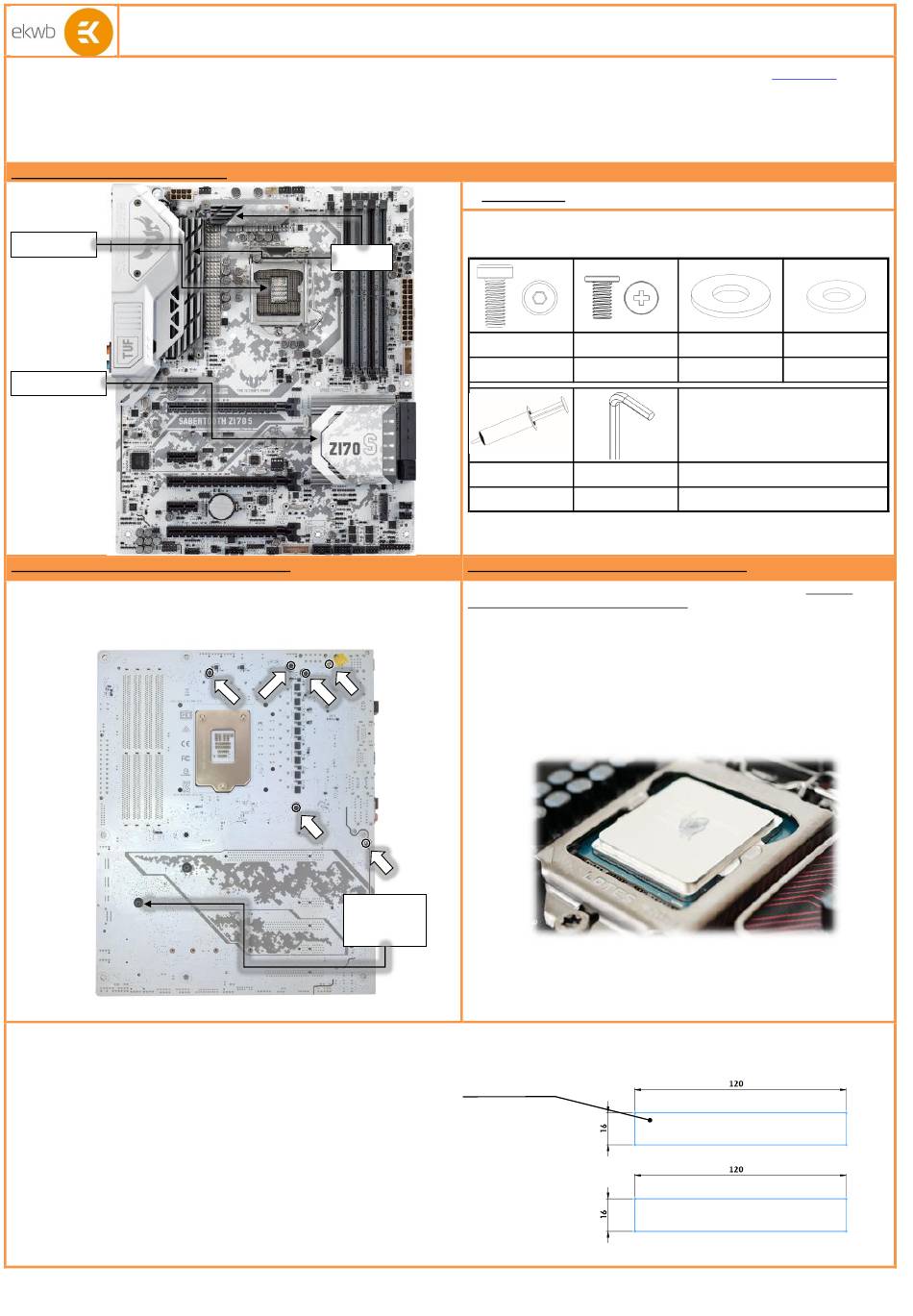

STEP 1: GENERAL INFORMATION Sample photo of ASUS Sabertooth Z170 S motherboard
CPU socket
Z170 PCH (SB)
STEP 1: PREPARING YOUR MOTHERBOARD
REMOVING STOCK COOLER.
Remove all encircled screws. There are 4 screws on
the back of the motherboard that need to be removed in order to remove the factory
installed MOSFET heat pipe cooling solution. Additional 2 screws need to be removed
to remove the plastic I/O . Please store the removed material away for later use.
2.. CUTTING THERMAL PADS.
motherboard's circuit board. WARNING: DIMENSIONS ON PICTURES BELOW ARE SCALED.
Replacement thermal pads @ EKWB web shop:
Thermal PAD F 1mm - (120x16mm)[EAN: 3830046996732]
All disclosures, notices and warranty conditions are being written on EKWB web page. Please check terms of use. Thermal PAD F 0.5mm - (120x16mm)[EAN: 3830046996725]
Mosfets
Do not remove
the PCH (SB)
Cooler!
Your block comes with thermal pads which needs to be trimmed in order to fit the voltage regulation area (MOSFET) on the
BAG CONTENT:
Bag content is universal for all water blocks, you may not need all screws.
M4x8 DIN7984
5pcs
Thermal grease
1pc
STEP 2: PREPARING YOUR MOTHERBOARD
1. APPLYING THERMAL COMPOUND. Apply thermal compound on CPU heat
spreader (IHS) - see sample photo on right with enclosed EK-TIM Ectotherm
thermal grease.
The quantity of about two rice grains is just about right. There is no need to cover
the whole IHS. Applying too much thermal grease will have negative impact on
the cooling performance!
1. Thermal pad F– 1.0mm
(for mosfets):
M2.5x5 AX1 M4 PVC washer
5pcs 5pc
Intentionaly left blank
2,5mm Allen key
1pc
Revision 1.1. Published on July 18
www.ekwb.com for updates.
M2.5 PVC washer
10pcs
th
2016
