ekwb EK-DCP 4.0 X-RES Installation And Mounting Manuals

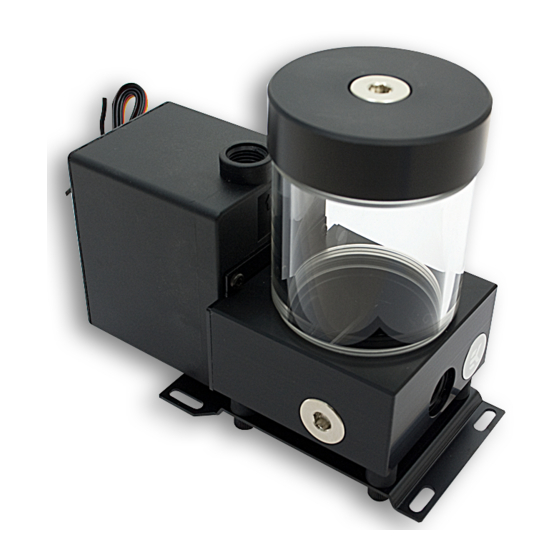

Installation and mounting manual for EK-DCP 4.0 X-RES Reservoir/Pump Combo
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. The EK High Flow and EK-PSC or EK-CSQ type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber O-ring gaskets.
3. The use of quality, market proved corrosion inhibiting coolants is strongly recommended for any liquid cooling system.

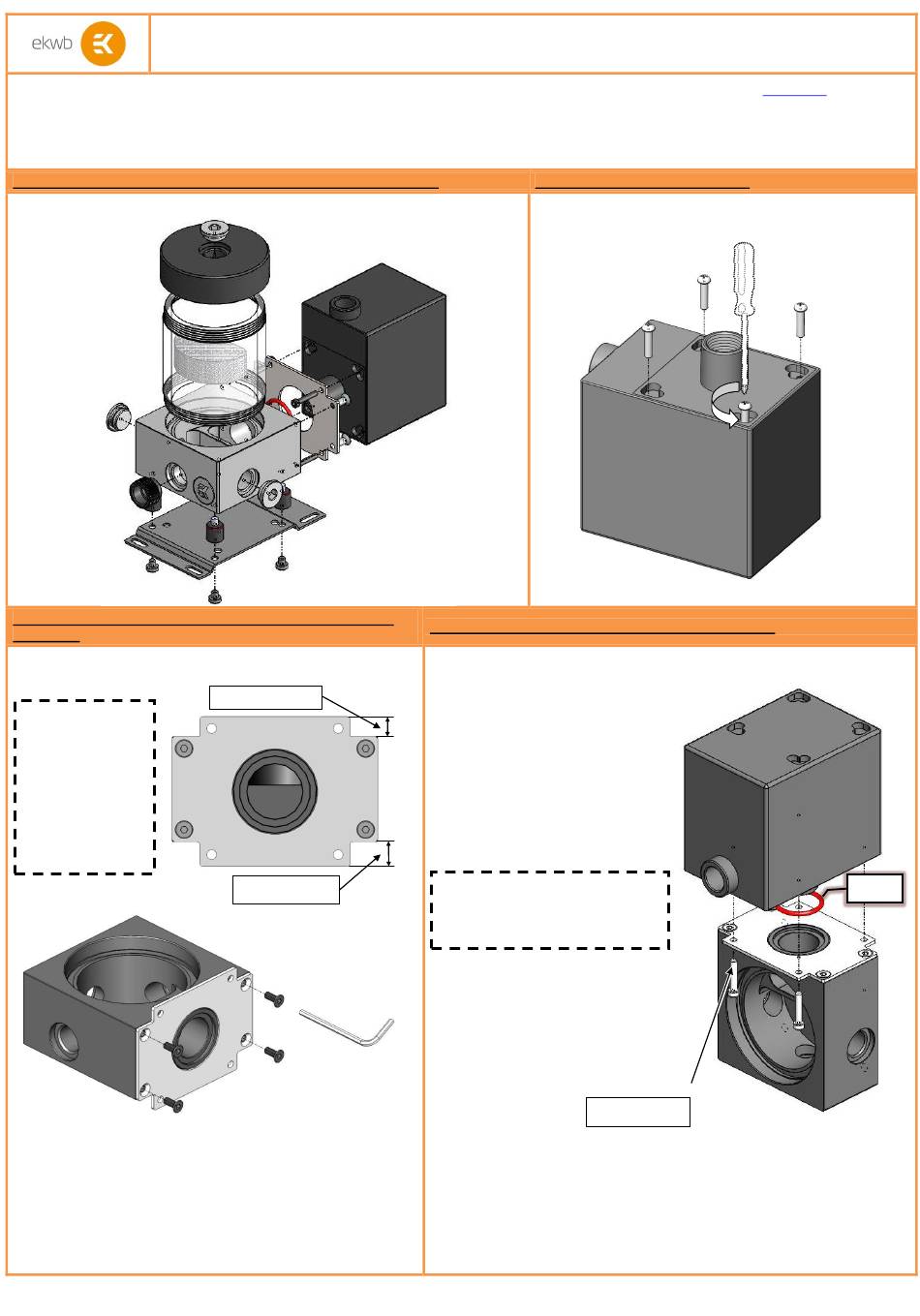

GENERAL INFORMATION: Exploded view of EK-DCP 4.0 X-RES
STEP 2: ATTACHING THE INTERCONNECTING PLATE TO
THE BASE
Use four enclosed M3x8 DIN 7991 countersunk screws and attach the
interconnecting metal plate to the base with enclosed Allen key 2mm.
ATTENTION!
Pay special attention
to orientation of the
interconnecting metal
plate.
The screws head
must be aligned
(flushed) with the
metal plate.
Smaller distance
Bigger distance
STEP 1: PREPARING THE PUMP
Unscrew the original M3 screws with Philips head screwdriver and
store them in a safe place. These screws will not be needed any
more.
STEP 3: CONNECTING THE PUMP AND RESERVOIR
In order to connect the reservoir and the
pump please follow these steps:
1) Install the provided gasket (O-ring
19 x 2 mm) into the milled groove as
shown on the picture below. Failing
to do this will cause serious leakage.
2) Use four enclosed M3x8 DIN 7991
(countersunk) screws and attach
pump to the reservoir with enclosed
Allen key 2 mm.
ATTENTION/CAUTION !
Be extremely careful not to over tighten the
M3 screws. Doing this may strip the thread and
render product useless.
TROUBLESHOOTING:
- If the threaded holes do not align
please re-check STEP 2 in the
manual.
- If the screw head does not
align (flush) with the metal
plate please re-check STEP 2 in
manual.
M3 x 16 screws
www.ekwb.com
nd
Revision 1.0 Released on 2 of October, 2013.
for updates. Before
O-ring
