About Smart Scan - Auto Diagnostic Tool
The Tool retrieves Diagnostic Trouble Codes (DTCs) from the vehicle's computer
modules.
Once the diagnostic codes has been retrieved from the vehicle's computer modules,
you can:
• View the findings.
• Erase the DTCs from the vehicle's computer modules.
• Run diagnostics again by rescanning the vehicle's computer modules.
• Operate the Tool on battery power.

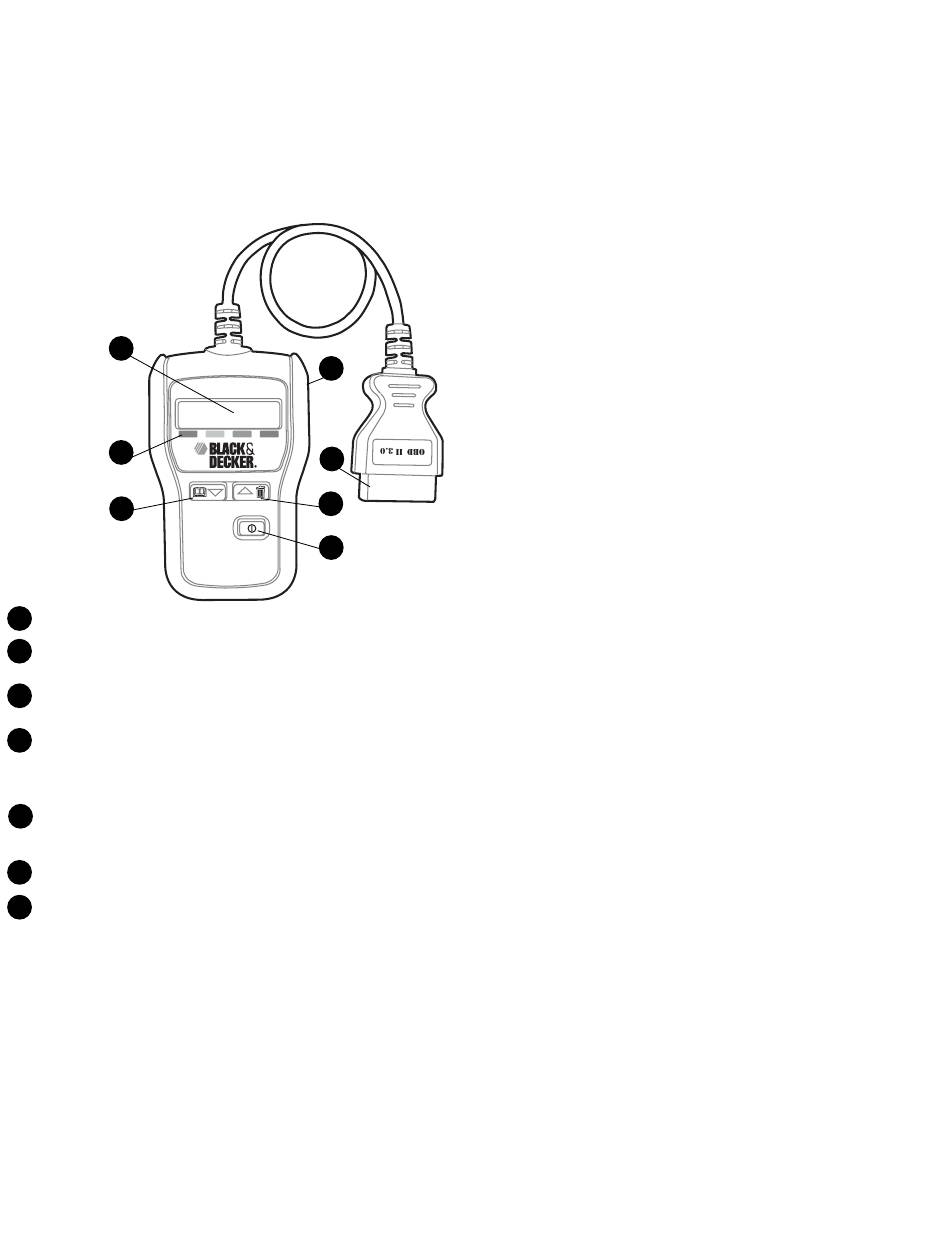

FUNCTIONAL DESCRIPTION

1
2
3
Display - Dual-line LCD display with 8 characters.
1
Urgency Rating Indicators - Shows the Urgency Rating associated with the
2
DTC on the Display.
READ/Scroll Down Key - To view the next DTC or to rescan the vehicle's
3
computer modules for the latest DTCs.
USB Port - Used to update the Tool's software. The USB cable is not
4
included but can be purchased at a local computer retailer. The Tool uses a
USB cable with an A connector on one end and a mini-B connector on the
other end.
OBD II Connector - Used to communicate with OBD II compliant vehicles by
5
plugging into the vehicle's Data Link Connector usually located under the
dash on the driver's side.
ERASE/Scroll Up Key - To review previously viewed DTCs or to erase DTCs.
6
Power On/Off Key - Turns Tool on to review results away from the vehicle
7
(batteries required).
4
5
6
7
4
