TABLE OF CONTENTS Important Safety Information…...2 Features & Specifications.…………………….……………..3 Cellar Construction…………………………….……………..6 Installer’s Instruction…………….…..….……..……………..7 Electrical Wiring………..……….…..….……..……………..14 Temperature Control & Humidity Adjustment….……….16 Care Guide…………………………………………………….19 User’ Troubleshooting…….………………………………...20 Customer Support……………………………………………23 Warranty……………………………………………………….24 - 1 -...
• Wine-Mate split cooling systems VINO1500SSW and 2500SSW are designed and used to provide a cold temperature between 50~65 properly insulated wine room at a normal environment. • The wine room will maintain humidity of 50~70% RH even when the environment becomes dry and humid.
Page 5

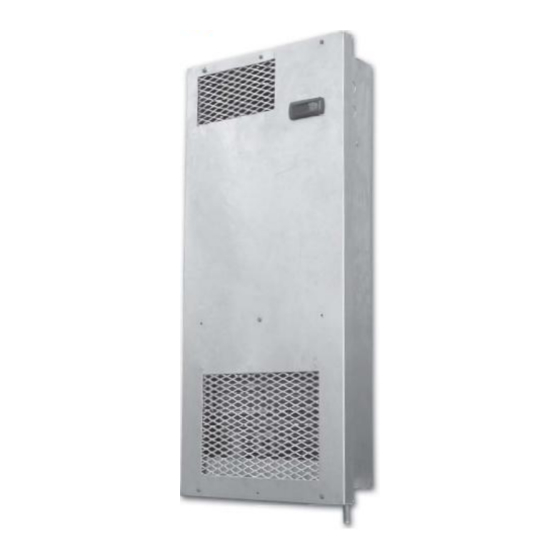

Parts included: Condensing Unit (discharge and suction valves installed) + Liquid Filter + Liquid Indicator Evaporator Unit (liquid line solenoid valve and expansion valve installed) Temperature Controller + Air Sensor Fig. 1 WM15~25SFCW Evaporator Unit - 4 -...
Cellar Construction This is only a guide and shall be considered as minimum requirements. All interior walls and floors shall have a vapor barrier and a minimum of R11 insulation. All exterior walls and ceiling shall have a vapor barrier and a minimum of R19 insulation.
WINE-MATE split system is shipped as components and is ready for use only after a certified refrigeration technician has properly installed, evacuated, charged and tested the system. Proper installation is critical. Vinotemp can only warrant the quality of the components. The installation and proper operation of the system must be warranted by the installer.
Page 9
2. Discharge/Suction Valve Operation (Condensing unit) Back Position: Normal operation, process and manometer port closed Front Position: Liquid/suction line connection closed Middle Position: All ports open for evacuation, charge and manometer reading BACK POSITION Fig. 5 ROTALOCK Valve Operation BACK POSITION Fig.
Page 10
4. Air Sensor • The air sensor can be located in the wine room 5 ft above the floor or the return air area, but not the supply air area or air dead area. • If the temperature controller is mounted outside the wine room but the air sensor is located inside the wine room, use 18 gauge wires to extend the air sensor if needed.
Page 11
Fig. 7 Fan Speed Control 6) The subcooling at the condensing unit shall be around 10 may be complete when there are no more bubbles forming in the liquid indicator. 7) Head pressure range: 125 ~ 150 psig at 70 ~ 90 ambient temperature.
Page 12
The line sizes and refrigerant charges are listed as follows. REFRIGERATION MODEL LINES VINO- <= 50 FT 1500SSW VINO- <= 50 FT 2500SSW Use of the adjustable pressure control (if applicable for pump-down) Suction pressure setting: Cut out=5 psig; Cut in=25 psig; Differential=20 psig Head pressure setting: Cut out=230 psig;...
Page 13
Use of the encapsulated low pressure control (if applicable) Fixed suction pressure setting: Cut in = 32 psig; Cut out = 10 psig Fig. 11 Fixed Pressure Control Use of the condenser fan control (if applicable for low ambient kit) Head pressure setting: Cut in=170 psig;...
Page 14
Low suction pressure and low head pressure Normal to high superheat and low subcooling Low suction pressure and low head pressure Low superheat and low subcooling k. Low suction pressure and low to normal head pressure High superheat and normal to high subcooling Low suction pressure and normal head pressure High superheat and normal subcooling m.
CAUTION: • USE MINIMUM 14 GAUGE WIRES FOR POWER INES • IF EQUIPPED WITH LOW AMBIENT CONDITION KIT, USE LOW AMBIENT TEMPERATURE WIRING DIAGRAMS. BEFORE POWER THE CONDENSING UNIT. ONLY TURN ON THE COMPRESSOR AFTER THE CONDENSING UNIT HAS BEEN POWERED FOR 24 HOURS.
Temperature Control & Humidity Adjustment 1. Temperature Setting • Set the temperature at 55 • On initial start-up, the time required to reach the desired temperature will vary, depending on the quantity of bottles, temperature setting and surrounding temperature. • Allow 24 hours to stabilize the temperature for each new temperature setting operation 2.
Page 18
2.1 LED Functions MODE Flashing Flashing Flashing 3) Alarm Signals 3.1 Code Description MESSAGE CAUSE Temperature probe faulty High temperature alarm Low temperature alarm External alarm 3.2 Alarm Recovery Probe alarms P1”, start a few seconds after the fault in the related probe; they automatically stop a few seconds after the probe restarts normal operation.
Page 19
5) Parameter Programming 1. Press the SET + keys for 3 sec until the “°C” or “°F” LED starts blinking, then release the keys. 2. Press again the SET + displayed, then release the keys. The first parameter Hy will be displayed. 3.
In general, always unplug system or disconnect power while doing care. 1. Coil Cleaning • Clean the condenser coil regularly. Coil may need to be cleaned at least every 6 months. • Unplug the system or disconnect power. • Use a vacuum cleaner with an extended attachment to clean the coil when it is dusty or dirty.
User’s Troubleshooting This Troubleshooting Chart is not prepared to replace the training required for a professional refrigeration service person, not is it comprehensive Complaint Possible Causes a. No power 1.Unit not b. Power cord unplugged running c. Setting higher than ambient temperature d.
Page 22
temperature c. Ambient temperature too high d. Exhaust restricted too high and running continually e. Malfunctioning fans Improper condenser airflow g. Dirty Condenser h. Iced evaporator Sealed system problem Undercharge or overcharge a. Improper room insulation & seal 6.Unit running too long b.
Page 23
10.Noisy a. Mounting area not firm b. Loose parts operation c. Compressor overloaded due to high ambient temperatures or airflow restriction d. Malfunctioning components a. Add support to improve installation b. Check fans, cabinet washers, tubing contact and loose screws. c.
Customer Support If you still have problems, please contact us at: Vinotemp International 17631 South Susana Road Rancho Dominguez, CA 90221 Tel: (310) 886-3332 Fax: (310) 886-3310 Email: info@vinotemp.com - 23 -...
BTU/H. While every effort has been made to provide accurate guidelines, VINOTEMP can not warranty its units to cool a particular enclosure. In case of failure, VINOTEMP cooling units must be repaired by the factory or its authorized agent. Repairs or modifications made by anyone else will void the warranty.
Page 26
VINOTEMP will, at its discretion, repair or replace the unit and return it free of charge to the original retail customer. If the unit is found to be in good working order, or beyond the initial twelve month period, it will be returned freight collect.
