Summary of Contents for Ursalink UG85

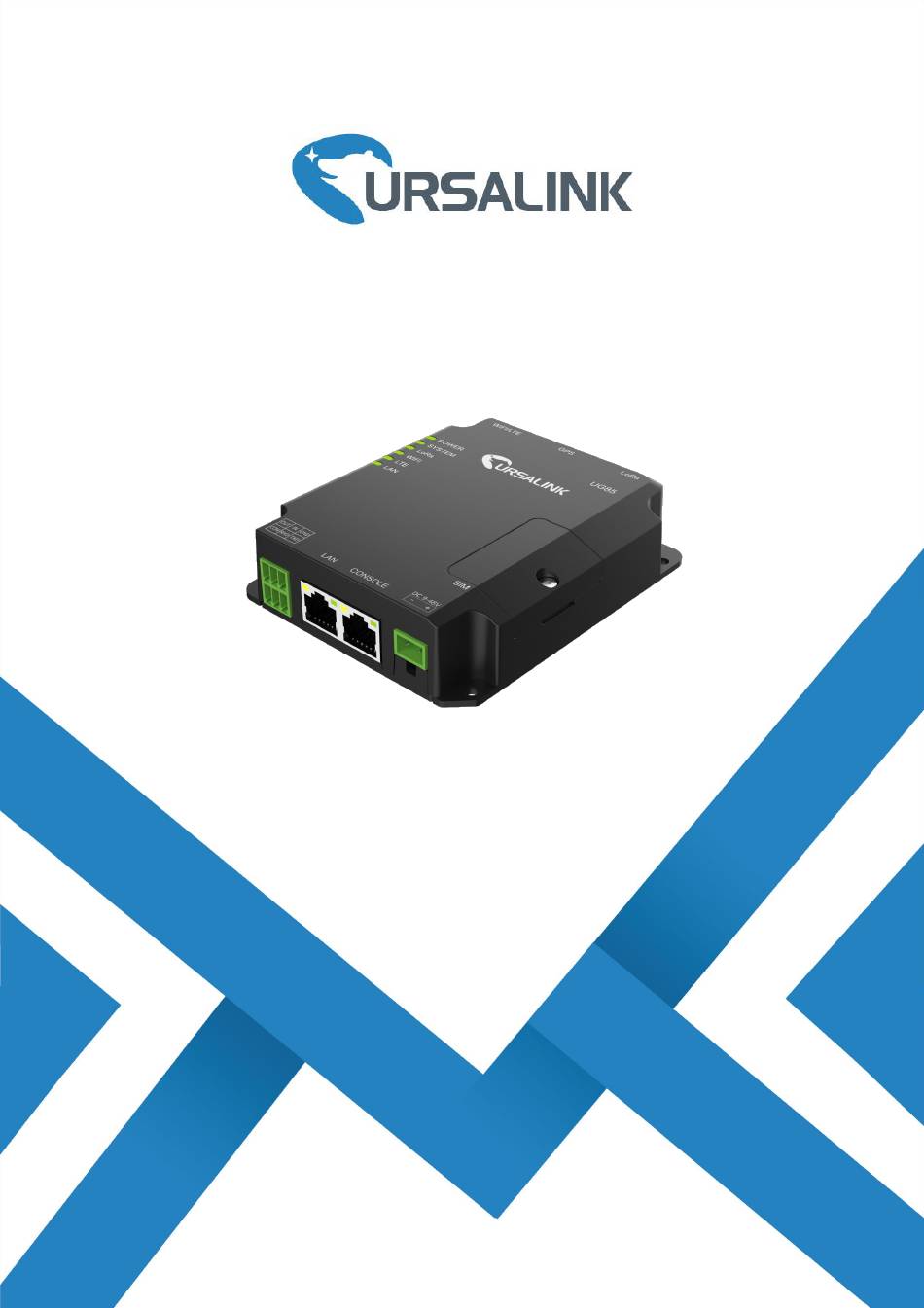

- Page 1 UG85 LoRaWAN Gateway Quick Start Guide Ursalink Technology Co., Ltd.
- Page 2 Thank you for choosing Ursalink UG85 LoRaWAN Gateway. This guide teaches you how to install the UG85 and how to log in the web GUI to configure the device. Once you complete the installation, refer to the Ursalink UG85 User Guide for instructions on how to perform configurations on the device.
-
Page 3: Table Of Contents
3.5 Power Supply Installation........................9 4. Access the Web GUI of UG85.........................10 4.1 PC Configuration..........................10 4.2 Log in the Web GUI of UG85........................ 11 5. Connect UG85 to the Netowork........................13 5.1 Configure the WAN Connection......................13 5.2 Configure the Cellular Connection.......................13 5.3 Configure the Wi-Fi Connection......................15... -
Page 4: Packing List
Ursalink UG85 Quick Start Guide 1. Packing List Before you begin to install the UG85 LoRaWAN Gateway, please check the package contents to verify that you have received the items below. 1 × Stubby LoRa 1 × UG85 1 × Ethernet Cable 1 ×... -
Page 5: Hardware Introduction
Ursalink UG85 Quick Start Guide 2. Hardware Introduction 2.1 Overview Front Panel WIFI/LTE Antenna GPS Antenna LoRa Antenna LED Indicator Area POWER: Power Indicator SYSTEM: Status Indicator LORA：LoRa Indicator WIFI: WIFI Indicator LTE: Cellular Status Indicator LAN: Ethernet Port Status Indicator Serial Port &... -
Page 6: Pinouts
Ursalink UG85 Quick Start Guide 2.3 Pinouts RS232 Description Digital Output Digital Input Ground Common Ground Receive Data Transmit Data Description Positive Negative 2.4 LED Indicators Indication Status Description The power is switched on POWER Power Status The power is switched off... -
Page 7: Reset Button
Ursalink UG85 Quick Start Guide 2.5 Reset Button Description Function SYSTEM LED Action Blinking Press and hold the reset button for more than 5 seconds. Static Green → Release the button and wait. Reset Rapidly Blinking Off → Blinking The gateway is now reset to factory default. -
Page 8: Hardware Introduction
Ursalink UG85 Quick Start Guide 3. Hardware Introduction Environmental Requirements - Power Input: 9-48 VDC - Power Consumption: Typical 3.3W (Max 6.4 W) - Operating Temperature: -40°C to 70°C (-40°F -158°F) - Relative Humidity: 0% to 95% (non-condensing) at 25°C/77°F 3.1 SIM Card Installation... -
Page 9: Ethernet Port Connection
Ursalink UG85 Quick Start Guide 3.3 Ethernet Port Connection Connect LAN port of UG85 to computer or network devices. Please note that do not connect to console port. 3.4 Mount the gateway The gateway can be placed on a desktop or mounted to a wall or a DIN rail. -
Page 10: Power Supply Installation
Ursalink UG85 Quick Start Guide 3.5 Power Supply Installation A. Take out the terminal from the gateway and unscrew the bolt on terminal. B. Screw down the bolt after inserting power cable into the terminal. Connecting the Power Cable Color... -
Page 11: Access The Web Gui Of Ug85
Password: password 4.1 PC Configuration Please connect PC to LAN port of UG85 directly and configure a static IP address manually. The following steps are based on Windows 10 operating system for your reference. Click “Search Box” to search “Control Panel” on the Click “Control Panel”... -
Page 12: Log In The Web Gui Of Ug85
(Note: Remember to click “OK” to finish configuration.) 4.2 Log in the Web GUI of UG85 A. Open a Web browser on your PC (Chrome and IE are recommended), type in the IP address, and press Enter on your keyboard. - Page 13 Ursalink UG85 Quick Start Guide D. After you log in the Web GUI, you can view system information and perform configuration of the gateway. www.ursalink.com...
-
Page 14: Connect Ug85 To The Netowork
Ursalink UG85 Quick Start Guide 5. Connect UG85 to the Netowork This chapter explains how to connect the gateway to network via WAN connection, cellular or Wi-Fi. 5.1 Configure the WAN Connection A. Go to “Network”→ “Interface” → “Port” page to select the connection type and configure WAN information. - Page 15 Ursalink UG85 Quick Start Guide B. Enable SIM1. C. Choose relevant network type. “Auto”, “4G Only”, “3G Only” and “2G Only” are optional. D. Click “Save” and “Apply” for configuration to take effect. www.ursalink.com...
-
Page 16: Configure The Wi-Fi Connection
Ursalink UG85 Quick Start Guide UG85 has two cellular interfaces named SIM1 & SIM2. Only one cellular interface is active at one time. If both cellular interfaces are enabled, SIM1 interface takes precedence by default. E. Go to “Status” → “Cellular” page to view the status of the cellular connection. If it shows “Connected”, it means SIM1 has dialed up successfully. - Page 17 Ursalink UG85 Quick Start Guide C. Type the correct key of Wi-Fi. D. Go to “Status”→”WLAN” to check Wi-Fi status. If it shows “Connected”, it means gateway connects to Wi-Fi successfully. www.ursalink.com...
- Page 18 Ursalink UG85 Quick Start Guide www.ursalink.com...
-
Page 19: Packet Forwarder Configuration
Ursalink UG85 Quick Start Guide 6. Packet Forwarder Configuration UG85 has embedded multiple packet forwarders like TTN, Loriot and chirpstack. This chapter explains how to connect the gateway to third-party network servers. Make sure the gateway connects to the network as shown in Chapter A. - Page 20 D. Add the gateway in network server page. Take TTN for example, type and save the gateway EUI and other information when you connect via Semtech packet forwarder. After you add the gateway, TTN will show connection status. E. Go to “Traffic” page to view the data communication of UG85. www.ursalink.com...
-
Page 21: Connect Ug85 To Ursalink Cloud
Ursalink UG85 Quick Start Guide 7. Network Server Configuration UG85 can work as network server and transmit data to Ursalink Cloud or other platform via MQTT/HTTP/HTTPS. Make sure the gateway connects to the network as shown in Chapter 7.1 Connect UG85 to Ursalink Cloud A. -
Page 22: Connect Ug85 To Other Platform
D. Go to “Gateway” page and click “Add” to add a gateway. E. The gateway is online on Ursalink Cloud. 7.2 Connect UG85 to Other Platform A. Go to “Packet Forwarder” → “General” page to enable the “Ursalink” type server. www.ursalink.com... - Page 23 Ursalink UG85 Quick Start Guide B. Go to “Radios” page to configure the center frequency and channels. Note: the channel plan of the nodes and gateway need to be the same. C. Go to “Network Server” → “General” page to enable the network server mode.
- Page 24 Ursalink UG85 Quick Start Guide D. Go to “Network Server”→”Application” to add a new application. After saving the application, select HTTP, HTTPS or MQTT protocol and fill in correspond server information to send data to another server. E. Go to “Profiles” page to add a new profile for the device.
- Page 25 Ursalink UG85 Quick Start Guide F. Go to “Device” page and click “Add” to add LoRaWAN node devices. You can also click “Bulk Import” if many LoRaWAN nodes need to add. www.ursalink.com...
- Page 26 Ursalink UG85 Quick Start Guide Click “Template Download” to download template file and add LoRaWAN device information to this file. Application and deviceprofile should be the same as you created in web page. Import this file to add bulks of devices.
