Electronic Locking Drawer (Optional) - Enovate Medical ENCORE ECOFLEX Quick Start Manual

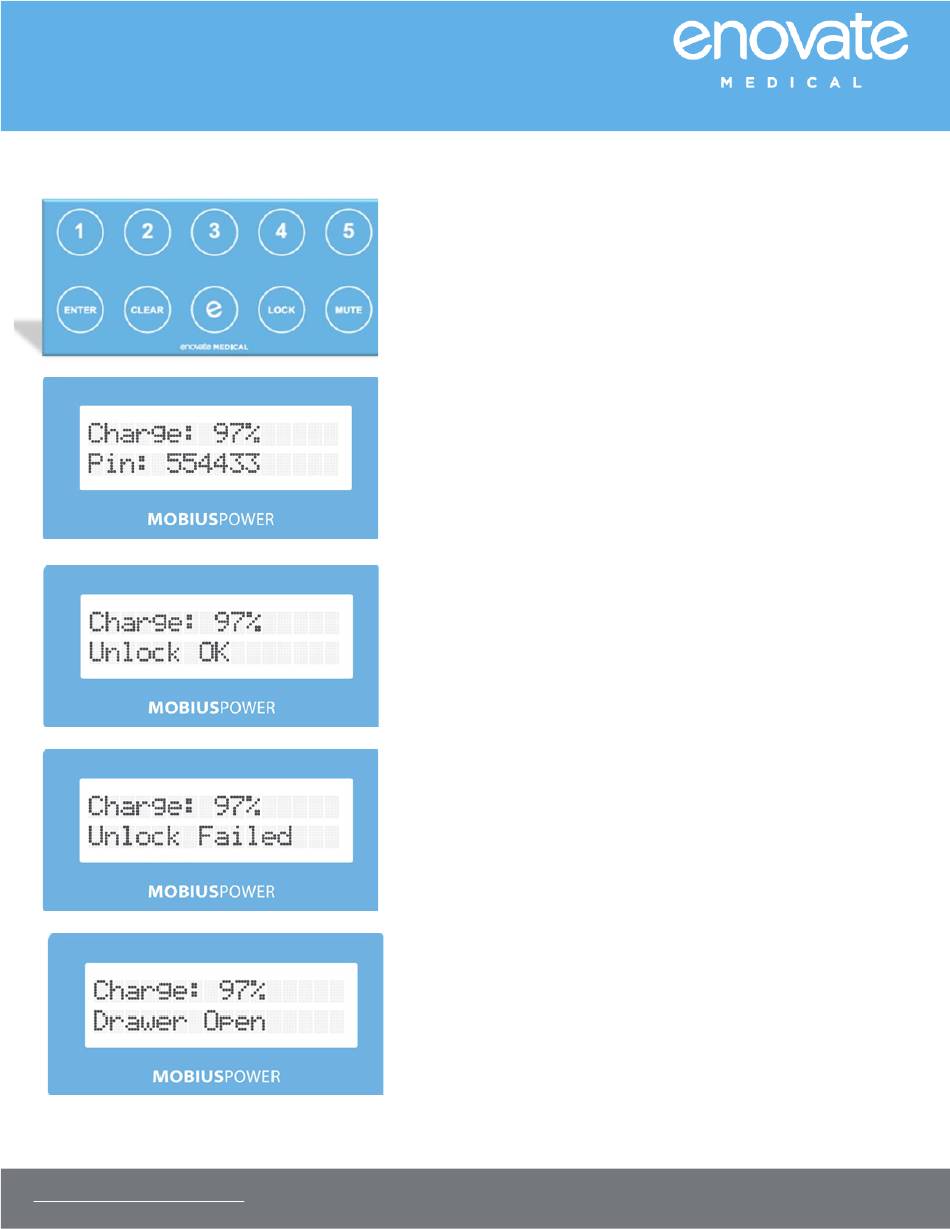

ELECTRONIC LOCKING DRAWER (OPTIONAL)

ELECTRONIC KEY PAD
WWW.ENOVATEMEDICA.COM
Please follow these instructions to open the workstation drawer if
your workstation is equipped with an electronic locking drawer.
1. Using the keypad, enter the assigned pin.
2. If you enter an incorrect number, you can press the "Clear"
button on the keypad to clear code one digit at a time.
3. If you entered the correct key combination, the LCD will state
"Unlock OK" and the drawer will open.
4. If you enter an incorrect key combination, the LCD will read
"Unlock Failed"
If the drawer remains open for longer than the preset time, the
workstation will emit an audible alert and the LCD will read
"Drawer Open"
To manually lock the drawer, ensure the drawer is closed, then press the
"Lock" button on the keypad To mute the Warning Alerts, press the
"Mute" button on the keypad.
Encore ecoflex quickstart guide QS009-Rev 001-5.5.20
8
