Summary of Contents for Enovate Medical MOBIUS POWER
- Page 1 QUICKSTART ESSENTIALS QS007-01...

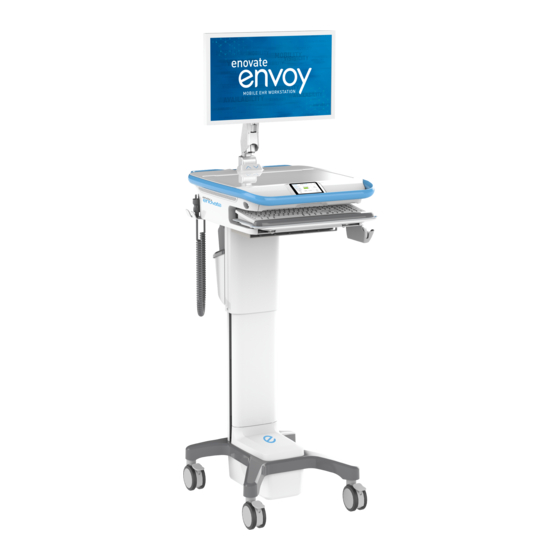

- Page 2 ENOVATE MEDICAL CART: QUICKSTART ESSENTIALS WORKSURFACE HEIGHT ADJUSTMENT Sit to Stand EON PHOSPHATE CONTROL PANEL GAS SPRING MODEL ACTUATOR MODEL For height adjustment pull lever on gas spring model or use UP/DOWN buttons on actuator model. GAS SPRING MODEL WARNING: WHEN CART TOP HAS REACHED MINIMUM OR MAXIMUM TRAVEL DISTANCE RELEASE THE UP/DOWN BUTTON.
-
Page 3: Monitor Adjustments
ENOVATE MEDICAL CART: QUICKSTART ESSENTIALS MONITOR ADJUSTMENTS 360° 30° 90° www.enovatemedical.com 07. 26. 17... - Page 4 ENOVATE MEDICAL CART: QUICKSTART ESSENTIALS SAFE MOBILITY TRACKING CASTER SAFELY AVOID OBSTACLES & POTENTIAL COLLISONS Simply turn your screen to see where you're going. Engage the tracking caster for even more steering control. Effortless and intuitive details go a long way when it comes to clinician safety.
- Page 5 ENOVATE MEDICAL CART: QUICKSTART ESSENTIALS KEYBOARD SYSTEM ADJUSTMENTS Rotate dial clockwise for positive-tilt. Rotate dial counterclockwise for negative-tilt -20° ERGONOMIC NEGATIVE TILT +10° AUTOMATIC LOCKING POSITIONS UNLOCK POSITION & STORE www.enovatemedical.com 07. 26. 17...
- Page 6 ENOVATE MEDICAL CART: QUICKSTART ESSENTIALS MEDICATION DRAWERS LED INDICATOR Green = Success Red = Incorrect with automated reset KEYPAD LOCK For demo purposes the combination to unlock all drawers: 5 - 4 - 3 - 2 - 1 UNLOCKING THE DRAWERS...
-
Page 7: Control Panel
Extra hardware, found in OPTIONAL ACCESSORIES, and compatible hardware are required for function. • Cart Power Button Not active with Mobius Power option. • Low Battery Alarm Mute Button Not active with Mobius Power option. www.enovatemedical.com 07. 26. 17... -
Page 8: Battery Fuel Gauge
ENOVATE MEDICAL CART: QUICKSTART ESSENTIALS BATTERY FUEL GAUGE Each Battery Pack has a “fuel gauge” to indicate charge level/capacity. • You may check a Battery Pack’s charge capacity at any time. • To check the remaining charge on a Battery Pack, press and release the white circle on the Battery Pack’s fuel gauge display. -
Page 9: Lcd Message Center
Once the Battery Pack charge capacity is depleted, the LCD Message Center will turn off. At this point, MOBIUS POWER, your computer and any other devices requiring power will shut down until the Battery Pack is replaced with a Fully Charged Battery Pack or the Battery Holster is plugged into an AC outlet using the optional Holster Charger. - Page 10 Holster Charger from the wall outlet and reading the ‘Time Remaining’ on the LCD, or use the LEDs on the Battery Pack. Please refer to next page for the explanation of how to read the LEDs on each individual MOBIUS POWER Battery Pack. www.enovatemedical.com 07. 26. 17...
- Page 11 Solid or blinking light To charge the Mobius Power Pack, remove the battery from the holster by pulling it out by the handle. Then place the Mobius battery in the charger with the bevel on the front of the battery aligned with the front of the charger bay.
