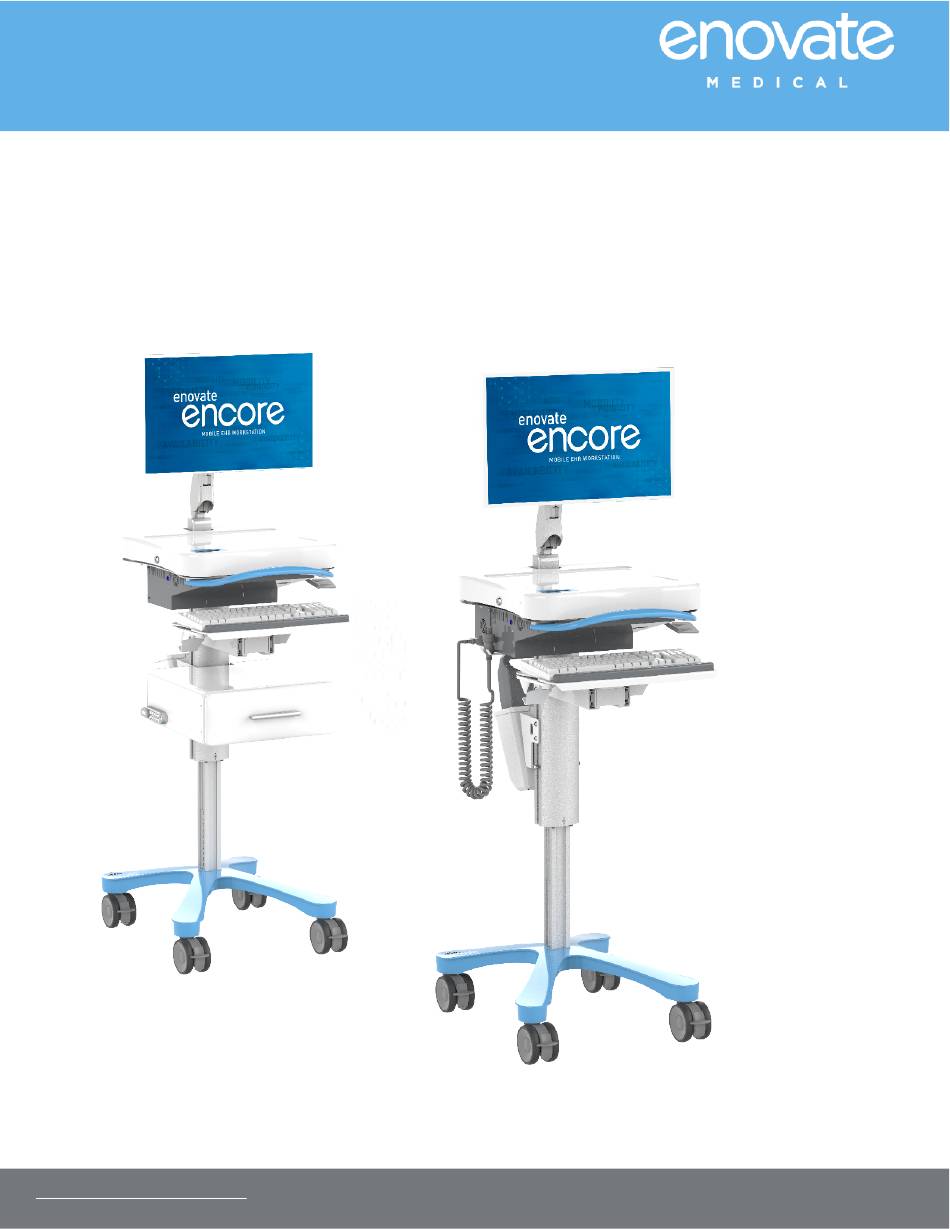

ENCORE ECOFLEX QUICKSTART GUIDE
WELCOME
The Enovate Medical Encore EcoFlex Mobile EHR Workstation was designed to set a new standard in quality. Enovate Medicals
goal is to provide a workstation that is built right, ready for years of use, and backed by a commitment of exemplary service
and support. Thank you for purchasing the Enovate Medical Encore EcoFlex Mobile EHR Workstation.
WWW.ENOVATEMEDICA.COM
Encore ecoflex quickstart guide QS009-Rev 001-5.5.20
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ENCORE ECOFLEX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enovate Medical ENCORE ECOFLEX

Summary of Contents for Enovate Medical ENCORE ECOFLEX

  • Page 1 WELCOME The Enovate Medical Encore EcoFlex Mobile EHR Workstation was designed to set a new standard in quality. Enovate Medicals goal is to provide a workstation that is built right, ready for years of use, and backed by a commitment of exemplary service and support.

  • Page 2: Table Of Contents

    CONTENTS WORKSTATION FEATURES POWERING ON THE WORKSTATION ONBOARD CHARGING ELECTRONIC LOCKING DRAWER (OPTIONAL) SIGHTLINE™ MONITOR ARM LOCKING CASTERS MOBIUSPOWER® SYSTEMS Encore ecoflex quickstart guide QS009-Rev 001-5.5.20 WWW.ENOVATEMEDICA.COM...

  • Page 3: Workstation Features

    Power On Indicator Left Work Surface Lock *MobiusPower® Battery Pack Left Side Mouse House *MobiusPower Battery Holster *Drawer *Medical Grade Curly Cord *Code Lock 4 x Locking Casters *OPTIONAL ITEM DEPENDENT UPON MODEL WWW.ENOVATEMEDICA.COM Encore ecoflex quickstart guide QS009-Rev 001-5.5.20...
  • Page 4 WORKSTATION FEATURES LCD Message Center Right Side Worksurface Lock Height Adjustment Lever Tilting Keyboard Left and Right Pull Out Mouse Pads Right Side Mouse House Encore ecoflex quickstart guide QS009-Rev 001-5.5.20 WWW.ENOVATEMEDICA.COM...

  • Page 5: Powering On The Workstation

    To begin, insert a fully charged MobiusPower Battery Pack or if your workstation is corded plug the cord in to an electrical outlet. The power on indicator will light up blue. Power on Indicator Light WWW.ENOVATEMEDICA.COM Encore ecoflex quickstart guide QS009-Rev 001-5.5.20...
  • Page 6 POWERING ON THE WORKSTATION As the Encore EcoFlex™ is powering on, you will see the following screens in sequence appear on the LCD Message Center Screen: Powering on System Version Number and System Version Date Power System Serial Number and Workstation IP Address...

  • Page 7: Onboard Charging

    ONBOARD CHARGING The Encore EcoFlex MobiusPower Plus can charge the Mobius battery while the battery is in the holster. To begin charging your Encore, plug the 3-prong power cable into a standard 110-120VAC grounded AC power outlet. You will observe the follow messages on the LCD when the AC cord is connected.

  • Page 8: Electronic Locking Drawer (Optional)

    LCD will read “Drawer Open” To manually lock the drawer, ensure the drawer is closed, then press the “Lock” button on the keypad To mute the Warning Alerts, press the “Mute” button on the keypad. Encore ecoflex quickstart guide QS009-Rev 001-5.5.20 WWW.ENOVATEMEDICA.COM...

  • Page 9: Sightline™ Monitor Arm

    SightLine Monitor Arm Positions for ergonomic comfort, enhanced patient engagement and safe travel. Extended Position Reclined Position Upright Position Monitor rotates 80 degrees. For safe travel, lower the Sightline Monitor Arm to the reclined position. WWW.ENOVATEMEDICA.COM Encore ecoflex quickstart guide QS009-Rev 001-5.5.20...

  • Page 10: Locking Casters

    LOCKING CASTERS Press down on caster to lock, push up to unlock. Press down to lock Push up to unlock Encore ecoflex quickstart guide QS009-Rev 001-5.5.20 WWW.ENOVATEMEDICA.COM...

  • Page 11: Mobiuspower® Systems

    The charge level is indicated in 25% increments by the number of status lights appearing between the • E-Empty and F-Full. After 3 seconds, the status lights will turn OFF. • Battery Fuel Level Display WWW.ENOVATEMEDICA.COM Encore ecoflex quickstart guide QS009-Rev 001-5.5.20...
  • Page 12 For additional information or questions regarding this product, please contact us at: 1-888-909-8930 Enovate Medical 1152 Park Avenue Murfreesboro, TN 37129 Encore ecoflex quickstart guide QS009-Rev 001-5.5.20 WWW.ENOVATEMEDICA.COM...
