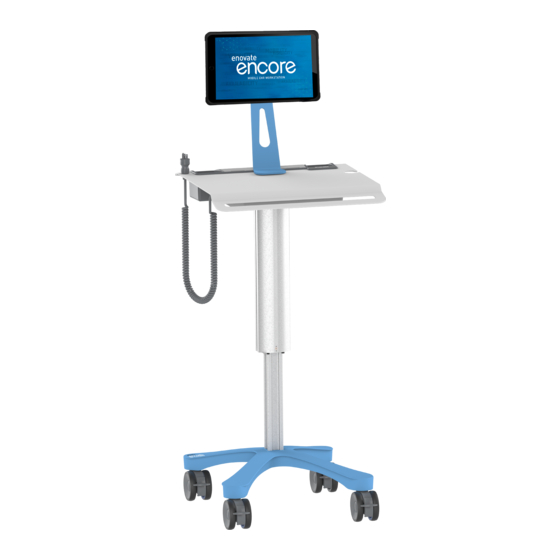

- Page 1 ENCORE LITE QUICKSTART GUIDE WWW.ENOVATEMEDICA.COM Encore Lite Quickstart Guide QS010-Rev 001-5.5.20...
-
Page 2: Table Of Contents
Contents WELCOME WORKSTATION FEATURES HEIGHT ADJUSTMENT NEMA RECEPTACLE AND ELECTRICAL CORD LAPTOP SECURITY BAR POWERING ON COIL CORD AND NEMA SPECIFICATIONS Encore Lite Quickstart Guide QS010-Rev 001-5.5.20 WWW.ENOVATEMEDICA.COM... -
Page 3: Welcome
Enovate Medicals goal is to provide a workstation that is built right, ready for years of use, and backed by a commitment of exemplary service and support. Thank you for purchasing the Enovate Medical Encore Lite Mobile EHR Workstation. WWW.ENOVATEMEDICA.COM... -
Page 4: Workstation Features
WORKSTATION FEATURES 22.00” STANDING POSITION 48.60” SITTING POSITION 31.OO” 22.80” LOCKING CASTERS Press down on brake to lock the casters, push up on brake to release. Encore Lite Quickstart Guide QS010-Rev 001-5.5.20 WWW.ENOVATEMEDICA.COM... -
Page 5: Height Adjustment
To adjust the height of your worksation lift up on the height adjustment lever to move the workstation up or down. REAR BIN STORAGE HEIGHT ADJUSTMENT LEVER Pictured in red for illustration purposes only WWW.ENOVATEMEDICA.COM Encore Lite Quickstart Guide QS010-Rev 001-5.5.20... -
Page 6: Nema Receptacle And Electrical Cord
NEMA RECEPTACLE AND ELECTRICAL CORD NEMA RECEPTACLE CORD HOLDER ELECTRICAL CORD Encore Lite Quickstart Guide QS010-Rev 001-5.5.20 WWW.ENOVATEMEDICA.COM... -
Page 7: Laptop Security Bar
LAPTOP SECURITY BAR BUILT IN BARCODE SCANNER BRACKET 19.00” 22.00” 17.00” PENTA BIT LAP TOP SECURITY BRACKET Use the supplied Penta bit to open the laptop security bracket WWW.ENOVATEMEDICA.COM Encore Lite Quickstart Guide QS010-Rev 001-5.5.20... -
Page 8: Powering On
POWERING ON To recharge laptop or power on, plug your workstation into an electrical outlet. Encore Lite Quickstart Guide QS010-Rev 001-5.5.20 WWW.ENOVATEMEDICA.COM... -
Page 9: Coil Cord And Nema Specifications
IEC 320 (C13) PLUG: 10(A) 125(V) APPROVAL: UL, C-UL NEMA RECEPTACLE SPECIFICATIONS: CABLE: SJTW 18AWG 3C 60°C (E90165) 300V APPROVAL: UL, CSA NEMA RECEPTACLES: WS-116-5 10(A) 125(V) APPROVAL: UL, C-UL IEC 320 (C14) PLUG: 10(A) 125(V) APPROVAL: UL, C-UL WWW.ENOVATEMEDICA.COM Encore Lite Quickstart Guide QS010-Rev 001-5.5.20... - Page 10 For additional information or questions regarding this product, please contact us at: 1-888-909-8930 Enovate Medical 1152 Park Avenue Murfreesboro, TN 37129 Encore Lite Quickstart Guide QS010-Rev 001-5.5.20 WWW.ENOVATEMEDICA.COM...
