Summary of Contents for Camsat CDS-LIFT IP

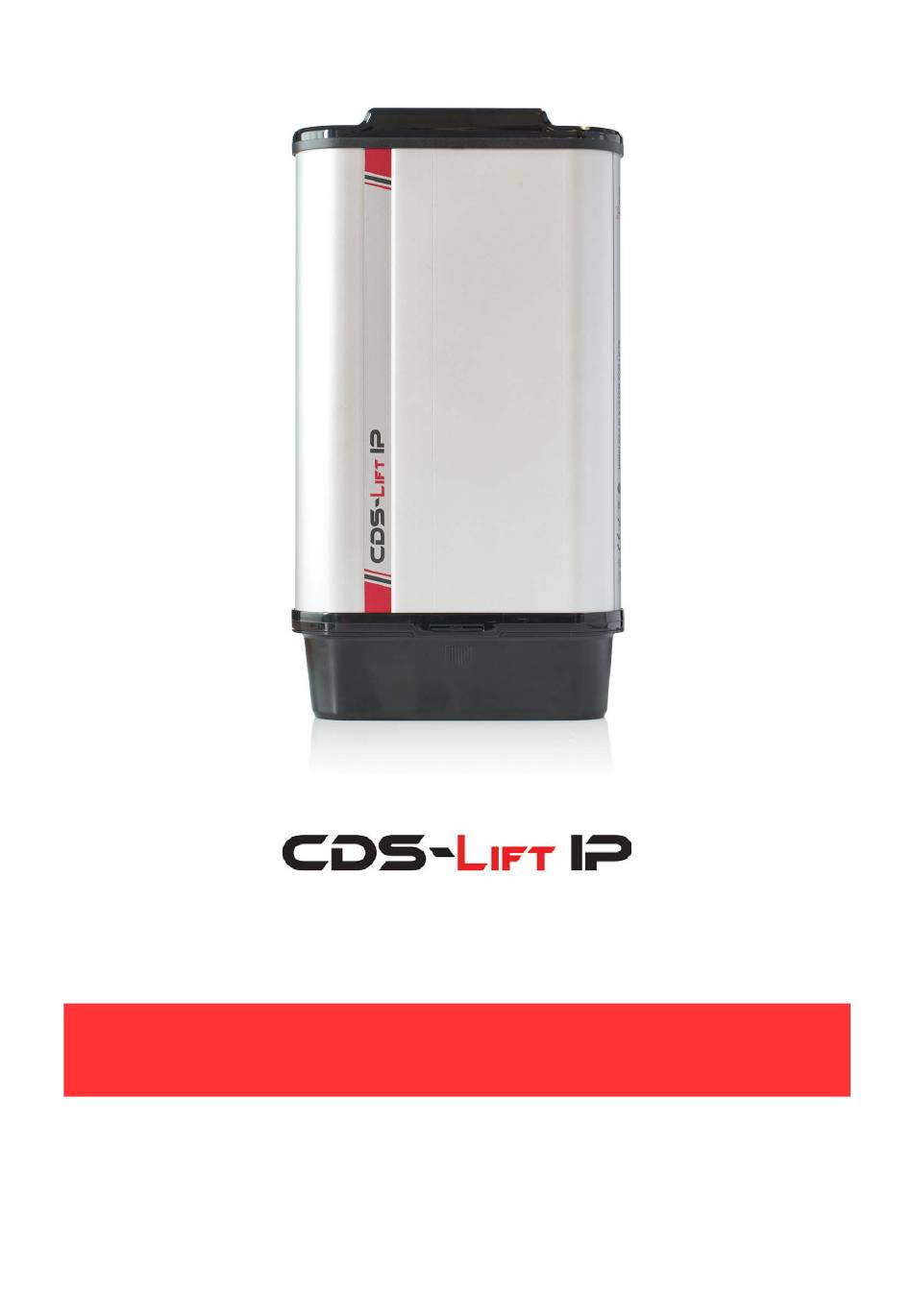

- Page 1 User`s manual ver. 1.3 System for transmission of video and audio from IP cameras in the elevators www.camsat.com...
-
Page 2: Safety And Maintenance Tips
CAMSAT and is intended exclusively for use by the purchasers of the equipment described in this manual. The CAMSAT company prohibits the duplication of any portion of this manual or use of this document for a purpose other than the use or maintenance of the equipment described in... - Page 3 Deklaracja zgodności R&TTE This device meets requirements of the European directive on radio equipment, telecommunications terminals as well as on their mutual identification and compatibility (Directive 1999/5/CE of the European Parliament and the Council of Europe, March 1999, on radio equipment and telecommunication terminal equipment and the mutual recognition of their conformity).
- Page 4 CDS-LiftIP System for transmission of video and audio from IP cameras in the elevators. Key features of the module CDS-LiftIP: easy configuration on the switches, without the need to connect a computer • CDS-LiftIP can work both as a receiver and transmitter •...
-
Page 5: Preparation For Operation
DESCRIPTION OF CONNECTORS AND LED INDICATORS RESET - reset button for the radio module to the default settings PORT 2 - LAN port for connecting a second IP camera PORT 1 - LAN port for connection to the DVR or connect the power adapter PoE48V. This port can also be used to connect a second IP camera through the LAN in the power supply. - Page 6 Function SETTINGS CH 161 (FCC) 5.805 Ghz (192.168.119.x) CH 165 (FCC) 5.825 Ghz (192.168.120.x) Transmitter ID Transmitter no 1 (192.168.x.2) number: Transmitter no 2 (192.168.x.3) Transmitter no 3 (192.168.x.4) Transmitter no 4 (192.168.x.5) MASTER receiver and all SLAVE transmitters must be set to the same operating channel to establish connection.
- Page 8 Assembly Place mounting brackets designed for mounting on a steel beam or rail in the appropriate holes in the rear of the device and tighten securely. Attach the device to the construction with the antenna pointed directly at the point of receiving. We use the U-Bolt handle which is included.
-
Page 9: Connection And Start-Up
Connection and start-up It is recommended that the first start-up and configuration of the system is made on the desk at small distances. This can save a lot of valuable time with the configuration of many different cameras. Transmitter (IP camera side): Set dipswitch 1 to OFF mode (transmitter), set the operating channel according to •... - Page 10 The receiver (NVR side) The receiver can be powered from a PoE injector or NVR PoE switch or PoE network. Set dipswitch No. 1 to ON mode (receiver), set the operating channel by a table • identical to the transmitter, set DIP7 and DIP8 ON (up) Connect NVR by the network cable to the PORT 1 or LAN port PoE in power supply.
-
Page 11: Application Examples
Application examples... - Page 13 Table of available operating frequencies Table of frequencies outside the EU and the US and paid Use of specific channels according to their purpose: CE - Europe • FCC - US • Using other frequencies depends on the legal regu- lations of the country where you are.
-
Page 14: General Warranty Terms
General warranty terms Camsat grants a 24 month warranty for the CDS-LiftIP transmission kit 1. If the device is not be operating properly, make sure, before returning the device for servicing, that everything was done according to the operating manual 2. -
Page 16: Device Disposal
Hereby, CAMSAT Gralak Przemyslaw declares that the product series CDS-LiftP meets the essential requirements and other relevant provisions of Directive 1999/5 / WE. The device is CE marked, which indicates compliance with the guidelines of the Directive. The device can be sold and used for transmission in the 5 GHz band. The frequency range can be adjusted using the settings in accordance with legal regulations in every country.
