Camsat CDS-6IP MULTI POE Quick Start

www.camsat-cctv.com
7. The recommended configuration settings:
a) Change the password to log on to the web panel WWW
(ADVANCED SETTINGS/PASSWORD)
b) Enter the password of radio transmission encryption - a recommended coding
WAP2-PSK (CAMERA CONNECTION SETTINGS/WIRELESS)
c) Scan free channels – set the receiver at the operating mode Slave
Save and press Scan Masters to scan the busy channels.
With this information, you will learn which channels in a given area are free or the
least busy. In the absence of available operating channels it is allowed to use
multiple radios on the same channel, then choose a channel of the weakest signal
(below <-65dB)
8. Testing the radio link.
The last step is to check the correctness of transmission between devices.
The last step is to check the correctness of transmission between devices.
To check the status of connected devices CDS-6IPMulti such as power signal, connec-
tion time, speed, IP address, etc. you must enter the LINK INFORMATION.
To view an updated list of current connections, click the Refresh button at the bottom
or press F5. The appearance of list of MAC addresses of broadcasting units in the
receiver indicates the correctness of the radio configuration. To be sure disconnect
from the transmitting unit from computer and connect the IP camera.
If the devices communicate with receiver it means that the radio connection is
properly configured and running. In the browser address bar enter the IP address of
the camera and check the quality of image transmission. You can now assembly units
at the facility.
These steps must be repeated for each unit transmitting / receiving sequentially
connecting them to a computer
NOTE: Before first use, it is necessary to check the full user manual
Full user manual can be found at: www.camsat-cctv.com
4
Full instructions can be found at: http://camsat-cctv.com/cds-6ipmulti
POLISH POLISH
EU EU
MARK MARK
TECHNICAL
SUPPORT
Mon–Fr 8.00 AM–4.00 PM
tel.+48 52 387 36 58

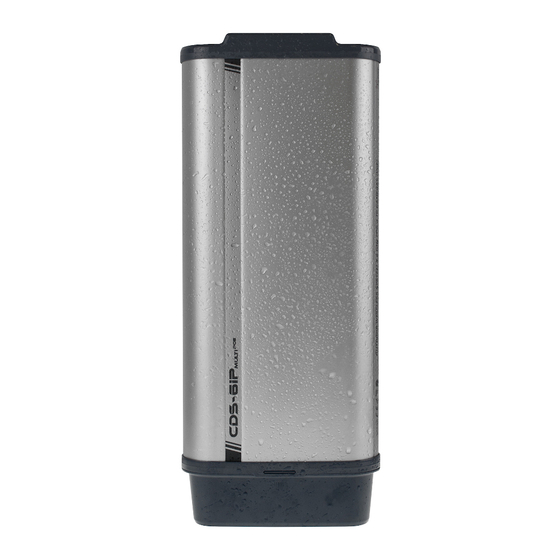

Wireless video and audio transmission system
for 4 IP PoE cameras in the band 5.1 - 5.8 GHz
1. Website panel menu tree
LINK INFORMATION
It contains basic information about the settings of the radio module eg. the
name of the radio link, signal strength and a list of connected radio transmitters.
CAMERA CONNECTION SETTINGS
Wireless – Contains settings of radio link eg. transmission type (Master / Slave),
the frequency of the operating channel, the name of the SSID link,
signal strength, transmission coding.
Network Settings – Contains settings of IP networks.
ADVANCED SETTINGS
Time Zone Setting - set the time, the NTP server
System Log - an overview of recent actions and changes in the CDS-6IPMulti
Upgrade Firmware - Software Update
Backup/Restore - save / restore configuration of system
Password -
changing the password
Full instructions can be found at: http://camsat-cctv.com/cds-6ipmulti
QUICK START
ver. 1.1
1
