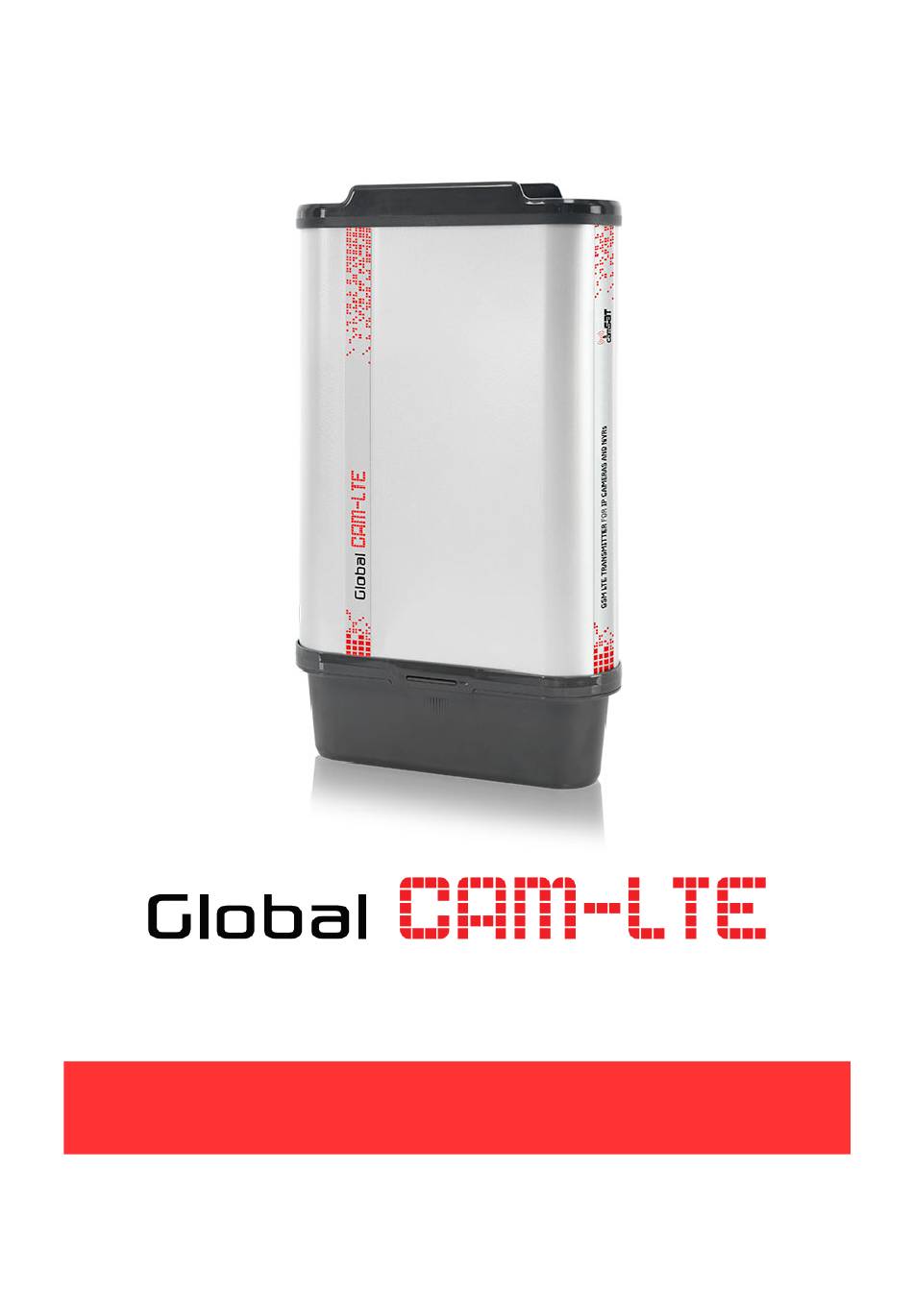

- Page 1 User manual ver. 1.0 GSM LTE wireless transmitter for transmission of signals from IP cameras via the Internet www.camsat.com.pl...
- Page 2 Thank you for choosing the GlobalCAM-LTE. We trust that its unique features will come in very handy. Please, read this instruction manual to ensure safe operation and maximise efficiency of the device. The contents of this manual comprise proprietary information of CAMSAT and are intended only for use by purchasers of the equipment described herein.
-
Page 3: Safety And Maintenance Tips
Safety and maintenance tips... -
Page 4: R&Tte Declaration Of Conformity
(Directi- ve 1999/5/CE of the European Parliament and the Council of Europe, March 1999). The GlobalCAM-LTE module is compliant with provisions related to the safety in using electrical devices. Observe the following guidelines: the power outlet must be earthed in compliance with applicable provisions, •... -
Page 5: Specification
GlobalCAM-LTE is a wireless transmitter for three IP cameras that transparently trans- mits all signals from IP cameras via the GSM LTE network. Thanks to GlobalCAM-LTE, HD images from IP cameras can be picked up anywhere in the world via the Internet. -
Page 6: Description Of Led Connectors And Indicators
Description of LED connectors and indicators OPIS ZŁĄCZ ORAZ WSKAŹNIKÓW LED DC IN PoE 48V – alternative DC48V power input, the voltage connected here will appear on the LAN port contacts; leave unconnected when using the DC IN 9-24V input GND –... -
Page 7: Preparation For Work Of The Device
1. Remove the bottom cover, and then insert the SIM card that you have received from your cell phone operator. We recommend a SIM card with a fixed IP address and no data limits, e.g. CAMSAT cards "simCAM" - more at www.camsat.com 2. - Page 8 A very simple method that redirects all ports to only one camera IP. Note: this method only works with one IP camera or one other device connected to GlobalCAM-LTE. In case there are more cameras or other devices in the network, this method is not recommended.
- Page 9 "WAN IP address" visible on the SIM card. 5. Go to the configuration of your IP camera (or recorder) in order to connect it to the Internet. Enter the IP address of the GlobalCAM-LTE transmitter (default 192.168.1.234) in the camera in the gateway field.
-
Page 10: Additional Settings
(e.g. http://17.18.2.2:80/) Additional settings • Password change - protect the GlobalCAM-LTE transmitter from unauthorized access and be sure to change the password to your own, multi-character with uppercase and lowercase letters and numbers. Go to System> Router Access, and then enter a new password. Confirm the change with the Save changes button. -
Page 11: Montage
Montage For mounting on a mast, use the included equpment. The GlobalCAM-LTE module should be securely attached to the mast by firmly tightening the mounting screws. Insert the mounting brackets into the appropriate holes in the rear part of the device body and screw them tightly. -
Page 12: Connection And Start-Up
(without prior hanging on the object). This can save a lot of valu- able time when configuring many different cameras. Examples of GlobalCAM-LTE connections in CCTV applications: a) Transmission for viewing the image from the NVR recorder .: Connect the power supply from 12-24V DC or 48V DC and GND to the contacts in •... - Page 13 b) Image transmission from 3 IP cameras to the NVR Connect the DC48V power supply to the DC IN PoE 48V and GND contacts in the • power cube Connect PoE IP cameras using network cables to LAN 2 and LAN3 ports that have •...
-
Page 14: General Warranty Terms
Camsat grants a 24 month warranty for the GlobalCAM-LTE transmission kit 1. If the device is not be operating properly, make sure, before returning the device for servi- cing, that everything was done according to the operating manual 2. -
Page 15: Declaration Of Conformity
Declaration of conformity... -
Page 16: Device Disposal
CAMSAT Gralak Przemyslaw declares that the product series GlobalCAM-LTE meets the essential requirements and other relevant provisions of Directive 1999/5 / WE. The devi- ce is CE marked, which indicates compliance with the guidelines of the Directive. The de- vice can be sold and used for transmission in the 5 GHz band. The frequency range can be adjusted using the settings in accordance with legal regulations in every country.
