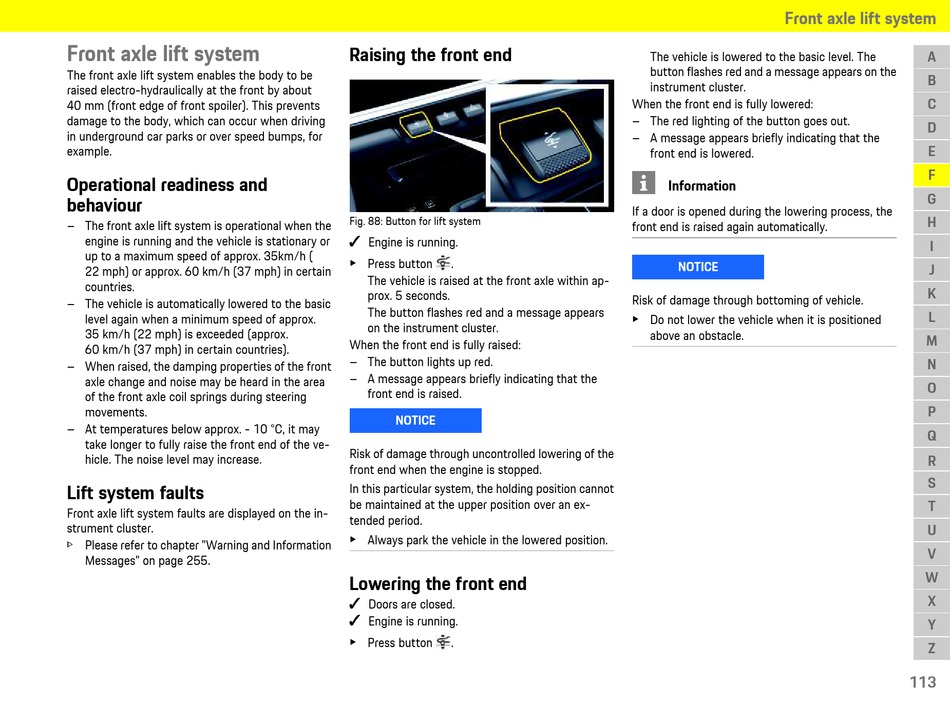

Front Axle Lift System - Porsche 911 Manual

Front axle lift system

The front axle lift system enables the body to be
raised electro-hydraulically at the front by about
40 mm (front edge of front spoiler). This prevents
damage to the body, which can occur when driving
in underground car parks or over speed bumps, for
example.
Operational readiness and
behaviour
– The front axle lift system is operational when the
engine is running and the vehicle is stationary or
up to a maximum speed of approx. 35km/h (
22 mph) or approx. 60 km/h (37 mph) in certain
countries.
– The vehicle is automatically lowered to the basic
level again when a minimum speed of approx.
35 km/h (22 mph) is exceeded (approx.
60 km/h (37 mph) in certain countries).
– When raised, the damping properties of the front
axle change and noise may be heard in the area
of the front axle coil springs during steering
movements.
– At temperatures below approx. - 10 °C, it may
take longer to fully raise the front end of the ve-
hicle. The noise level may increase.
Lift system faults
Front axle lift system faults are displayed on the in-
strument cluster.
> Please refer to chapter "Warning and Information
Messages" on page 255.
Raising the front end
Fig. 88: Button for lift system
b b Engine is running.
e Press button
.
The vehicle is raised at the front axle within ap-
prox. 5 seconds.
The button flashes red and a message appears
on the instrument cluster.
When the front end is fully raised:
– The button lights up red.
– A message appears briefly indicating that the
front end is raised.
NOTICE
Risk of damage through uncontrolled lowering of the
front end when the engine is stopped.
In this particular system, the holding position cannot
be maintained at the upper position over an ex-
tended period.
e Always park the vehicle in the lowered position.
Lowering the front end
b b Doors are closed.
b b Engine is running.
e Press button
.
Front axle lift system
The vehicle is lowered to the basic level. The
button flashes red and a message appears on the
instrument cluster.
When the front end is fully lowered:
– The red lighting of the button goes out.
– A message appears briefly indicating that the
front end is lowered.
Information
If a door is opened during the lowering process, the
front end is raised again automatically.
NOTICE
Risk of damage through bottoming of vehicle.
e Do not lower the vehicle when it is positioned
above an obstacle.
