Page 1

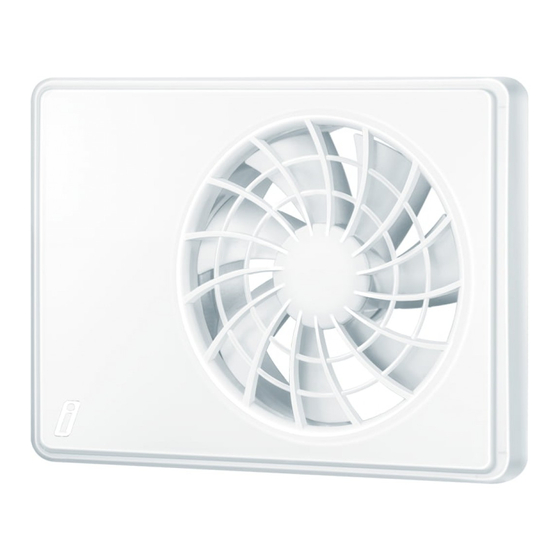

ACCEPTANCE CERTIFICATE AXIAL INTELLIGENT FAN The fan is duly recognized Approval mark user's manual as serviceable. Manufactured on (date) Sold model (name and stamp of the trade company) iFan Celsius Date of sale F01EN-(iFan Celsius)-03...
Page 2
Do not use the fan in the environment containing hazardous or explosive materials and vapours, i.e. spirits, gasoline, insecticides, etc. Do not close or block the fan intake or extract vents in order to ensure the most effective air passage. Do not sit on the fan and do not put objects on the fan.
WARNING Recycle at the end of the service life. Do not dispose the product with unsorted municipal trash. WARNING! Read the present user's manual carefully before proceeding with installation works. Compliance with the manual requirements ensures reliable operation and long service life of the product. Keep the user's manual available as long as you use the product.
Page 4
Table 2 Spigot Max. air Noise level at Air capacity, Air capacity Speed dia. capacity [m /h] 3 m [dBA] factory settings [m /h] control range [m /h] 24 Hours Silent 33 ... 72 72 ... 106 24 Hours Silent 40 ...
Page 5
PRODUCT MOUNTING The fan is designed for mounting into round Ø 100 or 125 mm air duct or installation into the ventilation shaft. The replaceable adapter of required size may be used to facilitate mounting. The fan is equipped with a removable grille. Press the latches slightly to release the grille from the front cover.
Page 6
The fan casing has three round lowered tabs for cable entry. Cut out a hole at the most suitable place with a knife. FAN MOUNTING SEQUENCE...
Page 8
The fan may be connected to power mains by four wiring diagrams. The fan is compatible with 100-240 V / 50-60 Hz power mains. Wiring diagram 1 L and N terminals are connected to live and neutral respectively. The fan is always in standby mode and does not run. As 24 HOURS Mode is activated the fan runs permanently at low speed to ensure minimum round-the-clock ventilation.
Page 9
Wiring diagram 2 L and N terminals are connected to live and neutral respectively and L and LT terminals are joined by the jumper. The fan is always in SILENT mode. 24 HOURS mode may not be activated.If the temperature rises above the set point, the fan is switched to MAX (by default) or SILENT (if set) mode.
Page 10
Wiring diagram 3 L and N terminals are connected to live and neutral respectively. LT contact is connected to live through external switch, light switch. The fan is always in standby mode. As 24 HOURS Mode is activated the fan runs permanently at low speed to ensure minimum round-the-clock ventilation.
Page 11
Wiring diagram 4 L and N terminals are connected to live and neutral respectively. LT terminal is connected to live through the external momentary switch that is activated by opening a door. The fan is in standby mode and does not run. As 24 HOURS Mode is activated the fan runs permanently at low speed to ensure minimum round-the-clock ventilation.
Page 12
FAN ADJUSTMENTS The fan is adjusted at the factory and is ready for operation. It is a fully operable product without extra adjustments. However if you want to adjust the fan according to your needs, please follow the instruction below. You can always reset to the factory settings.
Page 13
You can adjust the fan both with the control panel located on the fan or with the remote controller. The remote controller has 3 m effective range. To attain the maximum effective range response direct the remote controller straight to the fan. WARNING! The fan covers of Melange, Ruby Star, Champagne, Silver colours provide high signal conductivity from the remote controller and do not influence the signal transferability.
Page 14
SILENT MODE SPEED ADJUSTMENT Number of active Air capacity light indicators [m3/h] By default the speed is 83/72 m3/h. 40/33 To set the speed: 44/37 press the buttons "3CP" and "4CP" on the control panel. 48/41 press the buttons "4RC" on the remote controller. 52/45 57/49 Press the buttons "3CP", "4CP"...
Page 15
OFF-DELAY TIMER ADJUSTMENT The default time is 5 minutes. When the external switch is closed, the fan operates for some time and then reverts to standby mode. This time is adjustable. To adjust the timer: Press the button "2CP" in cycles on the control panel. Press the buttons "9RC"...
Page 16
TEMPERATURE SENSOR SET POINT ADJUSTMENT The default temperature is 24 °C.To adjust the switching temperature to higher speed: press and hold the button "6CP" and press the buttons "3CP" and "4CP" on the control panel. press the buttons "11RC" on the remote controller. Press and hold the button "6CP"...
Page 17
EXTRA FUNCTION - SWITCHING FAN ON/OFF This function may be controlled from the remote controller only. If the fan is switched off with the button "1RC" on the control panel, the light indicator on the fan goes off and the fan does not response to any external functions (temperature fluctuations or activation by the external switch).
MAINTENANCE Disconnect the fan from power mains prior to any maintenance operations! Maintenance means periodic clearing of the fan surfaces from dust and dirt. To clean the fan use a soft cloth wetted in a water-soap solution. Wipe the surfaces dry after washing. Avoid liquid splashes on the motor and the circuit board! The power supply battery in the remote controller must be regularly replaced, model CR2025 3V.
STORAGE AND TRANSPORTATION RULES Transport the product by any transportation vehicle in the manufacturer's original package. Store the delivered product in the manufacturer's original packing box in a dry ventilated premise with the temperature range from +5ºC up to + 40ºC and relative humidity less than 80%.The storage environment must not contain dust, acid or alkali vapours that may cause corrosion of the product parts.
MANUFACTURER'S WARRANTY By purchasing this product the customer confirms to have read and agreed to the terms, rules and requirements related to operation, storage, transportation, mounting, adjustment, connection, maintenance and repair as well as warranty obligations with respect to this product as set forth in the manufacturer's accompanying documentation to the product. The manufacturing company sets forth the warranty period (service life) of the product as 60 months following the sale date via retail network subject to the customer's ensuring compliance with the rules of transportation, storage, mounting and operation of the product.
Page 21
in case of replacing and using parts, units and components of the product not prescribed by the manufacturing company; in case of other use of the product other than intended use; in case of the customer's violating product operation rules; in case of connecting the product to electric mains of voltage exceeding voltage value specified in the user's manual;...
