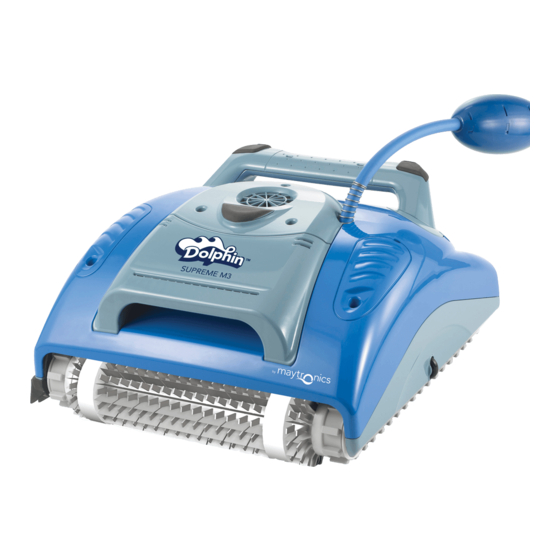

Maytronics Supreme M3 Manual
  1. Manuals
  2. Brands
  3. Maytronics Manuals
  4. Swimming Pool Vacuum
  5. Supreme M3
  6. Manual

Maytronics Supreme M3 Manual

Hide thumbs

Advertisement

Table of Contents

Supreme M3 Assembly

Table of Contents

1. Assembling the Motor Unit ............................................................................................................... 5
2. Assembling the Driving System and Side Cover ................................................................................ 6
3. Assembling the Driving System and Side Cover on the other side of the robot ................................. 9
4. Assembling the floating cable ........................................................................................................ 10
5. Positioning the Float ...................................................................................................................... 12
6. Assembling the Outer Casing ......................................................................................................... 13
7. Assembling the Impeller Cover ...................................................................................................... 14
8. Assembling the Brushes ................................................................................................................. 15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Supreme M3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maytronics Supreme M3

Summary of Contents for Maytronics Supreme M3

  • Page 1 Supreme M3 Assembly Table of Contents 1. Assembling the Motor Unit ....................... 5 2. Assembling the Driving System and Side Cover ................6 3. Assembling the Driving System and Side Cover on the other side of the robot ......... 9 4.
  • Page 2 Supreme M3 Assembly...
  • Page 3 Supreme M3 Assembly...
  • Page 4 Supreme M3 Assembly...
  • Page 5 Supreme M3 Assembly 1. Assembling the Motor Unit Step 1.1 Assemble the cover cork into the Pulley's place Step 1.2 Note: Place the motor The drive unit in its place. motor side should be in the opposite side of the...
  • Page 6 Supreme M3 Assembly Step 1.3 Secure the motor unit to the frame with 4X KA50X30. 2. Assembling the Driving System and Side Cover Step 2.1 Place the guide wheels on the side of the motor shaft.
  • Page 7 Supreme M3 Assembly Note: There are two types of tracks – short Step 2.2 and long. Use Insert the the longer hexagon track in the adaptor into Pulley side. the Pulley. Step 2.3 Place the track on the Pulley. Step 2.4...
  • Page 8 Supreme M3 Assembly Step 2.5 Put the side panel with the wheel on the drive motor side. Note: The side panel with the wheel Step 2.6 should be in Press on the the drive bottom of the motor side side panel to...
  • Page 9 Supreme M3 Assembly 3. Assembling the Driving System and Side Cover on the other side of the robot Step 3.1 Put the shorter track on the other side of the robot as shown. Step 3.2 Put the side panel with the fins into its place.
  • Page 10 Supreme M3 Assembly 4. Assembling the floating cable Step 4.1 Pass the cable through the outer casing as shown. Step 4.2 Insert the floating cable to the motor unit. Step 4.3 Press the seal firmly to the terminal.
  • Page 11 Supreme M3 Assembly Step 4.4 Tighten the plastic screw properly with the special torque key- Tip! Use the cable key to close the screw. Step 4.5 Position the cable on the motor unit and secure the cable holder with 4X KA50X12.
  • Page 12 Supreme M3 Assembly 5. Positioning the Float Step 5.1 Place the float on the motor unit, on the drive motor side as shown. Note: PVC models have two floats on the motor unit.
  • Page 13 Supreme M3 Assembly 6. Assembling the Outer Casing Step 6.1 Place the outer casing on the frame. Step 6.2 Make sure the casing seats well on the side panel slots. Step 6.3 Secure the outer casing to the frame with 4X KA...
  • Page 14 Supreme M3 Assembly 7. Assembling the Impeller Cover Step 7.1 Place the cable spring in its place on the outer casing before closing the impeller cover. Step 7.2 Position the impeller cover diagonally on the outer casing as shown. Step 7.3...
  • Page 15 Supreme M3 Assembly 8. Assembling the Brushes Step 8.1 Place one brush in place. Note: Using a Step 8.2 screwdriver makes it easier to insert the brush in place. Step 8.3 Place the second brush in its place by pushing it...
  • Page 16 Supreme M3 Disassembly Instructions Table of Contents 1. Dismantling the Impeller Cover ....................... 2 2. Dismantling the Outer Casing ......................3 3. Dismantling the Cable ........................4 4. Dismantling the Motor Unit ......................5 5. Dismantling the Side Panels ......................6...
  • Page 17 Supreme M3 Disassembly Instructions 1. Dismantling the Impeller Cover Step 1.1 Unscrew the 3 screws holding the cover in place. Step 1.2 Tip: Use needle-nosed Lift the cover off. pliers to remove the cover.
  • Page 18 Supreme M3 Disassembly Instructions 2. Dismantling the Outer Casing Step 2.1 Unscrew the 4 screws holding the cover in place. Step 2.2 Hold the outer casing on both sides. Pull it up to remove...
  • Page 19 Supreme M3 Disassembly Instructions 3. Dismantling the Cable Step 3.1 Dismantle the 2 screws on the cable holder. Note: PVC models tep 3.2 have two floats on Remove the float from the the motor motor unit. unit. Step 3.3 Release the...
  • Page 20 Supreme M3 Disassembly Instructions 4. Dismantling the Motor Unit Step 4.1 Unscrew the 4 screws holding the motor unit in place. Step 4.2 Remove the motor unit. Step 4.3 Remove the hexagon adaptor.
  • Page 21 Supreme M3 Disassembly Instructions 5. Dismantling the Side Panels Step 5.1 Unscrew the 2 screws holding the side panel in place on both sides of the robot. Step 5.2 Pull the side panels off.
  • Page 22 Supreme M3 Disassembly Instructions 6. Dismantling the Drive System Step 6.1 Remove the pulley Note: together The pulley and with the guide wheels track. are on one side only, the drive motor side Step 6.2 Remove the guide wheels. Step 6.3...
  • Page 23 Supreme M3 Disassembly Instructions Step 6.4 Remove the brushes. Tip: To remove the brush, press on the sides of the wheel with your fingers.
