Summary of Contents for Chauvet Professional OVATION B-565FC

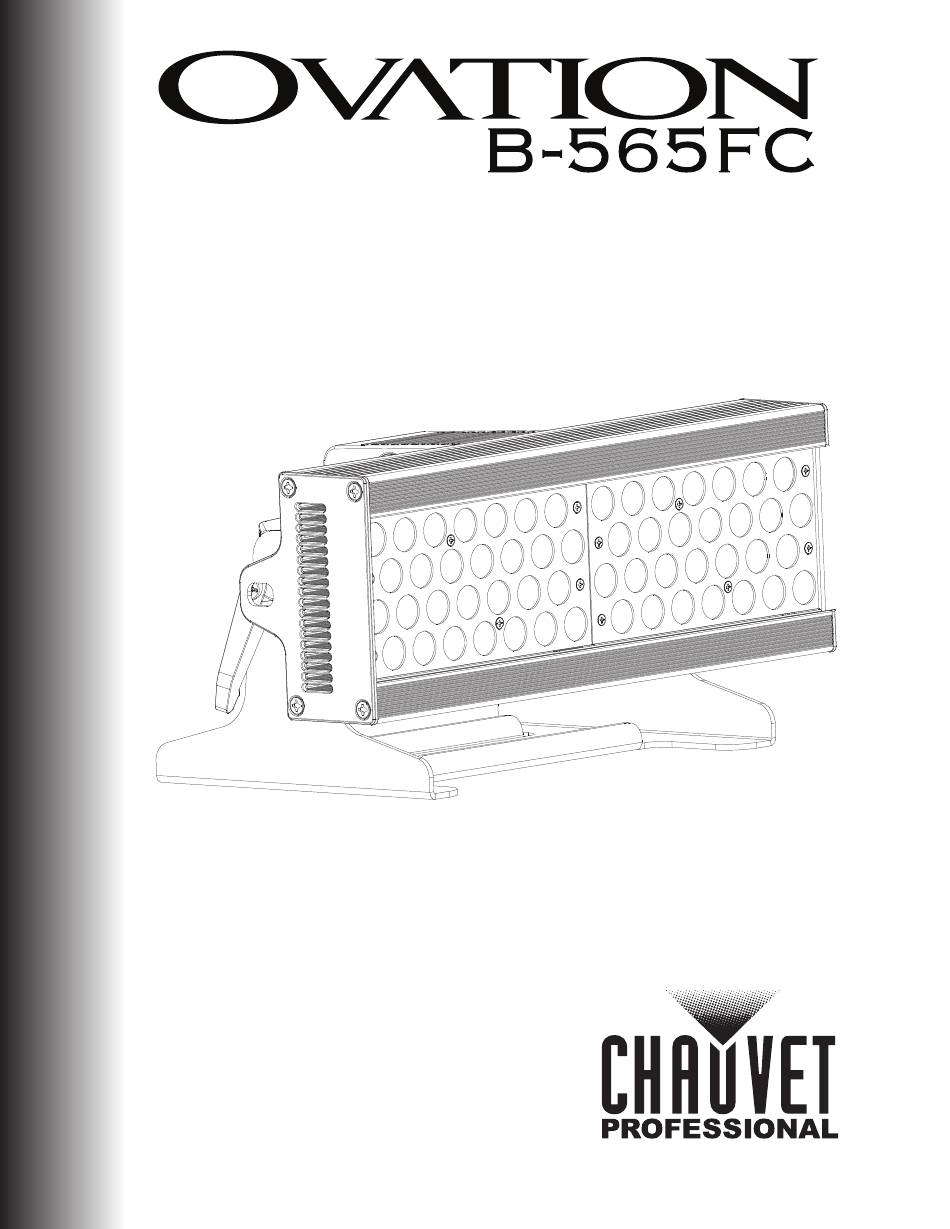

  • Page 1 User Manual...
  • Page 2 Edition Notes The Ovation B-565FC User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Ovation B-565FC as of the release date of this edition. Trademarks CHAUVET, the Chauvet logo and Ovation B-565FC are registered trademarks or trademarks of Chauvet &...

  • Page 3: Table Of Contents

    Menu Map ..................... 9 Configuration (DMX/Art-Net™/sACN) ............12 Control Protocol ......................Ethernet Setting ......................Control Personalities ...................... Starting Address......................DMX Values ....................14 2-Cell Personalities ......................1-Cell Personalities ......................Virtual Color Wheel ......................Ovation B-565FC User Manual Rev. 6 TOC 1 of 2...
  • Page 4 System Information ......................Factory Reset......................... Web Server ....................24 Home..........................Settings .......................... Output ..........................Security .......................... 5. Technical Information ..............Product Maintenance ..................25 6. Technical Specifications ............Returns.................... Contact Us ..................TOC 2 of 2 Ovation B-565FC User Manual Rev. 6...

  • Page 5: Before You Begin

    This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Ovation B-565FC User Manual Rev. 6 Page 1 of 28...

  • Page 6: Safety Notes

    LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Page 2 of 28 Ovation B-565FC User Manual Rev. 6...

  • Page 7: Introduction

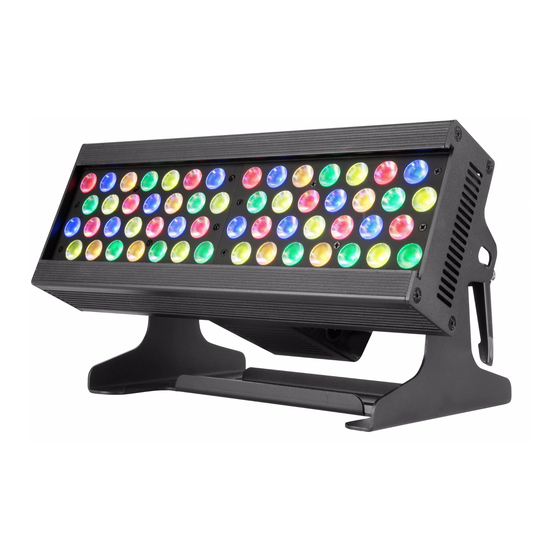

    2. Introduction Description The Ovation B-565FC is a high-power full-color LED (RGBAL) batten. It features full RGBA-Lime color mixing with modes, providing full 16-bit dimming for 1 or 2 cells, selectable PWM, RDM, Art-Net™, and sACN. The Virtual Color Wheel matches popular gel colors comparable with those projected by a tungsten source, and color temperature presets that match a tungsten source from 2800 to 6500 K.

  • Page 8: Product Overview

    Menu buttons Adjustment handle Display Fuse Filter lock ® Neutrik ® PowerCON ® Amphenol etherCON through 3- and 5-pin DMX Out 3- and 5-pin DMX in ® Neutrik ® PowerCON Page 4 of 28 Ovation B-565FC User Manual Rev. 6...

  • Page 9: Product Dimensions

    10.43 in 265 mm 2.40 in 61 mm 1.18 in 30 mm 8.15 in 207mm 2.64 in 67 mm 1.93 in 49 mm 5.04 in 7.48 in 128 mm 190 mm Ovation B-565FC User Manual Rev. 6 Page 5 of 28...

  • Page 10: Setup

    DMX Connection You can link the Ovation B-565FC to a DMX controller using a 3- or 5-pin DMX connection. If using other DMX-compatible products with this product, you can control each individually with a single DMX controller. Art-Net™ Connection Art-Net™...

  • Page 11: Connection Diagram

    Master/Slave Connectivity The Master/Slave mode allows an Ovation B-565FC (the master) to control one or more Ovation B-565FC products (the slaves) without a DMX controller. One Ovation B-565FC becomes the master when running an auto or custom program, or by being in a Static mode.

  • Page 12: Mounting

    Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Procedure The Ovation B-565FC comes with a double-bracketed yoke to which you can either attach mounting clamps for hanging or simply use as a floor stand. You must supply the mounting clamps. Make sure the clamps are capable of supporting the weight of this product.

  • Page 13: Control Panel Operation

    RGBAL EXT 10CH virtual color wheel, color temperature, strobe RGBAL Fine 10CH 10-channel: 16-bit RGBAL 17-channel: 16-bit dimmer, 16-bit RGBAL, virtual color wheel, color RGBAL FULL 17CH temperature, strobe, color macros, control Ovation B-565FC User Manual Rev. 6 Page 9 of 28...
  • Page 14 C5060 - Dk Blue C5690 - Indigo C5080 - VDk Blue C5081 - VDk Blue 2 C4370 - Yel Green C4070 - Green C4550 - Turquoise C4560 - Aqua C4570 - Blue Green Page 10 of 28 Ovation B-565FC User Manual Rev. 6...
  • Page 15 Sets red LED maximum value Green Sets green LED maximum value White Balance Manual Blue 125–255 Sets blue LED maximum value Amber Sets amber LED maximum value Lime Sets lime LED maximum value Ovation B-565FC User Manual Rev. 6 Page 11 of 28...

  • Page 16: Configuration (Dmx/Art-Net™/Sacn)

    Use control configurations to operate the product with a controller. Control Protocol This setting allows you to choose the protocol with which to control the Ovation B-565FC. Go to the Protocol main level. Select the desired control protocol (DMX512, ArtNet, or sACN).

  • Page 17: Control Personalities

    2 Cell RGBA 8CH 2 Cell RGBAL 10CH 2 Cell RGB EXT 15CH 2 Cell RGBA EXT 17CH 2 Cell RGBAL EXT 19CH 2 Cell RGBAL Fine 20CH 2 Cell RGBAL FULL 31CH Ovation B-565FC User Manual Rev. 6 Page 13 of 28...

  • Page 18: Dmx Values

    011  255 Strobe, slow to fast 000  010 No function Strobe all 011  255 Strobe, slow to fast 000  015 No function Color macros 016  255 Color macros Page 14 of 28 Ovation B-565FC User Manual Rev. 6...
  • Page 19 Red 1 000  255 0–100% Green 1 000  255 0–100% Blue 1 000  255 0–100% Amber 1 000  255 0–100% Lime 1 000  255 0–100% Ovation B-565FC User Manual Rev. 6 Page 15 of 28...
  • Page 20 Percent/Setting Dimmer 000  255 0–100% Dimmer Fine 000  255 0–100% Red 1 000  255 0–100% Green 1 000  255 0–100% Blue 1 000  255 0–100% Page 16 of 28 Ovation B-565FC User Manual Rev. 6...
  • Page 21 Green 1 000  255 0–100% Blue 1 000  255 0–100% Red 2 000  255 0–100% Green 2 000  255 0–100% Blue 2 000  255 0–100% Ovation B-565FC User Manual Rev. 6 Page 17 of 28...

  • Page 22: 1-Cell Personalities

    064  071 Dimmer speed mode OFF 072  079 Dimmer speed 1 (fastest) 080  087 Dimmer speed 2 088  095 Dimmer speed 3 (slowest) 096  255 Reserved for future use Page 18 of 28 Ovation B-565FC User Manual Rev. 6...
  • Page 23 1-Cell RGB EXT 8CH Channel Function Value Percent/Setting Dimmer 000  255 0–100% Dimmer fine 000  255 0–100% 000  255 0–100% Green 000  255 0–100% Blue 000  255 0–100% Ovation B-565FC User Manual Rev. 6 Page 19 of 28...
  • Page 24 000  255 Refer to the Preset Color Temperature Chart for specific values 1-Cell HSV 3CH Channel Function Value Percent/Setting 000  255 0–100% Saturation 000  255 0–100% Value 000  255 0–100% Page 20 of 28 Ovation B-565FC User Manual Rev. 6...

  • Page 25: Virtual Color Wheel

    PERATION Virtual Color Wheel The Ovation B-565FC includes a feature called the Virtual Color Wheel (VCW). This feature is available as a standalone control mode for manual use and also as a control channel in select DMX personalities. More than 30 pre-mixed colors, custom blended by our engineers, are available to call up for easier programming.

  • Page 26: Configuration (Standalone)

    This function causes the color temperature of the LEDs to imitate the appearance of a lamp when dimming. Go to the Red Shift main level. Select from On or Off). Page 22 of 28 Ovation B-565FC User Manual Rev. 6...

  • Page 27: Master/Slave

    Inverse Square: The output follows an inverse square-law curve. Dimmer Profiles This setting determines how fast the output of the Ovation B-565FC changes when you modify the output value. This setting provides four different options to simulate the dimming curve of an incandescent lighting product.

  • Page 28: Back Light

    PERATION Back Light This setting allows for selection of the amount of time the backlight on the Ovation B-565FC’s display stays on after the last button is pressed on the control panel. Go to the Back Light main level. Select 10S (10 seconds), 30S (20 seconds), 2Min (2 minutes), or On (backlight remains on).

  • Page 29: Product Maintenance

    Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Ovation B-565FC User Manual Rev. 6 Page 25 of 28...

  • Page 30: Technical Specifications

    2 Cell: 6, 8, 10, 15, 17, 19, 20, 31 Ordering Product Name Item Name Item Code UPC Number Ovation B-565FC OVATIONB565FC 03031236 781462215842 UL 1573 CSA C22.2 No. 166 E113093 Page 26 of 30 Ovation B-565FC User Manual Rev. 6...

  • Page 31: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Ovation B-565FC User Manual Rev. 6 Page 27 of 28...

  • Page 32: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Page 28 of 28 Ovation B-565FC User Manual Rev. 6...
