NOTE: The Default Gateway address is not required, so can be set to some
address in the subnet range.
NOTE: If you want to use a particular subnet address, then you may edit the
network parameters via the front panel menu as required.
5. Once you have configured the IP ports and connected the RJ45 cable, an
LED illuminates on the RJ45 port to indicate a connection.

4.6.2. Accessing the IRD6200 via Web Browser

1. From your chosen browser, in the address bar, enter the IP address for the
unit. The factory default address is:

http://192.168.000.90
2. After a short delay, the menu displays on the webpage (see Figure 4-1).
3. Now make your required configuration changes to the unit using the
webpage.

4.6.3. Routing Page

This webpage gives a diagrammatic view of the signal routing within the
receiver.
Issue No: 1
Ref: IRD6-ASUM-700X

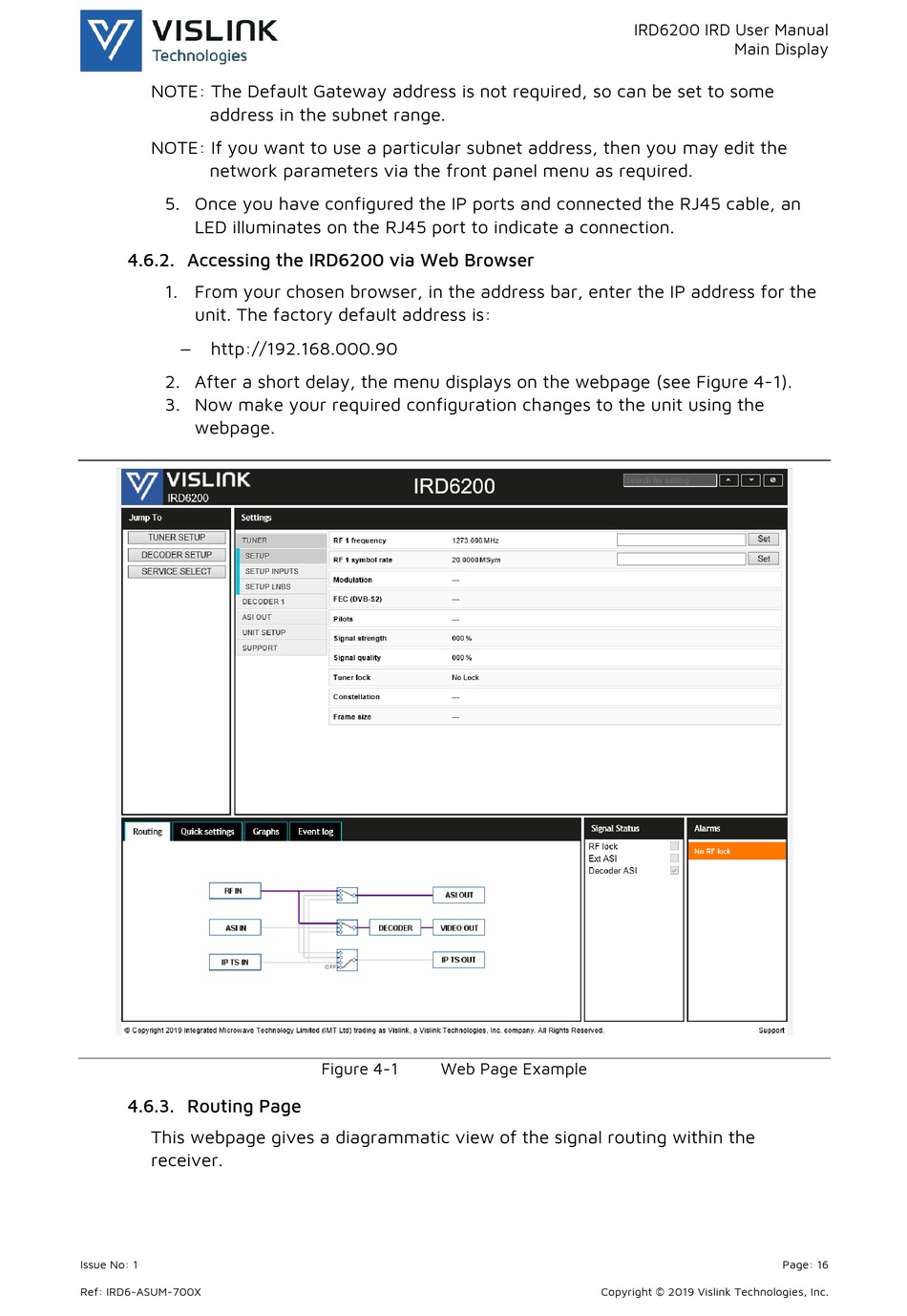

Figure 4-1 Web Page Example
IRD6200 IRD User Manual
Main Display
Copyright © 2019 Vislink Technologies, Inc.
Page: 16
