3. Controls

3.1. Selection Keys

The MENU key allows rapid entry to the main operating menu screens: Top-level
menu tree, overall summary, demodulator mode, decoder input selection.
Within menus, the ESCAPE key navigates you back a level. Escape also rejects
an entry operation without committing to the value adjustment. Pressing
multiple time returns to the home screen at the top of the menu trees.

3.2. Menu Scroll Keys

Key
UP / DOWN /
LEFT / RIGHT
The ENTER key initially selects an option or a choice. Change the
parameter/value using the UP / DOWN / LEFT / RIGHT arrow keys. Pressing
ENTER key commits the change or ESCAPE aborts the change.
The upper line, in smaller font, of the LCD, shows the parameters available by
means of a 'prompt'. Access to the next menu level or a summary of the status
of the menu option.
Some menus display 'V' at the side of the list, this indicates there are more
options. Use the down arrow to show more options. Pressing ESCAPE in this
instance takes you back to the previous menu.

3.3. Hot Keys

Key
STATUS
Press ESCAPE or MENU to exit:
Issue No: 1
Ref: IRD6-ASUM-700X

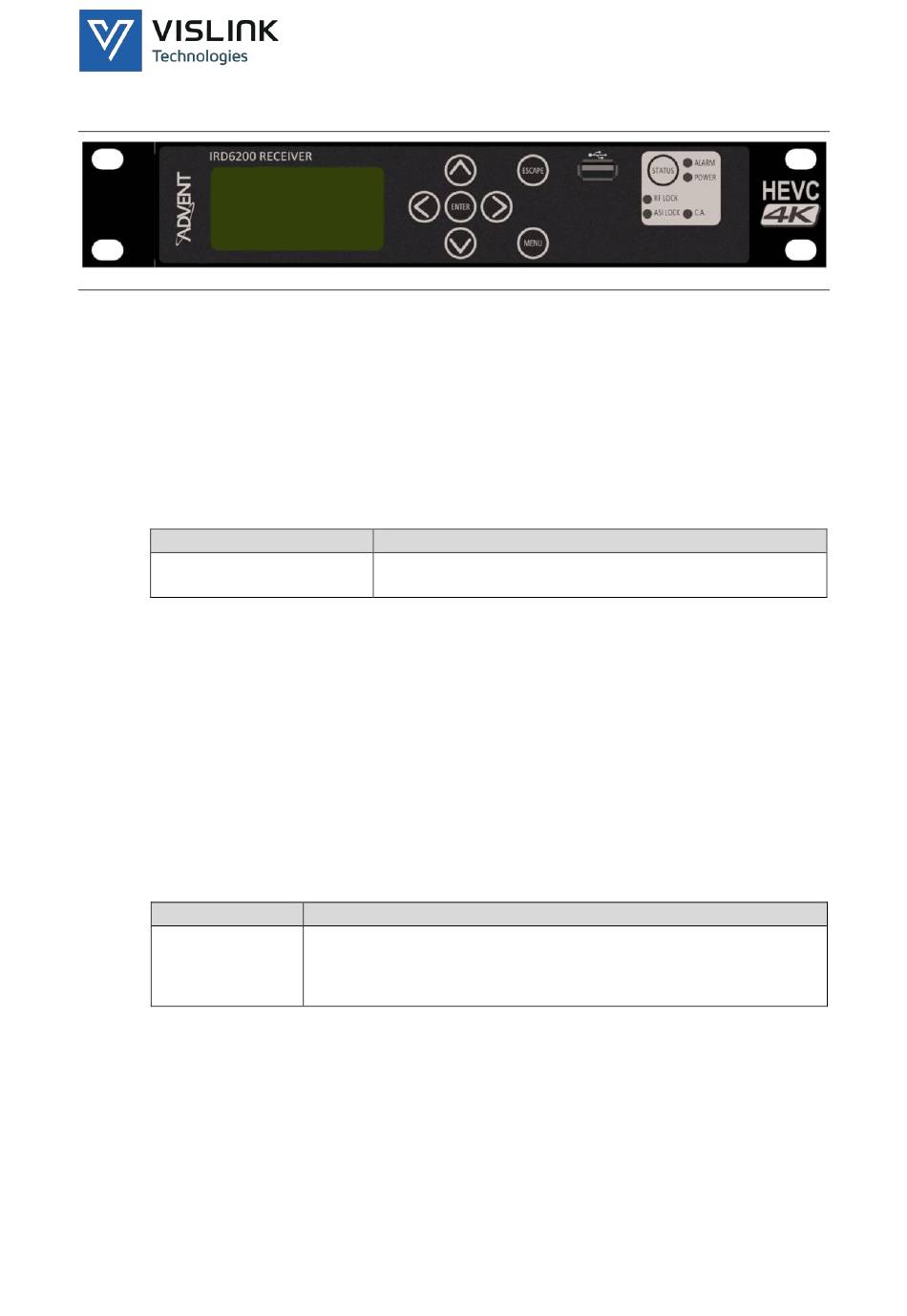

Figure 3-1 IRD6200 Front Panel
Arrow keys select an option displayed in the window and
navigate around the menu tree.
Pressing the STATUS key brings you directly to the ALARMS
menu screen. If more than one alarm is active (as indicated in the
top right corner), pressing the Up and Down arrow keys will cycle
through them.
