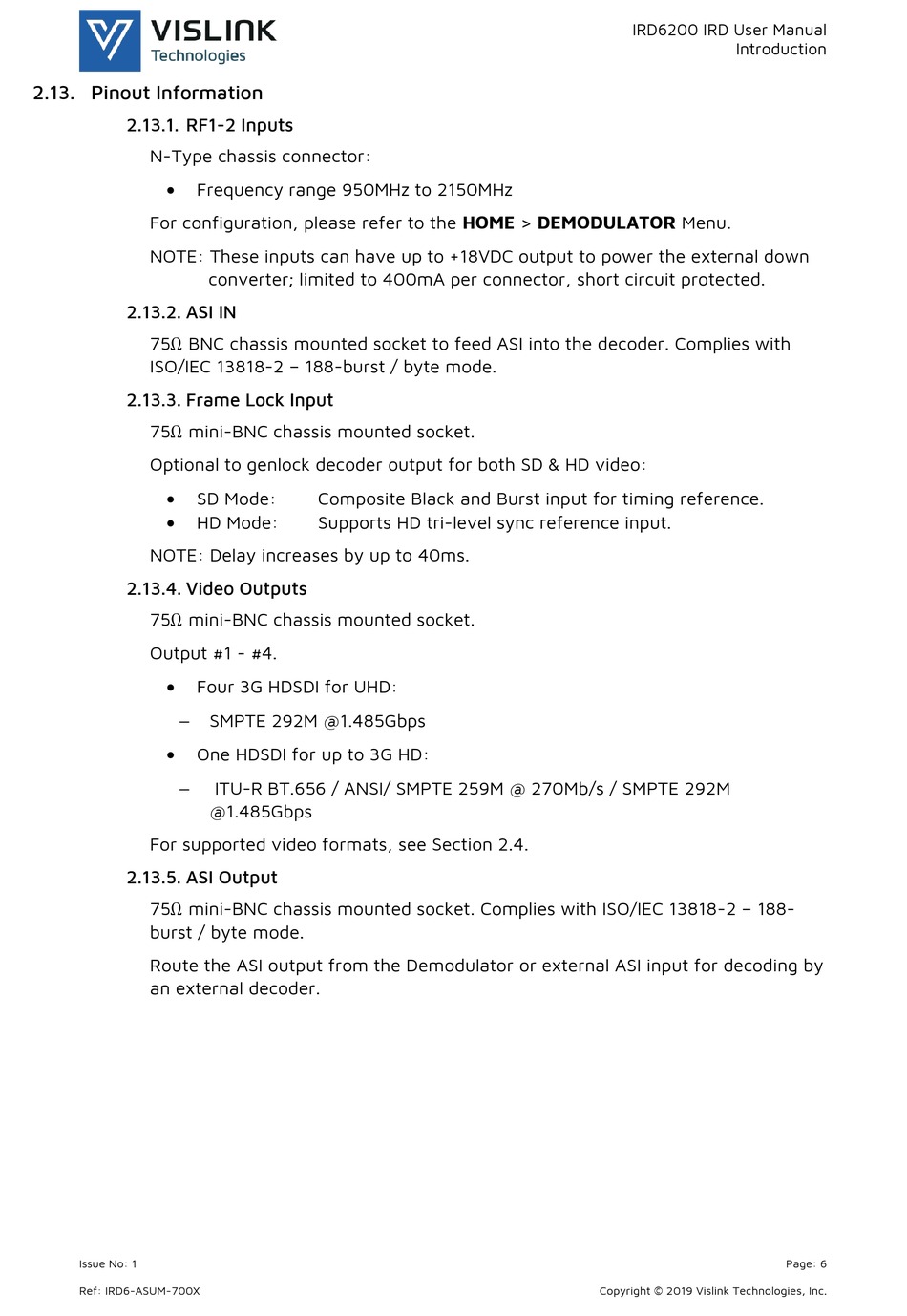

2.13. Pinout Information

2.13.1. RF1-2 Inputs

N-Type chassis connector:
 Frequency range 950MHz to 2150MHz
For configuration, please refer to the HOME > DEMODULATOR Menu.
NOTE: These inputs can have up to +18VDC output to power the external down

2.13.2. ASI IN

75Ω BNC chassis mounted socket to feed ASI into the decoder. Complies with
ISO/IEC 13818-2 – 188-burst / byte mode.

2.13.3. Frame Lock Input

75Ω mini-BNC chassis mounted socket.
Optional to genlock decoder output for both SD & HD video:
 SD Mode:
 HD Mode:
NOTE: Delay increases by up to 40ms.

2.13.4. Video Outputs

75Ω mini-BNC chassis mounted socket.
Output #1 - #4.
 Four 3G HDSDI for UHD:

 One HDSDI for up to 3G HD:

For supported video formats, see Section 2.4.

2.13.5. ASI Output

75Ω mini-BNC chassis mounted socket. Complies with ISO/IEC 13818-2 – 188-
burst / byte mode.
Route the ASI output from the Demodulator or external ASI input for decoding by
an external decoder.
Issue No: 1
Ref: IRD6-ASUM-700X
converter; limited to 400mA per connector, short circuit protected.
Composite Black and Burst input for timing reference.
Supports HD tri-level sync reference input.
SMPTE 292M @1.485Gbps
ITU-R BT.656 / ANSI/ SMPTE 259M @ 270Mb/s / SMPTE 292M
@1.485Gbps
