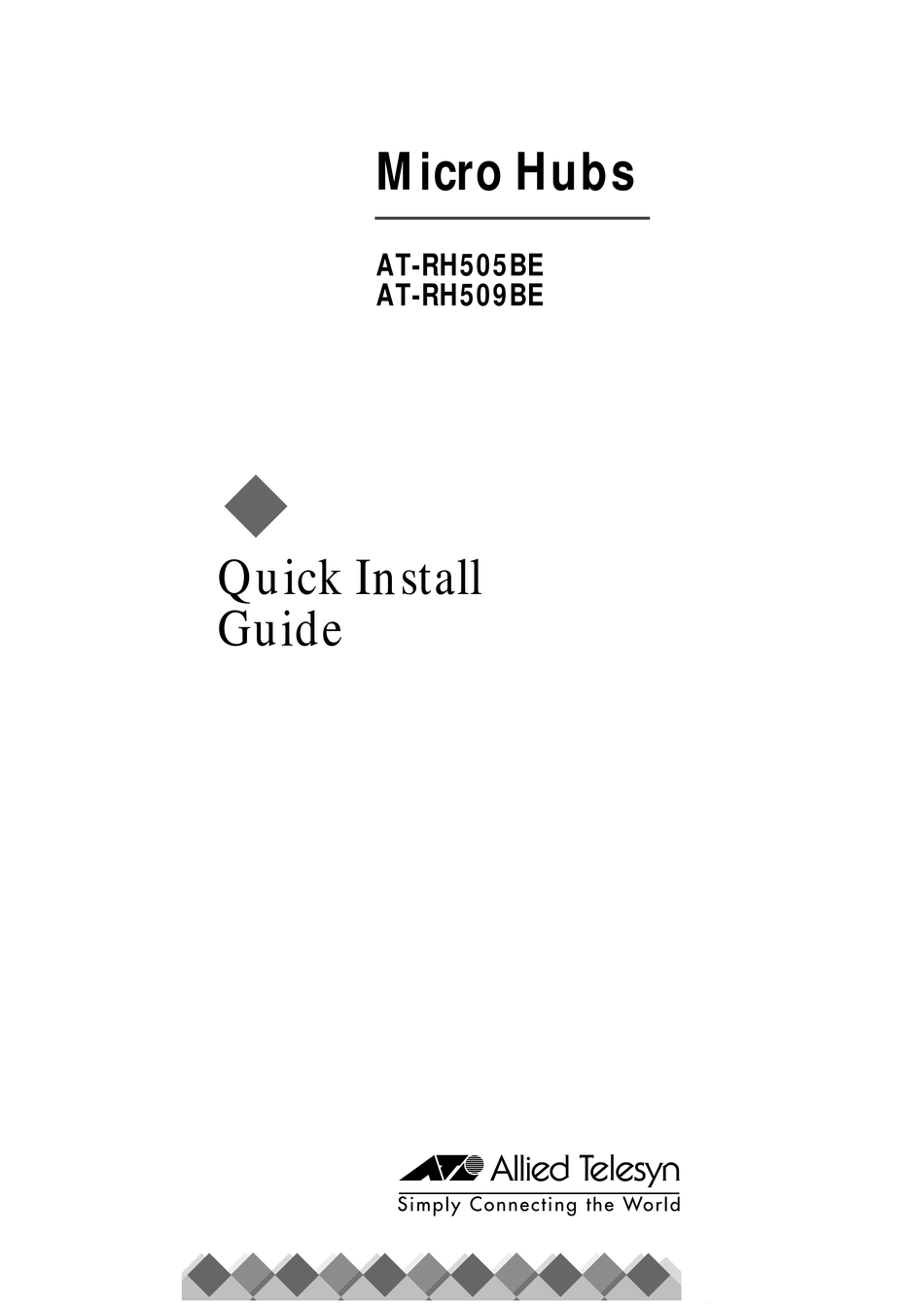

- Page 1 Micro Hubs AT-RH505BE AT-RH509BE Quick Install Guide...
- Page 2 Electrical Safety IMPORTANT: This equipment must be installed in accordance with safety precautions. To see any safety information in this guide in multiple languages, refer to the “Translated Safety Information Booklet” at the page number indicated by the icon. Elektrische Sicherheit WICHTIG: Für die Installation dieses Gerätes ist die Einhaltung von Sicherheitsvorkehrungen erforderlich.
-
Page 3: Verifying Package Contents
• Self-adhesive rubber feet (4) • Velcro kit (2 pads) AT-RH505BE and AT-RH509BE Hub Overview The AT-RH505BE and AT-RH509BE five (10 Mbps)and nine-port hubs are 10Base-T desktop Ethernet hubs that include: • Four/eight 10Base-T ports (RJ45) • One BNC interface for 10Base2 backbone support and stacking •... - Page 4 5V 1.2A BNC Port - Connect RJ45 Ports (1-4) - Connect Power - Use adapter a thin coax segment workstations or other devices shipped with hub to this port that use twisted pair cabling Desktop and Wall Installation To install a single AT-RH500 Series hub either with the Velcro kit or on the desktop, do the following: For wall installation, place two Velcro pads on the bottom of the unit, then place the other pads on a wall.
- Page 5 Table 2 AT-RH500 Series Hubs LEDs Color State Description LINK/RCV Green ON indicates that the link test pulse is (Ports) receiving properly. Flashing Flashing indicates that a packet is being received on the specified port. OFF indicates that a connection defect is occurring such as UTP cable.
-
Page 6: Troubleshooting
BNC port, ignore the status LED for this port. Table 3 Technical Specifications Physical Dimensions W x D x H 99 mm x 54 mm x 21 mm (AT-RH505BE) 158 mm x 54 mm x 21 mm (AT-RH509BE) Weight 180 g (AT-RH505BE) 270 g (AT-RH509BE) Environmental... - Page 7 Where To Find Allied Telesyn Location Phone/Fax Americas 1 (800) 428-4835 U.S.A., Canada, Mexico, Central America, 1 (918) 628-3222 South America Asia (+65) 383-3832 Singapore, Taiwan, Thailand, Malaysia, (+65) 383-3830 Indonesia, Korea, Philippines, China, India Australia (+61) 2-943-5111 Australia, New Zealand (+61) 2-943-4966 France (+33) 1-60-92-15-32...
- Page 8 Copyright © 1998, 1999 Allied Telesyn International, Corp 960 Stewart Drive Suite B, Sunnyvale CA 94086 USA All rights reserved. No part of this publication may be reproduced without prior written permission from Allied Telesyn International, Corp. CentreCOM is a registered trademark of Allied Telesyn International, Corp Ethernet is a registered trademark of Xerox Corporation.
