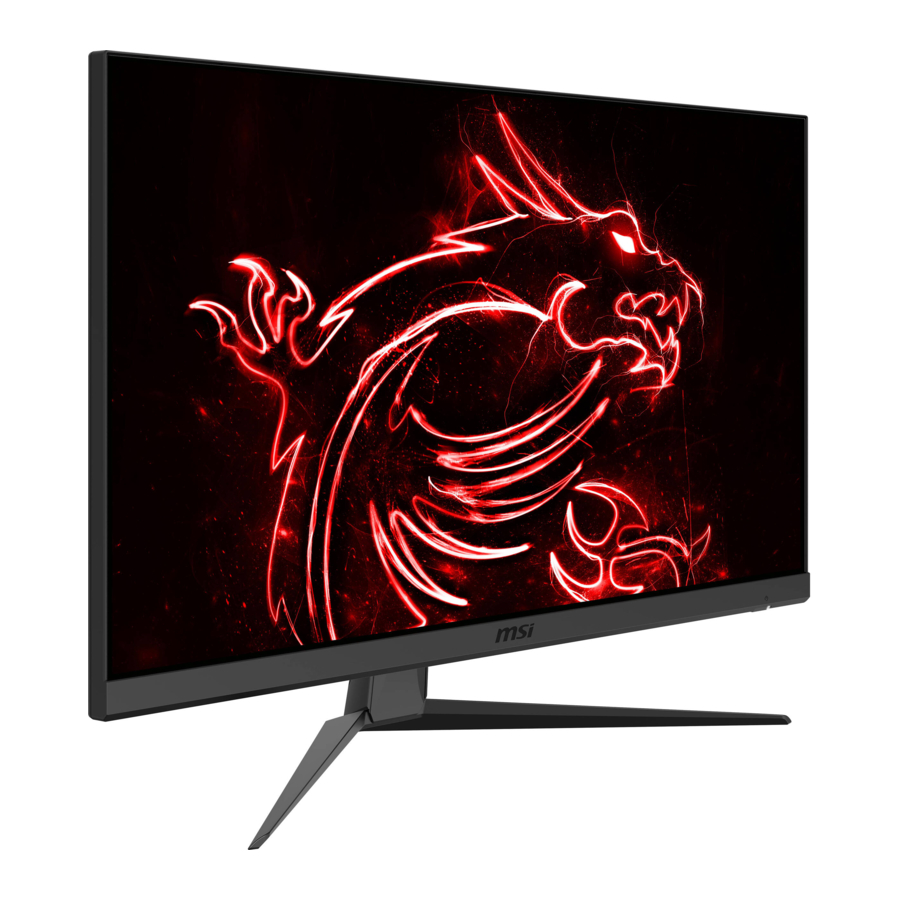

- Page 1 Optix Series LCD Monitor Optix MAG2742 (3CA7) Optix MAG274R2 (3CA7)
-
Page 2: Table Of Contents
Contents Getting Started ......................3 Package Contents ....................3 Installing the Monitor Stand ................... 4 Adjusting the Monitor ..................... 6 Monitor Overview ....................8 Connecting the Monitor to PC ................10 OSD Setup ........................11 Navi Key ........................ 11 Hot Key ........................11 OSD Menus........................ -
Page 3: Getting Started
Getting Started This chapter provides you with the information on hardware setup procedures. While connecting devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity. Package Contents Optix MAG2742 (3CA7) Monitor Optix MAG274R2 (3CA7) Quick Start Guide Documentation Registration Card... -
Page 4: Installing The Monitor Stand
Installing the Monitor Stand 1. Leave the monitor in its protective foam packaging. Align the stand to the monitor groove. 2. Tighten the stand with screws. 3. Connect the stand base to the stand and tighten the screw to secure the stand base. - Page 5 Optix MAG274R2 Getting Started...
-
Page 6: Adjusting The Monitor
Adjusting the Monitor This monitor is designed to maximize your viewing comfort with its adjustment ⚠ capabilities. Important ∙ Avoid touching the display panel when adjusting the monitor. ∙ Please slightly tilt the monitor backwards before pivoting it. Optix MAG2742 Getting Started... - Page 7 Optix MAG274R2 100mm Getting Started...
-
Page 8: Monitor Overview
Monitor Overview Getting Started... - Page 9 Power Button Navi Key Cable Routing Hole Kensington Lock Macro Key To activate OSD Application. DisplayPort HDMI Port USB Type-C Port This port supports DisplayPort Alternate (DP Alt) Mode and up to 5V/3A (15W) power delivery. It only carries video signals and doesn’t support data transmission function.
-
Page 10: Connecting The Monitor To Pc
Connecting the Monitor to PC 1. Turn off your computer. 2. Connect the video cable from the monitor to your computer. 3. Assemble the monitor power adapter & power cord. (Figure A) 4. Connect the power adapter to the monitor power jack. (Figure B) 5. -
Page 11: Osd Setup
OSD Setup ⚠ This chapter provides you with essential information on OSD Setup. Important All information is subject to change without prior notice. Navi Key The monitor comes with a Navi Key, a multi-directional control that helps navigate the On-Screen Display (OSD) menu. Up/Down/Left/Right: ∙... -
Page 12: Osd Menus
OSD Menus Gaming 1st Level Menu 2nd/3rd Level Menu Description ∙ All items can be adjusted by users. Game Mode User ∙ Use Up or Down Button to select and preview mode effects. ∙ Press the OK Button to confirm and Racing apply your mode type. - Page 13 1st Level Menu 2nd/3rd Level Menu Description ∙ Default is OFF. MPRT ∙ MPRT (Motion Picture Response Time) can be enabled only at Screen Refresh Rate of 85Hz or higher. ∙ When MPRT is enabled, Panel Response Time must meet 1ms MPRT.
-
Page 14: Professional
1st Level Menu 2nd/3rd Level Menu Description ∙ Adaptive-Sync prevents screen Adaptive-Sync tearing. ∙ DisplayPort or HDMI default is OFF and can be adjusted ON/OFF in any mode, any resolution, any input source and any screen refresh rate. ∙ MPRT will be disabled if Adaptive- Sync is enabled. -
Page 15: Image
1st Level Menu 2nd Level Menu Description ∙ Image Enhancement enhances image Image Enhancement edges to improve their acutance. ∙ Users can adjust Image Enhancement in Weak any mode. Medium Strong Strongest Image 1st Level Menu 2nd/3rd Level Menu Description ∙... -
Page 16: Input Source
Input Source 1st Level Menu 2nd Level Menu Description ∙ Users can adjust Input Source in any mode. HDMI1 HDMI2 Type-C ∙ Users can use the Navi Key to select Input Auto Scan Source at below status: • While “Auto Scan” is set to “OFF” with the monitor at power saving mode;... -
Page 17: Setting
Setting 1st Level Menu 2nd Level Menu Description 繁體中文 ∙ Language factory default is English. Language ∙ Users have to press the OK Button to English confirm and apply the Language setting. ∙ Language is an independent setting. Français Users’ own language setting will override Deutsch the factory default. - Page 18 1st Level Menu 2nd Level Menu Description ∙ Default is OFF. HDMI CEC ∙ HDMI CEC (Consumer Electronics Control) supports Sony PlayStation®, Nintendo® Switch™, and various audio-visual devices that are CEC-capable. ∙ If HDMI CEC is set to ON: • The monitor will automatically power on when the CEC device is turned on.
-
Page 19: Specifications
Specifications Monitor Optix MAG2742 Optix MAG274R2 Size 27 inch Panel Type Flat Panel Type Resolution 1920 x 1080 @165Hz Aspect Ratio 16:9 Brightness (nits) 300 (typ.) ∙ 0~69%: 5V/3A ∙ 70~89%: 5V/2A Brightness: USB Type-C Power Delivery ∙ 90~100%: 5V/1A Contrast Ratio 1000:1 Refresh Rate... - Page 20 Monitor Optix MAG2742 Optix MAG274R2 Adjustment (Height) 0 ~ 100mm Adjustment (Swivel) -75° ~ 75° Adjustment (Pivot) -90° ~ 90° Kensington Lock ∙ Plate Type: 100 x 100 mm ∙ Screw Type: M4 x 10 mm VESA Mounting • Thread Diameter: 4 mm •...
-
Page 21: Preset Display Modes
Preset Display Modes Optix MAG2742/ Optix MAG274R2 Standard Resolution HDMI DP/ Type-C 640x480 @60Hz @67Hz @72Hz @75Hz Dos-Mode 720x480 @60Hz 720x576 @50Hz SVGA 800x600 @56Hz @60Hz @72Hz @75Hz 1024x768 @60Hz @70Hz @75Hz SXGA 1280x1024 @60Hz @75Hz WXGA+ 1440x900 @60Hz WSXGA+ 1680x1050 @60Hz Full HD... -
Page 22: Troubleshooting
Troubleshooting The power LED is off. • Press the monitor power button again. • Check if the monitor power cable is properly connected. No image. • Check if the computer graphics card is properly installed. • Check if the computer and monitor are connected to electrical outlets and are turned on. -
Page 23: Safety Instructions
∙ Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. ∙ If this device comes with an adapter, use only the MSI provided AC adapter approved for use with this device. - Page 24 California, USA: The button cell battery may contain perchlorate material and requires special handling when recycled or disposed of in California. For further information please visit: https://dtsc.ca.gov/perchlorate/ Environment ∙ To reduce the possibility of heat-related injuries or of overheating the device, do not place the device on a soft, unsteady surface or obstruct its air ventilators.
-
Page 25: Tüv Rheinland Certification
TÜV Rheinland Certification TÜV Rheinland Low Blue Light Certification Blue light has been shown to cause eye fatigue and discomfort. MSI now offers monitors with TÜV Rheinland Low Blue Light certification to ensure users’ eye comfort and well-being. Please follow the instructions below to reduce the symptoms from extended exposure to the screen and blue light. -
Page 26: Regulatory Notices
1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. MSI Computer Corp. 901 Canada Court, City of Industry, CA 91748, USA (626) 913-0828 www.msi.com... - Page 27 Vietnam RoHS As from December 1, 2012, all products manufactured by MSI comply with Circular 30/2011/TT-BCT temporarily regulating the permitted limits for a number of hazardous substances in electronic and electric products.
- Page 28 Copyright and Trademarks Notice Copyright © Micro-Star Int’l Co., Ltd. All rights reserved. The MSI logo used is a registered trademark of Micro-Star Int’l Co., Ltd. All other marks and names mentioned may be trademarks of their respective owners.
