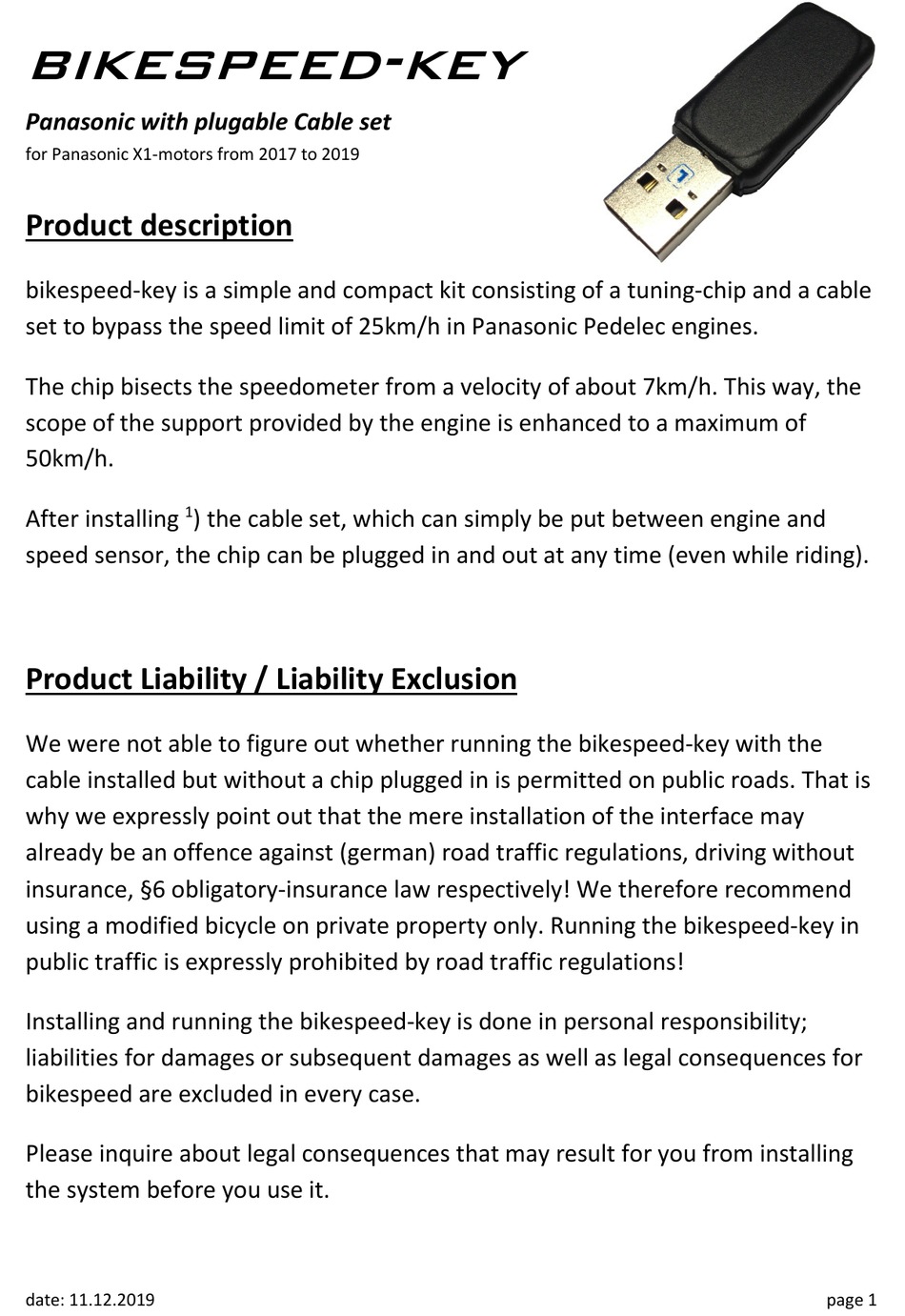

bikespeed-key
Panasonic with plugable Cable set
for Panasonic X1-motors from 2017 to 2019
Product description
bikespeed-key is a simple and compact kit consisting of a tuning-chip and a cable
set to bypass the speed limit of 25km/h in Panasonic Pedelec engines.
The chip bisects the speedometer from a velocity of about 7km/h. This way, the
scope of the support provided by the engine is enhanced to a maximum of
50km/h.
1
After installing
) the cable set, which can simply be put between engine and
speed sensor, the chip can be plugged in and out at any time (even while riding).
Product Liability / Liability Exclusion
We were not able to figure out whether running the bikespeed-key with the
cable installed but without a chip plugged in is permitted on public roads. That is
why we expressly point out that the mere installation of the interface may
already be an offence against (german) road traffic regulations, driving without
insurance, §6 obligatory-insurance law respectively! We therefore recommend
using a modified bicycle on private property only. Running the bikespeed-key in
public traffic is expressly prohibited by road traffic regulations!
Installing and running the bikespeed-key is done in personal responsibility;
liabilities for damages or subsequent damages as well as legal consequences for
bikespeed are excluded in every case.
Please inquire about legal consequences that may result for you from installing
the system before you use it.
date: 11.12.2019
page 1
Advertisement
Table of Contents
Related Manuals for Bikespeed bikespeed-key
Summary of Contents for Bikespeed bikespeed-key
- Page 1 Panasonic X1-motors from 2017 to 2019 Product description bikespeed-key is a simple and compact kit consisting of a tuning-chip and a cable set to bypass the speed limit of 25km/h in Panasonic Pedelec engines. The chip bisects the speedometer from a velocity of about 7km/h. This way, the scope of the support provided by the engine is enhanced to a maximum of 50km/h.
- Page 2 We expressly point out that using the bikespeed-key leads to a loss of warranty by the manufacturer. Furthermore there are no claims to product liability for your pedelec/e-bike viable for the manufacturer and bikespeed. bikespeed especially cannot guarantee that brakes, frames, running gears, tires etc.
- Page 3 (2). Locate the 2-pin connector from the speed sensor (white, rectangular, 2-pole). These are probably hidden in the frame. Just follow the cables. Connect the pins just loosened with the pins of the bikespeed cable set. page 3...
- Page 4 Please use the following classification for the connection of the cables: Panasonic speed-sensor bikespeed-connection cable green black green brown blue green The screw terminal for the green conductor of the bikespeed-cable set is additionally marked with a red point. page 4...
- Page 5 (Please note the torque: keep to the specifications of the producer). Reattach all the covers removed before. Reinsert the battery. Put the bikespeed-key into the socket of the cable set and off we go! Have fun, your bikespeed-team! All statements without guarantee! We point out that the installation may only be carried out by an expert.
- Page 6 page 6...
- Page 7 Hint for disposal Electric and electronic devices that have become waste are called old devices. Owners of such old devices have to bring these to recycling facilities, where these are handled and recorded separately from urban solid waste. Old devices must not end up in the household refuse.
- Page 8 GmbH Huberstr. 17 97084 Wuerzburg Hereby declares that the following product: Product name : bikespeed-key kit Production year: 2013-2020 is in accordance with all appropriate regulations of the EMV-guideline (EMC) 2004/108/EU, the disposal-guideline 2012/19/EU as well as the RoHS-guideline 2011/65/EU.
