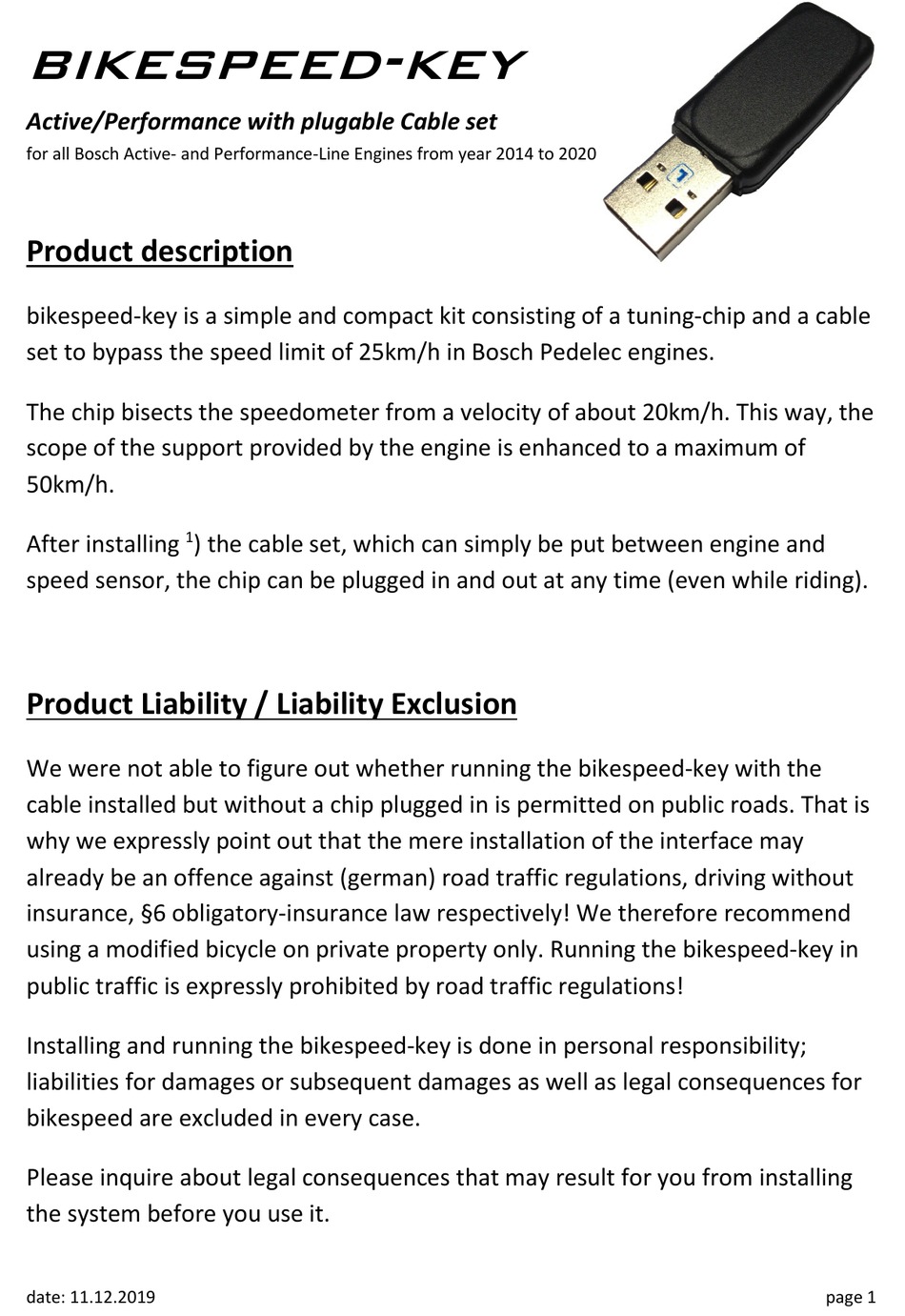

bikespeed-key
Active/Performance with plugable Cable set
for all Bosch Active- and Performance-Line Engines from year 2014 to 2020
Product description
bikespeed-key is a simple and compact kit consisting of a tuning-chip and a cable
set to bypass the speed limit of 25km/h in Bosch Pedelec engines.
The chip bisects the speedometer from a velocity of about 20km/h. This way, the
scope of the support provided by the engine is enhanced to a maximum of
50km/h.
1
After installing
) the cable set, which can simply be put between engine and
speed sensor, the chip can be plugged in and out at any time (even while riding).
Product Liability / Liability Exclusion
We were not able to figure out whether running the bikespeed-key with the
cable installed but without a chip plugged in is permitted on public roads. That is
why we expressly point out that the mere installation of the interface may
already be an offence against (german) road traffic regulations, driving without
insurance, §6 obligatory-insurance law respectively! We therefore recommend
using a modified bicycle on private property only. Running the bikespeed-key in
public traffic is expressly prohibited by road traffic regulations!
Installing and running the bikespeed-key is done in personal responsibility;
liabilities for damages or subsequent damages as well as legal consequences for
bikespeed are excluded in every case.
Please inquire about legal consequences that may result for you from installing
the system before you use it.
date: 11.12.2019
page 1
Advertisement
Table of Contents
Related Manuals for Bikespeed bikespeed-key
Summary of Contents for Bikespeed bikespeed-key
- Page 1 Bosch Active- and Performance-Line Engines from year 2014 to 2020 Product description bikespeed-key is a simple and compact kit consisting of a tuning-chip and a cable set to bypass the speed limit of 25km/h in Bosch Pedelec engines.
- Page 2 We expressly point out that using the bikespeed-key leads to a loss of warranty by the manufacturer. Furthermore there are no claims to product liability for your pedelec/e-bike viable for the manufacturer and bikespeed. bikespeed especially cannot guarantee that brakes, frames, running gears, tires etc.
- Page 3 Installing the bikespeed-key cable set: Tools required: Allen Key (size 8), Crank puller (Lifu), Torx (T20), slotted screwdriver with a blade of 2.5mm or Bit holder Remove the attachment screw of the treadle on the opposite side of the chain guide. (Left) For most...
- Page 4 The correct socket is marked red in the picture. The removed plug is two-pole and grey. Put the plug of the bikespeed-cable set into the socket that has become available. The plug only fits into this socket, only in the correct direction.
- Page 5 Use e.g. cable strap to fasten the socket and the cable. Carry the cable to the area of the gravel deflector. The cable of the bikespeed-key cable set can be shortened to the length required. Skin the brown and grey conductor of the bikespeed- cable set (USB- slot) by about 5mm.
- Page 6 The screw terminal for the green conductor of the bikespeed-cable set is additionally marked with a red point. Assemble the gravel deflector and the treadle in reverse order. (Keep to the tightening torques of the manufacturer! Reinsert the battery.
- Page 7 Hint for disposal Electric and electronic devices that have become waste are called old devices. Owners of such old devices have to bring these to recycling facilities, where these are handled and recorded separately from urban solid waste. Old devices must not end up in the household refuse.
- Page 8 GmbH Huberstr. 17 97084 Wuerzburg Hereby declares that the following product: Product name : bikespeed-key kit Production year: 2013-2020 is in accordance with all appropriate regulations of the EMV-guideline (EMC) 2004/108/EU, the disposal-guideline 2012/19/EU as well as the RoHS-guideline 2011/65/EU.
