Matrix Fitness MX-FW62 Assembly Manual

IMPORTANT SAFETY INSTRUCTIONS
PROPER USAGE
1. Do not use any equipment in any way other than designed or intended by the manufacturer.
It is imperative that weight stack machines as well as any other MATRIX Fitness Systems, Inc. equipment are used properly
to avoid injury.
2. Keep hands and feet clear at all times from moving parts to avoid injury.
CHECK FOR DAMAGED PARTS
1. DO NOT use any equipment that is damaged and or has worn or broken parts. Use only replacement parts supplied by
MATRIX Fitness Systems, Inc.
2. MAINTAIN LABELS AND NAMEPLATES: Do not remove labels for any reason. They contain important information.
If unreadable or missing, contact your local dealer for a replacement.
3. SECURING EQUIPMENT: All equipment MUST be secured to the floor to stabilize and eliminate rocking or tipping over.
This must be performed by a licensed contractor.
4. MAINTAIN ALL EQUIPMENT: Preventative maintenance is the key to smooth operating equipment as well as keeping your
liability to a minimum. Equipment needs to be inspected at regular intervals.
5. Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so.
MATRIX Fitness Systems, Inc. will provide service and maintenance training at our corporate facility upon request.
SPECIFIC OPERATING WARNINGS
1. Routinely inspect all accessory clips that join attachments to the machine and replace at the first sign of wear.
2. Use only weight selector pins supplied by MATRIX Fitness Systems, Inc. on weight stacks. Substitutes are forbidden.
3. Belts and cables pose an extreme liability if used when frayed. Always replace any belts and cables at first sign of wear
(consult MATRIX Fitness Systems, Inc. if uncertain).
4. Do not allow users to wear loose fitting clothing while using equipment. It is also recommended to have users' secure long
hair back and up to avoid contact with moving parts.
5. Fully insert weight selector pins. Partial insertion can cause weights to fall unexpectedly.
Never remove selector pin if any weights are suspended. Never attempt to release jammed weights or parts.
PARTS DESCRIPTIONS
B20 MD0101007C Slide Pulley(90) 90.2 4
B21 MB0304036B Ellipse Foot 4
B22 MB06C8001C Pulley Cover ABS 8
B24 SP1027001AA Balance Block 2
B25 ML0247010F Cable 4.8×2330 4
B26 MJ4905002D Hook S45C 20
B27 ME0501028 Spring Washer SW12 12.2×21.5×3t 20
B28 ME0502174 Pin Tether Bolt Spring Washer 13× 26×2.5t 20
B29 ME0112162 Bolt, Cap-End Allen M12×1.75P×25L 20
B30 ME0101007 Bolt M4×0.7P×10L 16
B33 SP1028001AA Counterweight Stop 4
B34 MJ4906002G Guide Rod 2
B42 MB0604044AA Bushing 4
B43 ME0111001AC Bolt, Round-Hex Socket M8×1.25P×15L 8
M09 ME0901028 Internal C-Clip R-55 4
M10 MD0510006A Linear Bearing THOMSON SSE M30 WW 4
M11 MD0501009 Sealed Bearing Set 6006ZZ 4
M13 ME0901029 Internal C-Clip R-47 4
M14 ME0902018 Top Plate Guide Sleeve C-Clip S-30 2
M15 ME0512002A Roll Washer S45C 2
M16 MB1119002AA POM Stop POM 8
N07 MD0504038A Weight Stack Bushing LFF-3020 6
N10 MB0501007CA Rubber Bumper 2
V12 ME1201002 Rivet 1/8"×7.5L 1
Z01 ME1007033A Allen Wrench M2.5×55L 1
Z02 ME1007024A Allen Wrench M5×70L 1
Z03 ME1007031A Allen Wrench M6×80L 1
Z04 ME1007027A Allen Wrench M8×120L 1
Z05 ME1005001 Phillips Screwdriver 1
Z07 ME1001017A Wrench #13 1
Z08 ME1001019A Wrench #17 10
Z11 ME0501028 Spring Washer SW12 12.2×21.5×3t 10
Z12 ME0502174 Pin Tether Bolt Spring Washer 13× 26×2.5t 10
Z13 ME0112162 Bolt, Cap-End Allen M12×1.75P×25L 14
Z15 ME0502172 Pin Tether Bolt Spring Washer 8.4× 15.5×1.6t 14
Z16 ME0112024AE Bolt, Cap-End Allen M8×1.25P×20L 4
Z17 ME0112144 Bolt, Cap-End Allen M10×1.5P×25L 4
Z18 ME0112175 Bolt, Cap-End Allen M10×1.5P×80L 4
Z19 ME0112182A Bolt, Cap-End Allen M10×1.5P×120L 4
Z20 ME0112217A Bolt, Cap-End Allen M10×1.5P×100L 12
Z21 ME0502173 Pin Tether Bolt Spring Washer 10.5× 18×2.0t 12
Z22 ME0501027 Spring Washer SW10 10.2×18.4×2.5t 8
Z23 ME0204028 Nylon Nut M10×1.5P 4
Z24 ME0104045AB Bolt, Round-Head Allen M6×1.0P×15L 12
Z26 ME0105051AC Screw M6×1.0P×15L 6
Z27 ME0114059A Settle Bolt M5×0.8P×8L 6
Z30 ME0204008 Nylon Nut M8×1.25P
Sep 24, 2004
ASSEMBLY GUIDE
MX-FW62

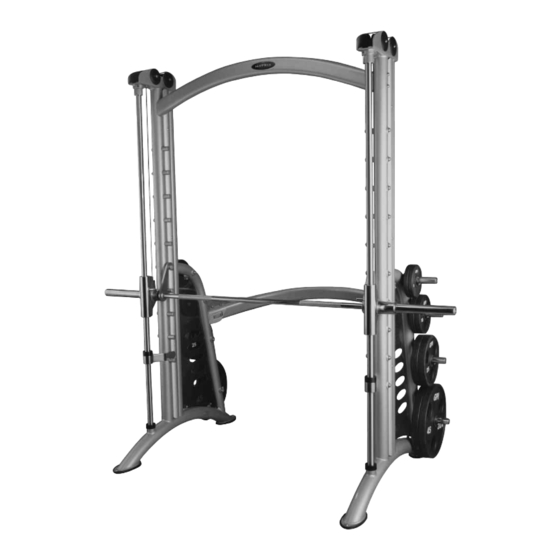

SMITH MACHINE
F I T N E S S S Y S T E M
