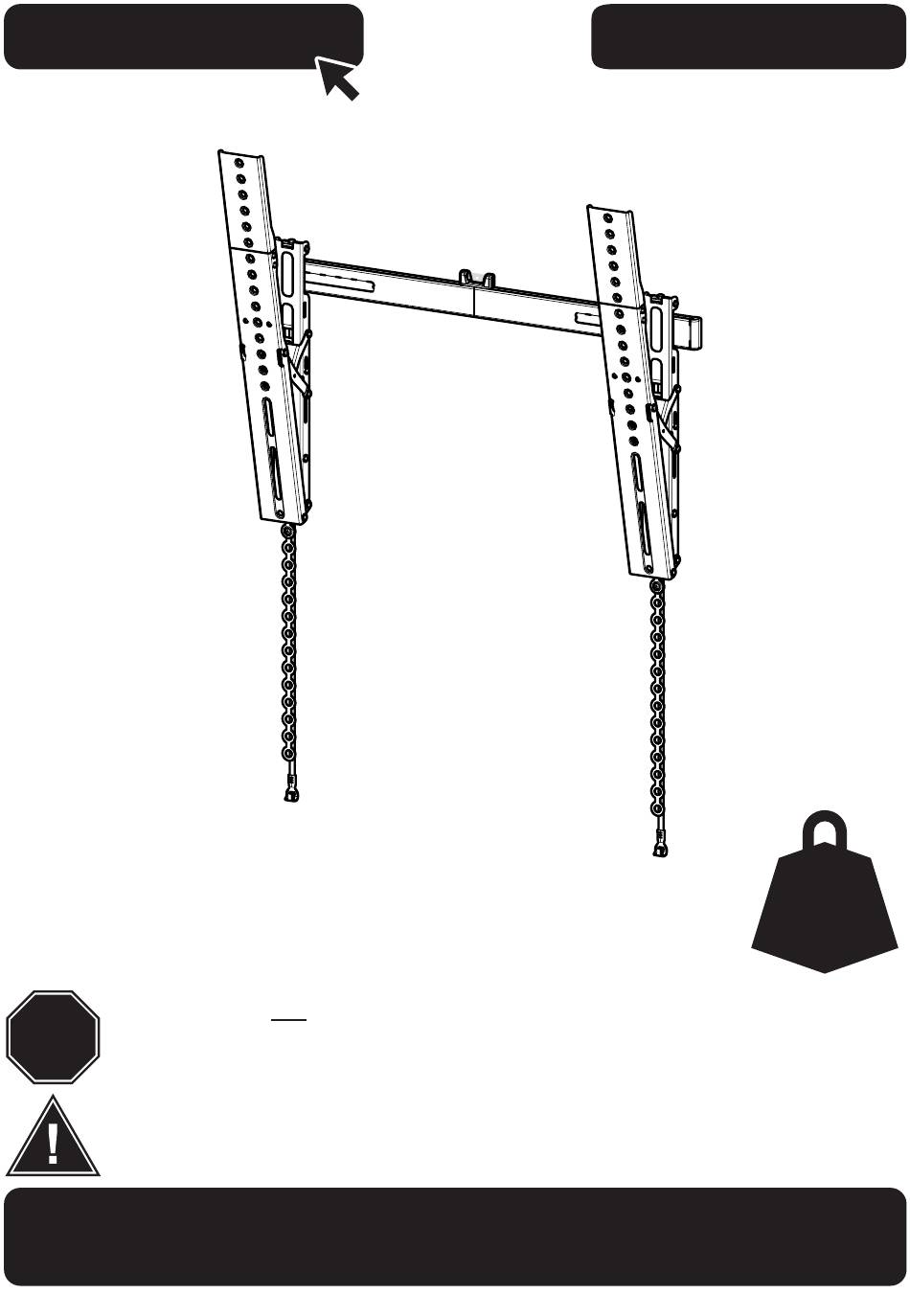

469126
jl.avfgroup.com
rev00
60kg
132lbs
Read through ALL instructions before commencing installation.
STOP
If you have any questions about this product or issues with installation, contact
the customer services helpline before returning this product to the store.
This TV Wall Mount is intended for use with televisions weighing Maximum
60kg (150lbs)
. Use with products heavier than maximum weights may
result in instability causing possible injury.
0333 320 0463 (UK)
CUSTOMER SERVICES HELPLINE NUMBER:
AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for AVF 469126
Summary of Contents for AVF 469126
- Page 1 This TV Wall Mount is intended for use with televisions weighing Maximum 60kg (150lbs) . Use with products heavier than maximum weights may result in instability causing possible injury. 0333 320 0463 (UK) CUSTOMER SERVICES HELPLINE NUMBER: AVF Group Ltd. Hortonwood 30, Telford, Shropshire, TF1 7YE, England...
-
Page 2: Assembly Overview
Assembly Overview Determine your TV position Fit the TV Brackets JXPL601 469127 Use Height Calculator result to position these drill holes When mounting to a solid wall, attach the wall plate using all four holes marked Hang the TV Fit the Wall Rail Suitable Wall Types Wood Stud Solid Wall... - Page 3 It is the responsibility of the installer to ensure that the mounting wall is of a suitable standard and void of any services (eg gas, electricity, water etc). AVF accept no responsibility for any damage or loss caused by installing this product in a substandard wall.
- Page 4 Tools Recommended Stud Finder Ø3mm (1/8”) Ø10mm (25/64”) Wood Masonry TV Screws, Reducers and Spacers...
- Page 5 Boxed Parts TV Return Strap TV Release Cord JXPL601 469127 Use Height Calculator result to position these drill holes When mounting to a solid wall, attach the wall plate using all four holes marked...
- Page 6 Measure the TV fixing holes Width and Height X 75 - 600mm TV Fixing Holes Y 75 - 400mm If width X is greater than 600mm or height Y greater than 400mm STOP installation now and contact the customer helpline You are provided with diameters of TV fixing screws , M4, M5, M6 and M8.
- Page 7 Preparing the TV Brackets To ensure maximum tilt is possible after installation you will need to ensure that your TV does not clash with the wall. Clash Bottom No Clash Bottom No Clash Bottom If the top of the TV Brackets extend above the top of the TV you can remove the top portion of the TV Brackets if required.
- Page 8 Fitting the TV Brackets No Spacers Spacers For TVs with flat / unobstructed back. For TVs with irregular / obstructed back. WARNING If your TV has an irregular/obstructed back or if you have any issues fitting to the back of your TV with the supplied screws, please call the customer services helpline.
- Page 9 For easy access to some of the TV fixing holes, follow the procedure on the next page. If required Attach the brackets to the back of your TV using suitable screw, reducer and spacer combinations. After completing step you will have fixings left over, please keep for future reference.
- Page 10 Easy Access to TV Fixing Holes This procedure is only necessary if you are having difficulty fitting screws into your TV. Disassembly and Reassembly You must fully reassemble the TV Brackets when you have finished fixing them to the back of the TV.
- Page 11 Preparing the Wall Rail Marking Wall for Drill Points For this step you will need your Wall Marking Template WT. JXPL601 469127 Use Height Calculator result to position these drill holes When mounting to a solid wall, attach the wall plate using all four holes marked To determine the exact position for your drill points use the Height Calculator app.
- Page 14 Fitting the Wall Rail Covers Hanging the TV Fully extend the TV Brackets before connecting the TV. Extend Arm Extend Catch Extend Stand...
- Page 15 Click! If the catch doesn’t click into place when you connect your TV, pull the top of your TV forward to seat it correctly. When the catch has clicked into place beneath the wall bracket your TV will be fully secured to the wall.
- Page 16 Hide the TV Release Cords These cords are for removing the TV only. They MUST be positioned as shown, until required, to avoid accidental usage. Return the TV to the Wall Carefully pull BOTH TV Return Straps towards you at the same time. Use them to pull the bottom of the TV away from the wall.
- Page 17 As you pull the bottom of the TV away from the wall the stands will click back into their closed position. Keep the TV Return Straps tight and gently lower the bottom of the TV to the wall.
- Page 18 Hide the TV Return Straps TV Levelling (optional)
- Page 19 Adjust Tilt Resistance (optional) Adjust screws to achieve perfect tilt resistance if required. Ensure all screws are adjusted equally. You may need to remove the TV from the wall to gain easy access to the screws. The installation of your TV Wall Mount is now complete. The rest of this instruction leaflet is operation and adjustment advice for your TV Wall Mount.
-
Page 20: Cable Access
Cable Access Fully tilt forward Grip screen centrally at top to tilt Carefully pull the bottom of the TV away from the wall using two hands. Pull the TV past vertical to release the stands, which will automatically drop into position. Attach or remove TV cables when in this position. - Page 21 To return the TV to the wall, carefully pull BOTH TV Return Straps towards you at the same time. Use them to pull the bottom of the TV away from the wall. As you pull the bottom of the TV away from the wall the stands will click back into their closed position.
- Page 22 To Remove the TV Fully tilt forward Grip screen centrally at top to tilt Carefully pull the bottom of the TV away from the wall using two hands. Pull the TV past vertical to release the stands, which will automatically drop into position.
- Page 23 Unclip TV Release Cords from the Wall Rail. Pull both TV release cords at the same time to unlock the TV. Pull the bottom of the TV away from the wall so the catch cannot re-engage. Lift and remove the TV from the Wall Bracket.
- Page 24 Tilt Grip screen centrally at top to tilt...
