Assembly Instructions
SYZ84-S-XL
Stand
Thank you for purchasing AVF's SYZ84 Stand
This product is designed for free standing mounting of single plasma/lcd display sized 40"-58" (S), 58"-80" (X) weighing
Confirm all hardware is included before you begin assembly.
Read these instructions start to finish before beginning installation.
Have at least 3 people mount the display.
Note: If you cannot understand these instructions or are concerned about safety of the installation contact a qualified
contractor or contact AVF at 1-877-834-3876

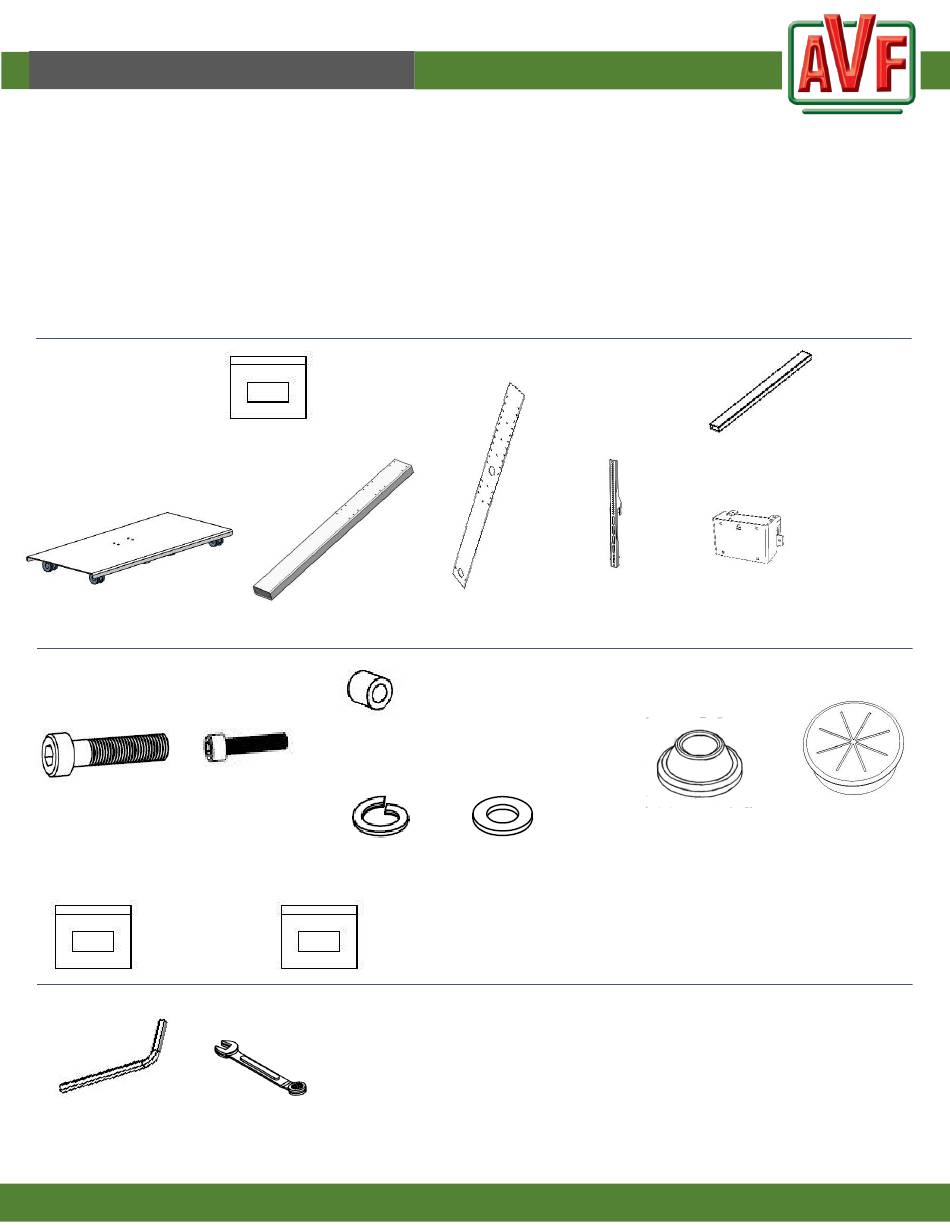

Supplied Parts
Base with wheels
(1)
Supplied Hardware Kapp 42/84
M10 X 35
(4)
Kit TV52-70 (2)
Tools required
Not all hardware supplied will be used, depending on the manufacturer of your display.
www.video-furn.com
www.video-furn.com
•
Kit Kapp 42/84
•
2 Kit TV52-70
•
Kit Grommet
& Bumper
Hardware Bag
(3)
Structural Tube
(1)
Black Spacer
(4)
M6 X 25
(10)
M6 Lock Washer
(6)
Kit Grommet & Bumper
Hex Key M6 (Supplied in Hardware Kit Kapp 42)
Hex Key 8mm (Supplied in Hardware Kit TV 52-70)
10mm wrench
TV Bracket
Back Plate
(2)
(1)
Supplied Hardware Bumper & Grommet
M6 Washer
(6)
190 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | 1.877.834.3876
190 Don Hillock Drive |Aurora |Ontario|L4G 0G9 | 1.877.834.3876
V
Tube
Tube Bracket
(1)
Adhesive Bumper
(2)
F
I
(1)
Grommet
(2)
1
Advertisement
Table of Contents
Related Manuals for AVF SYZ84-S-XL
Summary of Contents for AVF SYZ84-S-XL
- Page 1 Assembly Instructions SYZ84-S-XL Stand Thank you for purchasing AVF’s SYZ84 Stand This product is designed for free standing mounting of single plasma/lcd display sized 40”-58” (S), 58”-80” (X) weighing Confirm all hardware is included before you begin assembly. Read these instructions start to finish before beginning installation.
- Page 2 Assembly Instructions SYZ84-S-XL Stand Place parts on non abrasive surface; install base to structure tube M10 X 35 From under the base hand tighten all 4 X M10 bolts onto the holes attaching the structural base to it. Tighten securely with Hex Key Make sure the open section of the tube is closer to the near edge of the base.
- Page 3 Assembly Instructions SYZ84-S-XL Stand M8 bolt (4) M6 bolt (4) M8 x 20mm (4) Before installing mounting brackets attach these Insert (2) M8 x 20mm bolts on the top and to TV and secure tightly before mounting. bottom of tube bracket to secure it.
