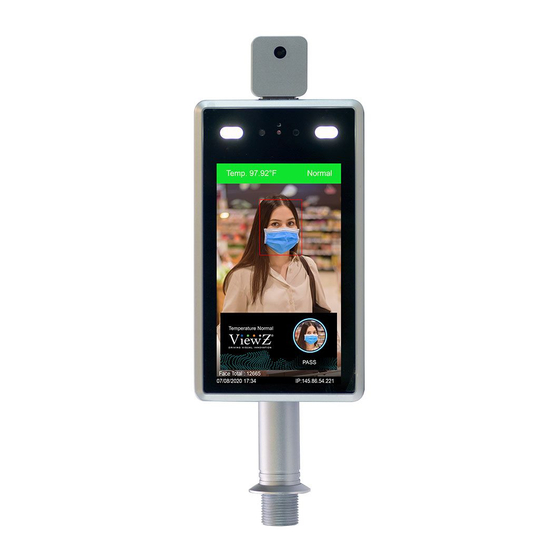

- Page 1 SERIES 7" TEMPERATURE MEASUREMENT & FACE RECOGNITION MONITOR VZ-7TIM-S USER MANUAL Temp. 98.06°F Normal Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Table Of Contents
Smart Face (Face Recognition) ................................. FA Black & Alarm (Alarm Setup) ............................... Access Control (Light On/Off, Monitor On/Off) ........................Device Information ....................................Restore ........................................Restart ......................................... Device Setting ....................................... Audio ..........................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 3 Video Coding (Main & Sub Video Streaming) ........................... RTSP ....................................................................................List Management ......................................List Management ....................................Batch Import ......................................Comparison ........................................Attendance ........................................Monitor Installation ........................................Specification ........................................Trouble Shooting ................................................................................Warranty ........................................User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 4: Safety Instruction
The monitor shall not be exposed to dripping or splashing and objects containing liquids, such as vases shall not be placed near the monitor. The monitor should have ample distance (e.g. 10cm) from the wall for sufficient ventilation. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 5: Mark Indication & Substance
If your monitor does not operate normally – in particular, if there is any unusual sound or smell coming from the monitor – unplug it immediately and contact an authorized dealer or the service center. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 6: Caution
While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 7: Fcc Rf Interference Statement
► DOC COMPLIANCE NOTICE This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 8: Package
Monitor (Qty 1) 110V Power Cable (Qty 1) Program CD (Qty 1) Mounting Option Your ViewZ monitor is compatible with ViewZ monitor mounts. For more information, please contact ViewZ USA at (888)-998-4399. Mount • Part # VZ-7TIM-FS • Part #... - Page 9 5. Alarm OUT - Relay Switch 3. WG OUT - 1:D0 2:D1 3:GND 6. DC 12V- Power IN 12V/3A Face Recognition & Temperature Measurement Display Real-time temperature display Detecting Area Face recognition comparison results User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 10: Connection
Type the proper info - IP address 192.168.0.XX, Subnet mask 255.255.255.0, Default gateway 192.168.0.1 If you want to use your own IP address, please change the VZ-7TIM-S info and use it. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 11: System Info
English, Spanish, French Russian, Portuguese, Italian German, Turkish, Japanese Default - English VO STANDARD Selects the video output NTSC / PAL | Default - NTSC DEVICE NAME Changes the device name User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 12: User Management
2) You cannot create a new user - it is a factory default account. 3) Password may consist of 8-15 digits, including but not limited to a-z, A-Z, 0-9, underscores and dot. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 13: System Time
TIME ZONE CONV. Selects the time zone Time zone : 1, 2 | Default - 1 RTC SWITCH Turn on and off the real time switch (RTC) Open, Close | Default - Open User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 14: Lan Setup
If you already have a device which is assigned the IP address '192.168.0.120', you might not be able to access this SW dashboard. To prevent that situation, please change the IP address of existing device or VZ-7TIM-S monitor. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 15: Mobile
SYSTEM PARAMETERS Mobile This interface is made to support the access control attendants. FUNCTION VALUE P2P SERVER QR code for mobile APP. PORT SERVER This function is not available. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 16: Smart Face (Face Recognition)
100 pixel size (far away status). If you set the MAX-face snapshot pixel higher than 400, the monitor will not capture the face when the displayed face size bigger than 400 pixel size (too close to the monitor). Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 17 OPEN, CLOSE | Default - OPEN LIVE DETECTION Sets the live detection mode Filter Tracking, Close | Default - Filter Tracking FUNCTION FIRST Sets the priority of capture mode Speed, Living | Default - Speed User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 18: Fa Black & Alarm (Alarm Setup)
Sets the level of recognition by detecting face 1 ~ 100 | Default - 75 1 ~ 100 | Default - 60 ID SIMILARITY Sets the level of recognition by detecting ID Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 19 1) When you choose 'High Temperature Algorithm,' you can have the extra time set of alarm. 2) Based on the CDC guideline, Any temperature 100.4 °F or greater is considered a fever. https://www.cdc.gov/coronavirus/2019-ncov/community/homeless-shelters/screening-clients-respiratory-infection-symptoms.html User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 20: Access Control (Light On/Off, Monitor On/Off)
Selects the face recognition skip time when showing same face 1) When you select 'White light time control,' you can type the time to turn on & off by military time - 00:00:00 23:59:59. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 21 Selects the displaying date format on screen YYYY-MM-DD, MM-DD-YYYY, DD-MM-YYYY | Default - YYYY-MM-DD COMPARISON Selects the captured data will be saved or not Open, Close | Default - Open RECORD STORAGE User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 22: Device Information
You can display the IP address, direction, longitude, dimension and manfacturer's info of VZ-7TIM-S. FUNCTION VALUE DEVICE IP IP address of VZ-7TIM-S DRIECTION Enter important system information LONGITUDE Enter Longitudinal value to indicate location DIMENSION Enter System dimensions MANUFACTURER CODE Enter the manufacturer code Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 23: Restore
Choose the option and click 'Submit' Click the 'Restore factory setting' button FUNCTION VALUE NETWORK Restores the IP address by factory default USER NAME Restores the user name by factory default User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 24: Restart
Sets the restore to the factory default of monitor & restart the monitor by the setup. FUNCTION VALUE Never, Daily, Monday ~ Sunday RESTART THE SYSTEM Sets the time of rebooting VZ-7TIM-S AUTOMATICALLY | Default - Never REBOOT Reboots the VZ-7TIM-S manually Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 25: Device Setting
SYSTEM PARAMETERS Device Setting Clear or format all saved data of VZ-7TIM-S. FUNCTION VALUE FORMAT Clears all data of VZ-7TIM-S REFRESH Loads the storage data of VZ-7TIM-S User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 26: Audio
INPUT VOLUME Selects the audio input volume 0 ~ 15 | Default - 15 OUTPUT VOLUME Selects the audio output volume AUDIO BITRATE Selects the audio bitrate 128000 | Default - 128000 Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 27: Network
Number 0 ~ | Default - 0 NUM OF RETRANSMISSION Types the re-upload times when uploading is not successfully uploaded to the server Warning This function is not supported on the VZ-7TIM-S. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 28 Selects the HTTP version V1.0.0, V2.0.0 | Default - V2.0.0 1) When you check 'Registered' check box, the non-registered person who captured by VZ-7TIM-S monitor, will be automatically registered into the system. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 29: Upgrade
VALUE VERSION Displays the current version of software UPGRADE FILE Selects a upgradable file from file browser N / A Warning The upgrade/update of VZ-7TIM-S is not available via this function User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 30: Video Parameter (Camera Video Setup)
FLIP Selects the flipped image or not NC (Off), NO (On) | Default - NC VIDEO STANDARD Selects the frequency of video 60 hz, 50 hz | Default - 60 hz Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 31: Video Coding (Main & Sub Video Streaming)
HDD or other devices. This function will help you when you have limited Internet bandwidth. 2) If you check on the 'Advanced' box, you can control 'VBR/CBR, quality, bitrate, frame rate and GOP(F)'. If you check off 'Advanced' box, you cannot control these. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 32 Setup the current value as WAN preferences 1) When you click 'LAN or WAN' button, system will load the default value. If you update the value and want to use it, please click 'Save' button to apply. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 33: Rtsp
0 ~ | Default - 1240 0 ~ | Default - 1242 SUB STREAM AUDIO PORT Types the sub stream multicast audio port number ONVIF PASSWORD Turn on or off the authentication when using ONVIF User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 34: Ftp
2) There are many different possible reasons for connection to fail. However, if you see the FTP server directly and find the 'Test.jpg' on the FTP server, it means the connection is confirmed. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 35: List Management
1-1) Click 'Add list' button to popup the 'Add list' window. 1-2) Click 'Browse' button to add a face/upper body photo. 1-3) Fill in the proper information. 1-4) Click 'Save' button to save the written information User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 36 Black, White, VIP | Default - Whitelist Warning When you're uploading a photo, use an image below 960x960 pixels & 2MB file size. Also, you should upload a clear face photo to prevent recognition errors. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 37: Batch Import
1-3) Select one of the access control card number generation method or type the manual ID. 1-4) Select one of the group type. 1-5) Click 'Save' button to save & register the current information. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 38: Comparison
Owner, Blacklist, Whitelist, VIP list | Default - Owner NAME & NUMBER Finds the recognition record under the name or ID number 1) ID card authentication is not supported on VZ-7TIM-S model. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 39: Attendance
Sets the finding record based on the specific condition All, Late, Leave Early, No attendance | Default - All QUERY TYPE Selects a display type based on record or statistic data Record, Statistic | Default - Record User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 40 ATTENDANCE Attendance (Continued) Actual attendance record listing samples Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 41: Monitor Installation
Warning VZ-TIM series cannot replace or substitute the result of medical diagnose. Desktop / Gate Installation (Optional) When you install the VZ-7TIM-S monitor at the proper location without the optional mount (VZ-7TIM-DS or VZ-7TIM- FS) or install VZ-7TIM-S monitor, by using desktop stand (VZ-7TIM-DS), at the gate, please refer to below;... - Page 42 MONITOR INSTALLATION Desktop / Gate Installation (Optional) - Install Position If you want to install the VZ-TIM series monitor at the gate, please refer the follow; • Install the VZ-TIM series monitor at the entrance way • VZ-TIM monitor will be directed to the entrance way and located at the proper position & angle...
- Page 43 Based on the circumstance, you will need to adjust the angle of the monitor or arrange the detection distance Retail Shop & Market Casino & Conference Center Church Grocery Store Airport & Transportation Hotel Lobby User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 44 VZ-7TIM-S monitor should be directed to the entrance way and located at the proper position & angle • Install or setup the sign of detecting position on the ground if necessary Detecting Position Sign Ranging from 1.64 ft to 6.56 ft Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 45: Specification
Safety & EMC Certification CE / FCC / ROHS Electrical Ratings DC 12V, 3.0 A (AC100 ~ 240V[50/60Hz]) Power Consumption ≤ 20 W Accessories Power Supply & Cable, User’s Manual, Software CD User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 46: Trouble Shooting
At start the current input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ. - Adjust the value of Smart Face and FA Black & Alarm on page 16 & 18 No detection of face - Check the 'Matching mode' on page 18 - FA Black &... -
Page 47: Rma
- The warranty period for this monitor is 1 year. The warranty will be voided for the scenarios listed below. - You can also download the manual and information at VIEWZ web site: VIEWZUSA.COM When power feed to the monitor exceeds capacity and causes damage... -
Page 48: Warranty
What ViewZ USA Will Do At the sole discretion of ViewZ USA, ViewZ USA will repair or replace any product or product part that is defective. If ViewZ USA chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
