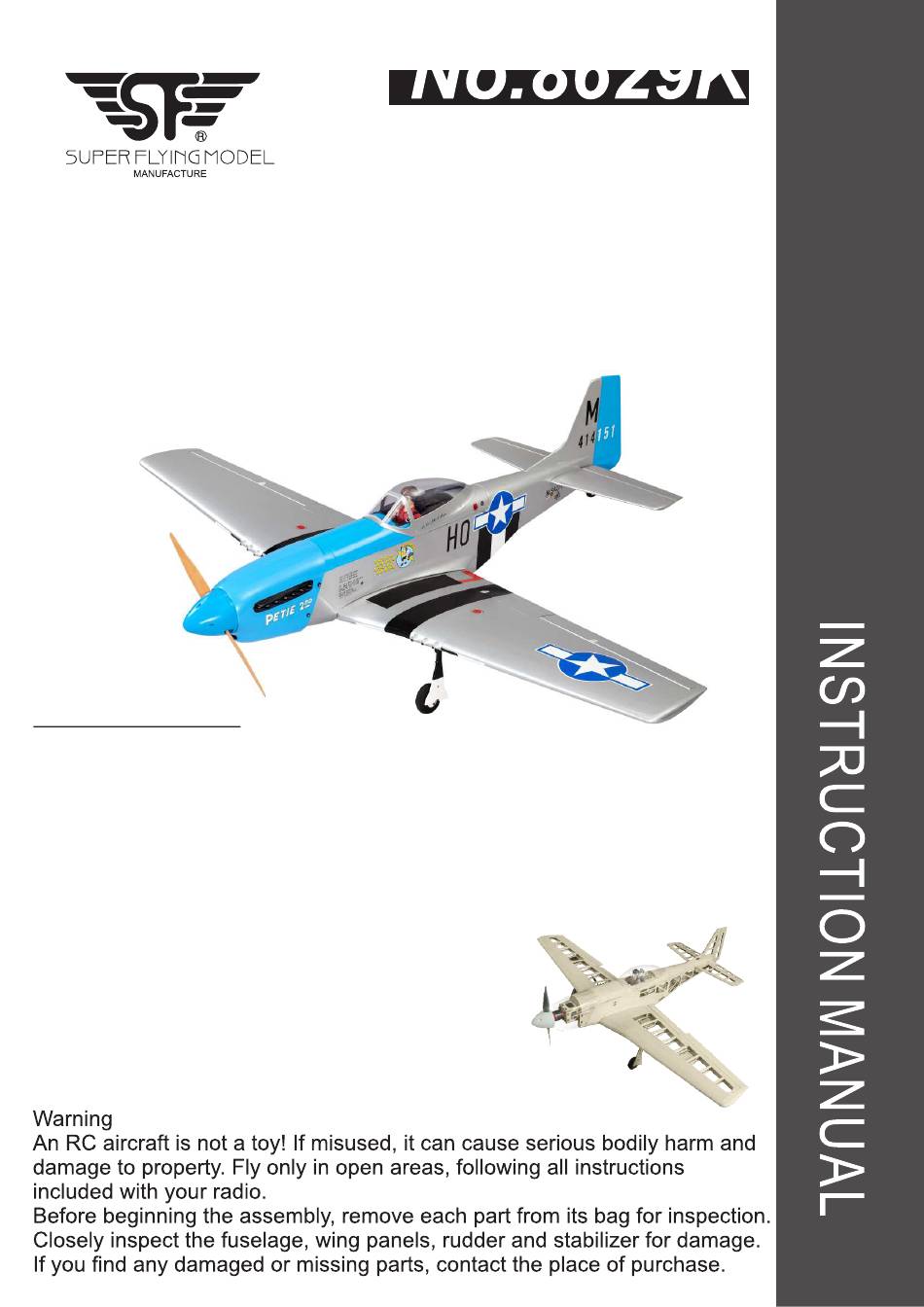

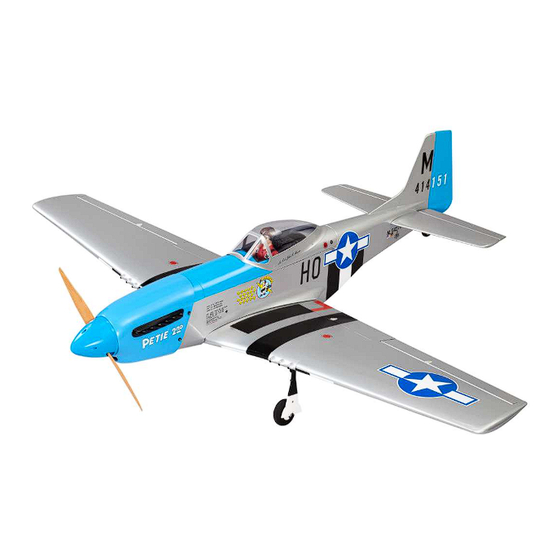

MUSTANG

SPECIFICATIONS

Wing Span: 1426mm

Wing Area: 34.7 dm²

Length: 1177mm

Total Weight: 2600g (with 4S battery 2600mAh)

Radio: 5 ~ 6(if use flap) channels

Motor: 4250-840KV brushless

Thrust: 3 KGS and up

Battery: Li-Po 4-cell 2600mAh and up

ESC: 70A

Engine: 10cc 2-stroke(Gas)

.46 2-stroke

.60 4-stroke

Propeller for EP: 12 x 8"

Propeller for GP: 12 x 6"(Gas)

Propeller for GP: 11 x 6"

No.8629K

P-51D GP/EP

Need help?

Do you have a question about the MUSTANG P-51D GP/EP and is the answer not in the manual?

Questions and answers

Summary of Contents for Super Flying Model MUSTANG P-51D GP/EP

Page 1 No.8629K MUSTANG P-51D GP/EP SPECIFICATIONS Wing Span: 1426mm Wing Area: 34.7 dm² Length: 1177mm Total Weight: 2600g (with 4S battery 2600mAh) Radio: 5 ~ 6(if use flap) channels Motor: 4250-840KV brushless Thrust: 3 KGS and up Battery: Li-Po 4-cell 2600mAh and up ESC: 70A Engine: 10cc 2-stroke(Gas) .46 2-stroke...
Page 2 Recommended radio and equipment (Not included in kit): 5-6 or up channel radio Receiver Servos (45g) x 2 pieces + Servos (25g) x 4pieces 70Amp or up Brushless ESC x 1 piece 11x6 – 12x8 propeller x 1 piece Aluminum nut x 1 piece Y-harness x 2 piece 600mm extension x 4 pieces Tools and suppliers needed (not included in kit):...
Page 3 A ach C3, C4, C6 to C1 with instant glue. A ach C7, C10 and C15 with instant glue. A ach C13 with instant glue. At ﬁrst join C8 then join C5. ach C12 and C14 with instant glue. Use instant glue to a ach all parts and ﬁnally join the second C8.
Page 4 Use white glue to cover all edges. Sand it un l smooth, then a ach C24 with instant glue. Cover with C15 and secure with pins. A ach C25 with instant glue. Note: Be careful of the direc on. Secure with tape and pins and use weights Sand C17 and C18 un l smooth,and a ach un l glue is dry.
Page 5 Check 1:1 map and a ach C19 ~ C23 with Secure cabin with 2.6x8mm screws. instant glue. A ach F47 to F46’s lower edge and cut out Sand it un l smooth. 5x5mm balsa wood strips to a ach to F46’s upper edge with instant glue.
Page 6 A ach F52x2 and F51 with instant glue. Sand it un l smooth. A ach F55 with instant glue and secure A ach F35 to F52 with instant glue and with pins. secure with pins. Sand it un l smooth. Cut and sand F54’s upper edge and lower edge to 45 degrees.
Page 7 Use the gauge provided to check that Refer to the drawing, Use a pen to mark enough has been trimmed to ﬁt securely WF1R and F2R. under the wings. Apply white glue on F2R. Be sure not to apply the glue over the line you marked. Prepare F2R, F1R, F1L, F2L.
Page 8 C u t 4 x8x207mm balsawood strip If you will use an electric motor, please an d a t ta c h t o F4 with instant remove these small pieces. g l ue . Cut 5x5x247mm balsawood strip and apply Apply white glue on F8.
Page 9 Place F15 and apply instant glue. A ach F20 to F21. It should look like the image. Take two washers and use a hammer to Apply white glue on F14 and put two F14 place the washers into the holes. pieces together.
Page 10 Check 1:1 map and join parts to F1R. Prepare F7, F11, and F12. F7. The recess marking should be on the right hand side. Join F1L and secure with weights, then use instant glue a ach all parts. Join F7,F11,F12 to F5. Secure with rubber bands.
Page 11 A ach F26 with instant glue. A ach F14 with instant glue. A ach F30 with instant glue. A ach F17 with instant glue. Check that every joint is a ached with instant glue. A ach F28 and two pieces F29 with instant glue.
Page 12 Cut oﬀ 45 degrees to F33’s front edge and Join F23. sand it un l smooth. Insert every slot and a ach with instant A ach F27R on the right side, then a ach glue. F27L on the le side. A ach F24 with instant glue.
Page 13 According to the distance between slots, Prepare F32x2, F31, F34, F35, F37, and cut 5x5 balsa wood strips and a ach with make them wet. instant glue. According to the distance between slots, cut 5x5 balsa wood strips and a ach with instant glue.
Page 14 A ach F31 and F32 secure with pins, and Sand it un l smooth. cut oﬀ extra pieces. Use white glue as in above image. Cut oﬀ extra pieces.. Secure with pins. Use white glue as in above image. A ach F31 and F32 and secure with tape. Cut oﬀ...
Page 15 When ﬁnished, it should look like this Secure with pins and tape. picture. Sand it un l smooth like above picture. A ach F36 with white glue and secure with pins and tape. Sand it un l smooth like above picture. Cut oﬀ...
Page 16 Sand it un l smooth like above picture. Take out V2. Sand it un l smooth. Sand it un l smooth like above picture. Join F45 to test slot. Don't use glue. A ach F38U and two pieces F38 to fuselage with white glue and secure with pins.
Page 17 Use instant glue to a ach F44 from the A ach F39 and F43 to fuselage with inside. instant glue. A ach F39 with instant glue. Make F44 wet. Use a pipe or rounded object to make F44 rounded. Secure F44 to rounded object un l dry.
Page 18 Prepare H1 and V2. According to H1 and Trim the front edge to a rounded shape and V2’s slots size cut out 4x8mm balsa wood sand. strips and a ach them with instant glue. According to V3’s slots size cut 4x8mm balsa wood strips and a ach them with instant glue.
Page 19 Cut the hinge holes and set the tail gear Set the hinges and metal part into into the slot. horizontal and elevator. According to the “U” shaped part’s size, ﬁnd right place to make a mark on H2. Prepare W12, W12A, W13,W13A. According to the mark, drill a 3mm hole.
Page 20 Prepare W23,W24,W25. Prepare balsa wood W28,W29,W30,W28-1 follow the picture above to glue them with instant glue. Take W24 to place on W25 and the small holes should be aligned. Use white glue to glue them. Note: Right wing and Le wing are mirrored.
Page 21 Use white glue to glue W40~W46. Line up Place W4 and line up W3 then clip them. the marks when you glue them. Note that Use intant glue to glue them. right wing and le wing are mirrored. Line up W4 and W5, clip them and glue them with instant glue.
Page 22 Apply white glue to all wing ribs and upper Join W9, W9A, W10, W10A, W20, W26 and surfaces. secure with pins ﬁrst, and glue each joint Note: This should be done on the upper with instant glue. side of the wing. A ach W27 with instant glue.
Page 23 Use white glue on all ribs and the four Cut out extra pieces and sand it un l outer edges and all upper surfaces. Note: smooth on the wing p. Do this on the underside of the wings. Cut out extra pieces and sand it un l smooth on the wing root.
Page 24 A ach W37 with white glue and secure A ach the wing p with white glue and with pins.When glue is dry, sand it un l secure with pins. smooth.A ach W47 to the wing root. Be sure to align the wing joiner holes. Sand it un l smooth with aileron.
Page 25 Right wing a ach to le wing with epoxy Insert the washer to the wing bolts M4x35 and secure with tape. and insert the bolt into its hole on the main wing. Slide a piece of 5mm silicone tube to prevent loss.
Page 26 Prepare W50, W51 and 3x12mm ﬂat head Check servo type to a ach W35 to W36 tapping screws. with instant glue . A ach W50 to W51with epoxy. Check W35’s holes to drill 2mm holes.Then According to W51’s holes drill 2.5mm use instant glue to make holes stronger.
Page 27 Drive 3x12mm screws. According 1:1 map build leading gear. Put in landing gear and secure with 3mm washers and 2.6x8mm ﬂat head tapping screws. When ﬁnished it should look like this Use instant glue to make holes stronger. picture. Put in landing gear and secure with 3x12mm screws Prepare wheels, axle, 4mm gears, W46, M3x4 HEX screws, and M3x6 ﬂat head...
Page 28 According to the do ed line, cut oﬀ extra Cut oﬀ extra parts from landing gear. space. When ﬁnished, it must look like this picture. Cut oﬀ extra pieces from the ribs. Set electric landing gear like in this picture. A ach plas c cover into the hole with instant glue.
Page 29 Cut oﬀ extra pieces. Set electric landing gear. Sand it un l smooth. Tools and suppliers needed (not included in kit): 1.5/2.0/3.0mm hex wrench Sealing Iron 30min Epoxy 1mm/2mm driller Soldering Iron Instant glue Driller 2mm/3mm/4mm/5mm Phillips PH0/PH1 Heat gun Shrinking tube Ruler UHU glue...
Page 30 Please use sharp hobby knife or soldering iron to remove the covering. Remove the covering out of the retracts mount and trim the edges with ironer. Remove the covering out of the servo tray. Remove the covering out of the slot on the aileron's servo cover.
Page 31 EP ONLY Spread some instant glue on the top and bottom one-half of each hinge. Insert the hinges into the main wing until the hinge line For the EP version: is even with the trailing edge of the main Place the fuselage upside down. Try to find wing.
Page 32 If use Y-harness on the flap, please install the left wing and right wing servos at the same side. If want to use mixer on the radio, the location of both servos must be on different side. Drop some instant glue into the screw holes for the servo tray.
Page 33 Place the accessories for the main gear on Place the triangle rule along the servo arm to the working table: the trailing edge for setting the location for 70mm round sponge wheels x 2 pieces installing the control horn on the aileron. Use 4mm collar x 6 pieces 1.5mm hand driller to drill holes for the axle x 2 pieces...
Page 34 Spread generous amount of 30-min epoxy to Place the main wing upside down. Try to find the top and bottom of wing joiners, and wing the Y-harness from the main gear mount. root. Insert the wing joiners to the left and Plug the Y-harness and apply some right main wing for securing both main wing transparent tape around the plug.
Page 35 Assemble the gear covers to the gear Insert the wing bolts and washers through mounts. Secure the axles to the main gear the venting. Try to the fit the vent onto the with M3x4 screws. Install the wheels and main wing with the wing bolts into the bolt collars.
Page 36 Remove the horizontal from the fuselage. Use instant glue to secure the hinges insides Using a sharp hobby knife carefully cut away the hinges slot of elevator. Also use Super the covering inside the marking area. Do not glue to secure the half of hinges to the cut into the balsa wood as this will affect the horizontal.
Page 37 Please follow the following drawings to assemble the rods. Insert the 90-degree bend into the hole of the pushrod dowel and saturate the dowel with instant glue where the rod contacts the dowel. Allow to cure. Slide a piece of heat shrink tubing over the end of the pushrod dowel and use a heat gun to shrink it in place over rod/dowel connection.
Page 38 1) Take transparent tube out the hardware bag. Cut the tube into two pieces from the center. Slide the tube from the rod opening on the fuselage, through the fuselage and to the rod opening of the tail. 2) Cut 2 pieces of 60mm transparent tube. Slide the one pieces of rudder rods and two piece of elevator rod into the tubes.
Page 39 EP ONLY GP ONLY Connect the feed-line tubing and vent-line Take the laser cutting planking out of the tubing to the fuel tank. Please purchase hardware bag and place on the working correct tubing for the engine. table. Apply a piece of adhesive Velco tape on the bottom of fuel tank and another Velco tape on the battery tray.
Page 40 GP ONLY Connect the throttle rod with ball-end. Secure with M2x15mm screw and plastic nut. Connect the ball-end rod with throttle. Connect the rod for Choke with adjustable rod stand. The servo for the throttle can be standard or mini servo. Diagram for assembling the tubing and linkage of the engine.
Page 41 EP ONLY Use Epoxy to secure the motor mount on the fuselage and reinforcing blocks on two Try to fit the motor onto the motor mount. sides of moor mount. When satisfy the location, use marker to mark the position for the screws. Remove the motor and use hand driller to open holes on the marked positions.
Page 42 Tack off Landding 45 or more Apply your favorite stickers! 15mm 15mm 105mm 20mm C.G. The recommended Center of Gravity 20mm location is 105mm back from the leading edge against the fuselage. 22mm 22mm...
