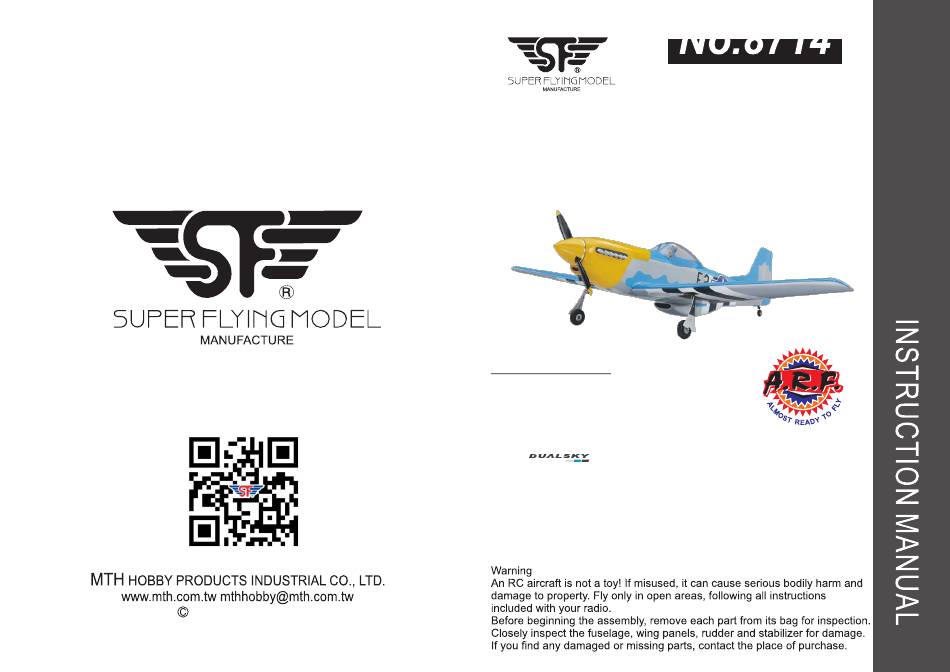

No.8714

P-51D Mustang

SPECIFICATIONS

Wing Span: 1710mm

Wing Area: 59.7 dm²

Length: 1430mm

Total Weight: 3600g (with motor and battery 5000mAh)

Radio: 4 ~ 6(if use flap) channels

Motor: 560KV brushless

XM6350EA-6

Thrust: 4 KGS and up

Battery: Li-Po 6 cell 5000mAh and up

ESC: 100A

Engine: 20cc 2-stroke(Gas)

.90-.120 4-stroke

Propeller for EP: 16 x 10"

Propeller for GP: 16 x 10"(Gas)

Propeller for GP: 15 x 10"

MTH HOBBY 2016

Need help?

Do you have a question about the P-51D Mustang and is the answer not in the manual?

Questions and answers

Summary of Contents for Super Flying Model P-51D Mustang

Page 1 No.8714 P-51D Mustang SPECIFICATIONS Wing Span: 1710mm Wing Area: 59.7 dm² Length: 1430mm Total Weight: 3600g (with motor and battery 5000mAh) Radio: 4 ~ 6(if use flap) channels Motor: 560KV brushless XM6350EA-6 Thrust: 4 KGS and up Battery: Li-Po 6 cell 5000mAh and up...
Page 2 Please use sharp hobby knife or soldering iron to remove the covering. Remove the covering out of the retracts mount and trim the edges with ironer. Remove the covering out of the servo tray. Recommended radio and equipment (Not included in kit): For GP version: For GP version: 6 or up channel radio x 1 piece...
Page 3 EP ONLY If use Y-harness on the flap, please install Spread some Super Glue on the top and the left wing and right wing servos at the bottom one-half of each hinge. Insert the same side. If want to use mixer on the radio, hinges into the main wing until the hinge line For the EP version: the location of both servos must be on...
Page 4 Place the accessories for the main gear on Spread generous amount of 30-min epoxy to Place the main wing upside down. Try to find Place the triangle rule along the servo arm to the working table: the top and bottom of wing joiners, and wing the Y-harness from the main gear mount.
Page 5 Use sharp hobby knife remove the covering Assemble the gear covers to the gear Secure the wing bolts for temporary until the inside the planking area carefully. mounts. Secure the axles to the main gear epoxy is dried enough. with M3x4 screws. Install the wheels and collars.
Page 6 Threaded end RUDDER 395mm 5mm 90 5mm 90 Threaded end ELEVATOR 330mm Remove the horizontal from the fuselage. Use Super glue to secure the hinges insides Using a sharp hobby knife carefully cut away the hinges slot of elevator. Also use Super 5mm 90 the covering inside the marking area.
Page 7 1) Take 1200mm transparent tube out the GP ONLY .91-.120 Gas 20cc hardware bag. Cut the tube into two pieces from the center. Slide the tube from the rod opening on the fuselage, through the fuselage and to the rod opening of the tail. 2) Cut 3 pieces of 60mm transparent tube.
Page 8 GP ONLY EP ONLY EP ONLY Use Epoxy to secure the motor mount on the fuselage and reinforcing blocks on two Connect the feed-line tubing and vent-line Take the laser cutting planking out of the Try to fit the motor onto the motor mount. sides of moor mount.
Page 9 Tack off Landding 45 or more Installing the anti-vibration rubber inside the cowl. Try to fit the cowl to the motor or engine. When satisfy the location, use M2.6x12 tapping screws to secure the cowl in position. 15mm 15mm Apply your favorite stickers! 20mm 20mm 120mm...
Page 10: Specification
The Best Recommendation for Assembly 17 IN 1 Tool Pouch Set Plastic Extendable Gearless Precision Screwdriver High-carbon steel Replaceable Tips SPECIFICATION: Nut Drivers: 4mm,5mm,5.5mm,7mm,8mm Hex1.5 x Hex3.0 Hex2.0 x Hex3.5 Hex2.5 x Hex4.0 (-)Slotted 3.0 x (+)Ph0 (-)Slotted 4.0 x (+)Ph1 (-)Slotted 2.0 x (+)Ph00 Item: #5002-1...
