Inventory List; Tools Required - ETI NETCOM ADH Assembly Replacement Procedure

ADH NETCOM COMPRESSOR
ASSEMBLY REPLACEMENT
PROCEDURE
This procedure addresses the removal and
replacement of the Compressor Assembly in
an ADH NETCOM Automatic Air Dehydrator.
The first section addresses the replacement
of the Compressor Assembly in the AC and
DC models. The second section, starting on
page 6, addresses the replacement of
the Compressor Assembly in the ADH
NETCOM AC NEMA configuration.
recommended to
procedure prior to beginning work.

INVENTORY LIST

Identify the following items in this kit prior to
beginning work.

TOOLS REQUIRED

The following tools are needed to perform
this procedure:
• 5/16" Nut driver
• Phillips screwdriver
• Tie wrap cutting scissors
• Small flat blade screwdriver
• Tubing wrench or vacuum tube pliers
NOTE:
The this kit will have a solid rubber mount
attached to the compressor which replaces
the EZ mount bracket. It is recommended
that the wire tie remain loose until after the
mount is installed in the unit to allow easier
installation.
Item
Number
1 1
2 2
3 3
4
South Bend, Indiana USA | networketi.com
It is
read the entire
Part Item
Number Quantity
23216 1
23159 1
24098 1
12200
4

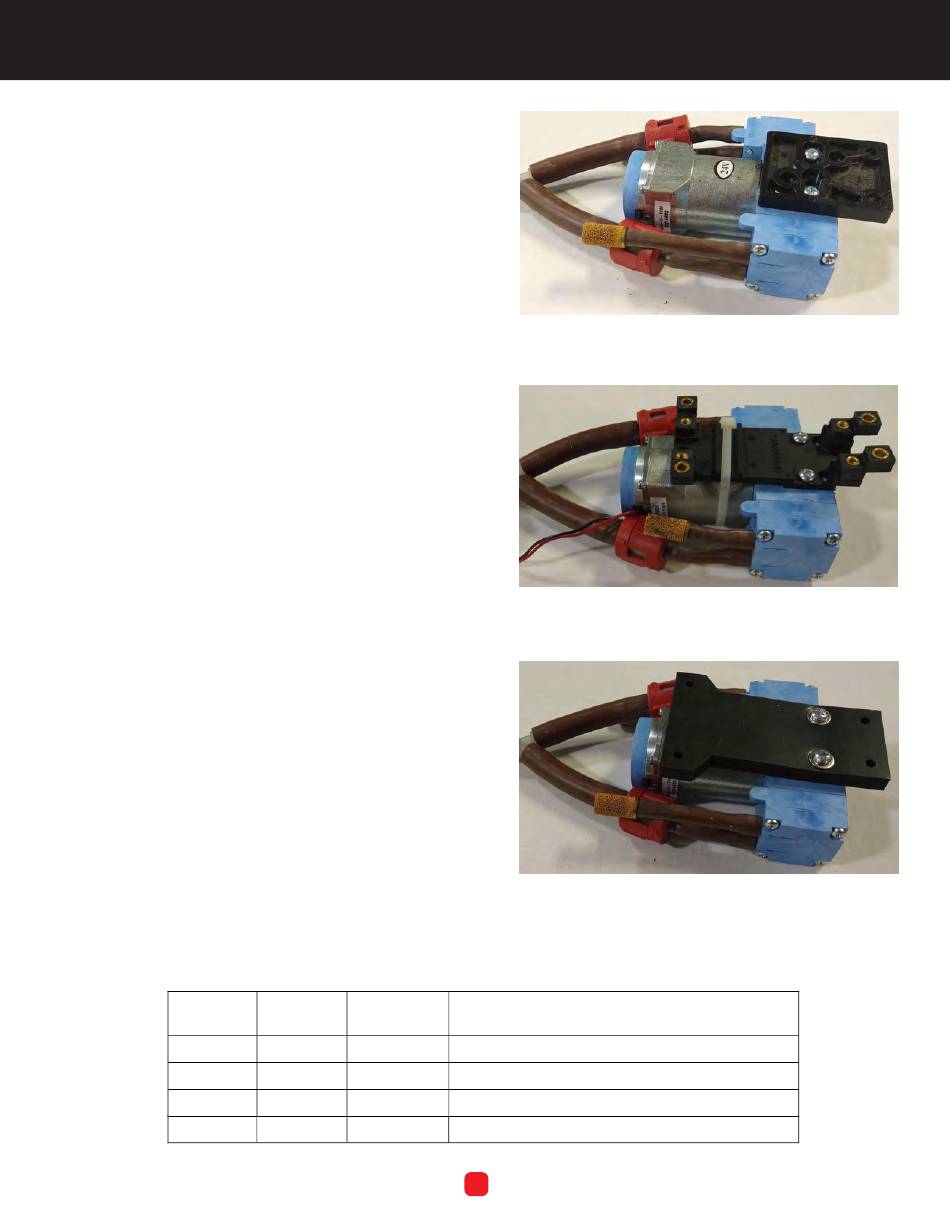

Original 2 Hole Mount
4 Hole EZ Mount
Solid Rubber 4 Hole Mount, replaces EZ
Item
Description
Compressor Module
Mounting Plate
Instruction Manual (this document)
Flat washers
3
ADH INSTRUCTION MANUAL | PART NO.
Mount Bracket
24098 REV B
