CONNECTIONS
1.
Connect feed hose to 1/8" NPT outlet using 1/4" or
3/8" barbed fitting supplied.
2.
Connect required data and alarm relay ports. RS-422
and RS-232 ports may require configuration changes
via the web interface. See Instruction Manual for
more information.
3.
Connect AC power. System can be connected to 100
VAC – 240 VAC power without requiring any
configuration change.
UNIT DOES NOT HAVE POWER SWITCH. SYSTEM WILL START WHEN POWER IS APPLIED.

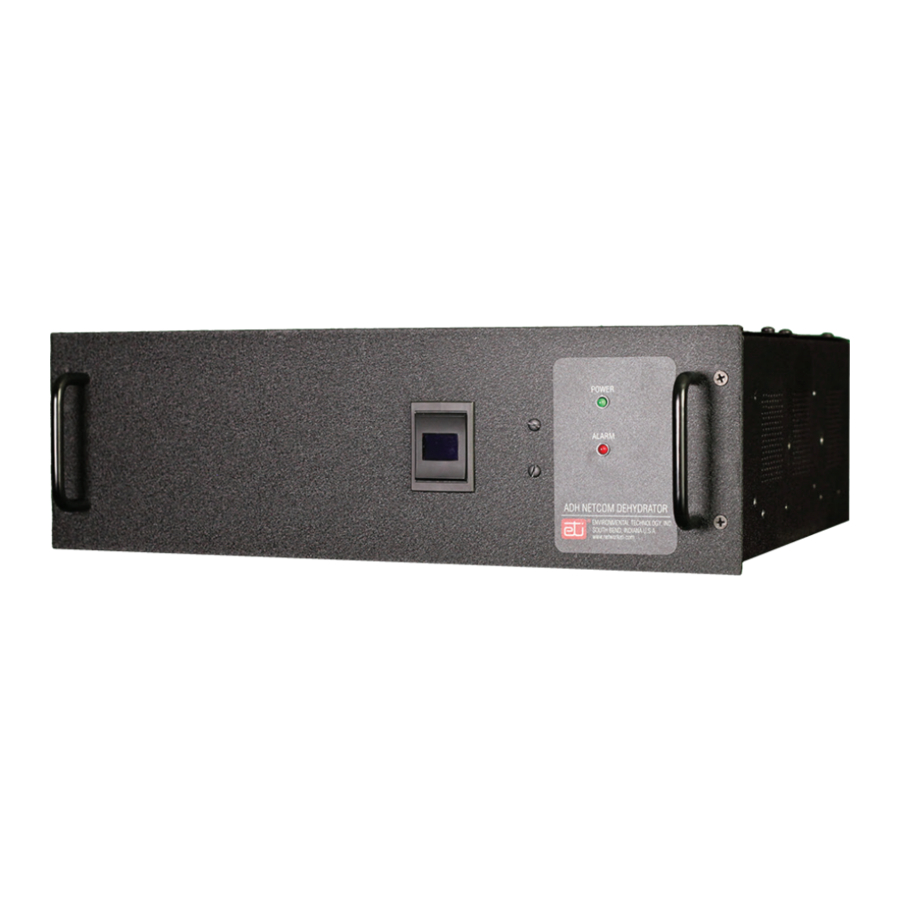

The ADH NETCOM Automatic Dehydrator with AC Power is permanently connected
equipment and does not have an internal disconnect device. A readily accessible disconnect
device, short circuit, and current protection shall be provided and are not supplied by ETI When
power is applied, the system will start.
AUTOMATIC AIR DEHYDRATOR WITH AC POWER SUPPLY
MODEL ADH DC
QTY.
PART NO. DESCRIPTION
1
25527
ADH NETCOM, DC
1
25548
ADH NETCOM Installation Sheet (this document)
1
18198
1/8" NPT to 1/4" Barbed Brass Fitting
1
23428
1/8" NPT to 3/8" Barbed Brass Fitting
1
14513
1/8" NPT to 1/4" Barbed Elbow Brass Fitting
4
23245
Mounting Bracket
8
24567
Self-Locking Rack-mounting screw (#8-32)
8
10641
#8 Split Washer
QUICK REFERENCE INSTALLATION GUIDE | PART NO.
25548
REV
0.0
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ETI NETCOM ADH DC
Summary of Contents for ETI NETCOM ADH DC
- Page 1 The ADH NETCOM Automatic Dehydrator with AC Power is permanently connected equipment and does not have an internal disconnect device. A readily accessible disconnect device, short circuit, and current protection shall be provided and are not supplied by ETI When power is applied, the system will start.
- Page 2 (for portion of the vented cover with the ETI logo. approximately four times the weight of the single-post racks). Reinstall the front panel so that it will be in unit, or 64 pounds (29 kg).
- Page 3 Your Information Technology Department is the best source of information if you encounter problems or difficulties in connecting to or communicating with the dehydrator. The ADH NETCOM Ethernet communications run at 10Base-T and half duplex. It is recommended that the network interface to the ADH NETCOM be manually set to these parameters and NOT to an auto-configure mode.
- Page 4 CONTACTING CUSTOMER SERVICE INSTALLATION NOTES For technical help, questions or comments concerning this product or any ETI product contact Customer Service 8:00 a.m. - 5:00 p.m. Eastern Time. Email: info@networketi.com Web: networketi.com Mail: 1850 North Sheridan Street South Bend, IN 46628 LIMITED WARRANTY ETI’s two year limited warranty covering defects in workmanship...
