6. When using stand-by batteries, they must be lead acid or gel type. Connect battery to terminals marked [- BAT +]
(battery leads included). Use two (2) 12VDC batteries connected in series for 24VDC operation.
Note: When batteries are not used a loss of AC will result in the loss of output voltage.
Red (DC) Green (AC) Power Supply Status
ON ON
ON OFF
OFF ON
OFF OFF
Terminal Legend
L, G, N
-- DC +
-- BAT +
12"H x 8"W x 6"D
0.75"
0.75"
11.25"
12.00"
Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice.
Altronix Corp.
140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056
website: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A.
IISMP7WP - Rev. 061609

LED Diagnostics:

Normal operating condition.
Loss of AC, Stand-by battery supplying power.
No DC output.
Loss of AC. Discharged or no stand-by battery. No DC output.

Terminal Identification:

Function/Description
Connect 115VAC to these terminals: L to Hot, N to Neutral, G to ground (if used).
12VDC or 24VDC @ 6 amp continuous supply current.
Stand-by battery connections. Maximum charge rate 700mA.

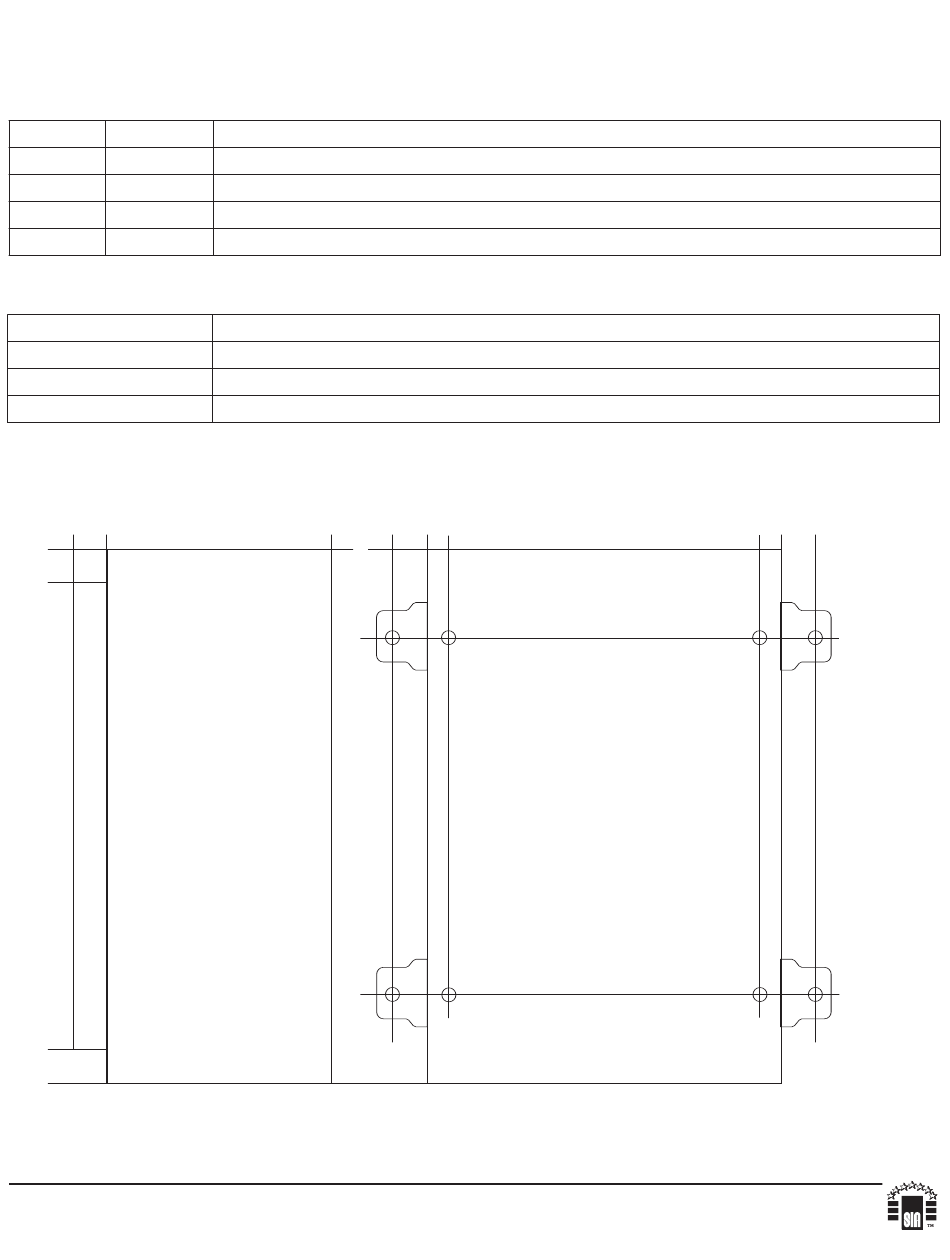

Enclosure Dimensions:

6.00" 0.77"
2.00"
10.00"
0.50"
F16I
7.40" 8.00" 8.77"
