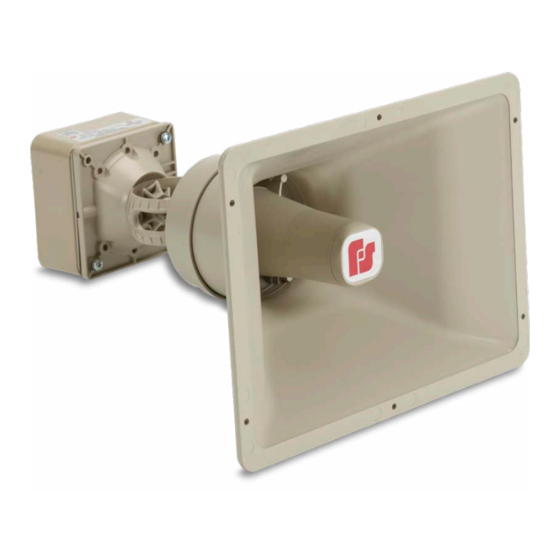

Federal Signal Corporation SST3-MV Installation And Maintenance Instructions Manual
Electronic siren
Hide thumbs
Also See for SST3-MV:
- Installation and maintenance instructions manual (48 pages) ,
- Installation instructions manual (9 pages)
Subscribe to Our Youtube Channel
Related Manuals for Federal Signal Corporation SST3-MV
Summary of Contents for Federal Signal Corporation SST3-MV

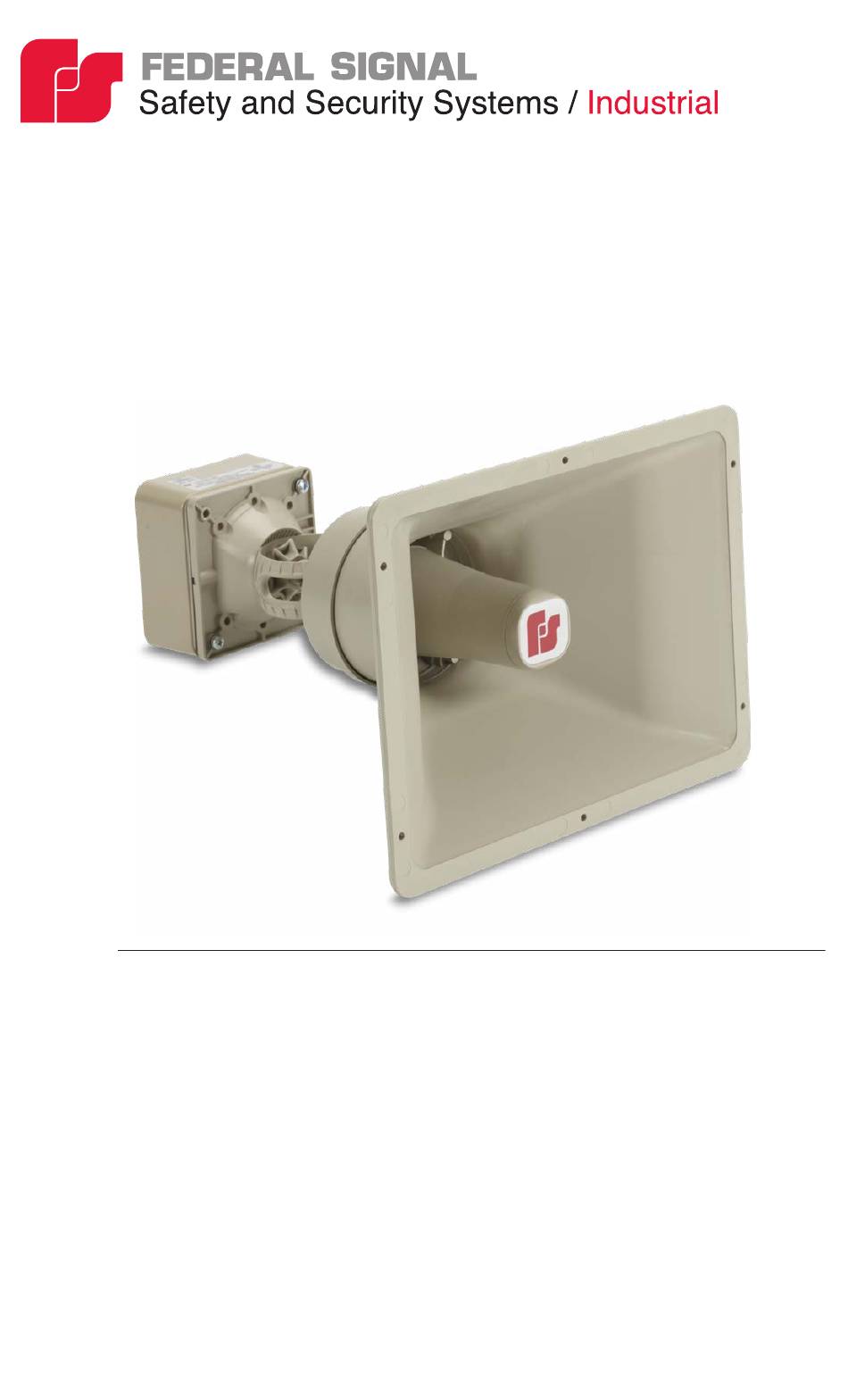

- Page 1 Model SST3-MV Electronic Siren Installation and Maintenance Instructions 2561620A français....page 17 REV. A1 419 español....página 32 Printed in U.S.A.
- Page 2 (36.83 mm x 30.48 mm x 22.86 mm) Mounting the Siren The Model SST3-MV can be attached to any relatively flat surface or to a variety of electrical wall boxes. A four-position plug is supplied for electrical connection. In addition, two #8- 32 x 3-1/4 inch slotted machine-screws are included to attach the unit to a four-inch square electrical box.
- Page 3 Installation and Maintenance Instructions Figure 3 Mounting with concealed conduit Model SST3-MV Siren...
- Page 4 NOTE: If you are using stranded wire, be sure that there are no loose strands outside the connector plug that could touch the adjacent lead and cause a short circuit. 4. Plug the connector into the receptacle provided on the printed circuit board. Model SST3-MV Siren...
- Page 5 Defective products that are returned within the warranty period will be repaired or replaced at Federal Signal’s sole discretion. Defective products do not include those products with lamp failure. Circumstances other than those listed above will be addressed on a case-by-case basis. Model SST3-MV Siren...
- Page 6 Instructions d’installation et d’entretien Sirène électronique SST3-MV...
