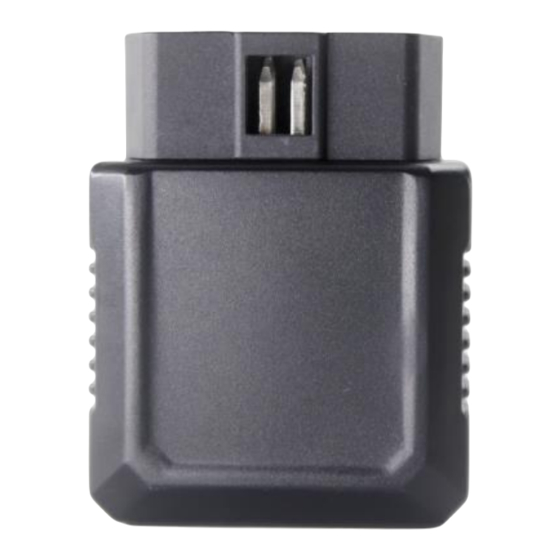

SMART OBD TRACKER
The OBDII GPS tracker is designed based on OBDII/GPS/GSM/GPRS,
simply plug to vehicle OBDII Port to realize remote manage vehicle
tracking and diagnostic, and transmit data to server via GPRS.
◆ LED STATUS
Light color
Red
Blue
Green
Signal
Stable light on
GPS signal
GPS located OK
OBD signal
Read OBD normal
GSM signal
Read SIM card
Flashing
Connecting
Connecting
Connecting
Advertisement
Related Manuals for UniGuard UT06a
Summary of Contents for UniGuard UT06a
- Page 1 SMART OBD TRACKER The OBDII GPS tracker is designed based on OBDII/GPS/GSM/GPRS, simply plug to vehicle OBDII Port to realize remote manage vehicle tracking and diagnostic, and transmit data to server via GPRS. ◆ LED STATUS Light color Signal Stable light on Flashing GPS signal GPS located OK...
- Page 2 ◆ INSTALLATION Step1 : Insert SIM Card Open case to insert card here Step 2: Plug into OBDII port in vehicle, then turn ignition on Step 3: Use Phone send below SMS to tracker’s SIM card number Set APN SMS : Apn123456(space)LocalApn(space)APNname(space)APNpassword Eg: apn123456 im.br tim tim ◆...
- Page 3 ◆ PARAMETERS Size 58mm x 48mmx26mm Interface OBD Port: Support 16 pin standard OBDII port. Support OBDII protocol, Compliant with 90% vehicle after Supported Vehicle Protocols 2008,ISO-9141-2,ISO-14230(KW)KWP2000,ISO-15765, CANBUS Working Voltage 9-30V DC Position GPS,AGPS,LBS GPS chip: UBLOX-7 Reacquisition Sensitivity: ‐160dBm Position accuracy: 5-10 CEP Cold Start: 45s Hot Start : 1s...
