Model: UCL12FP/5CCTCA
ONE
YNC

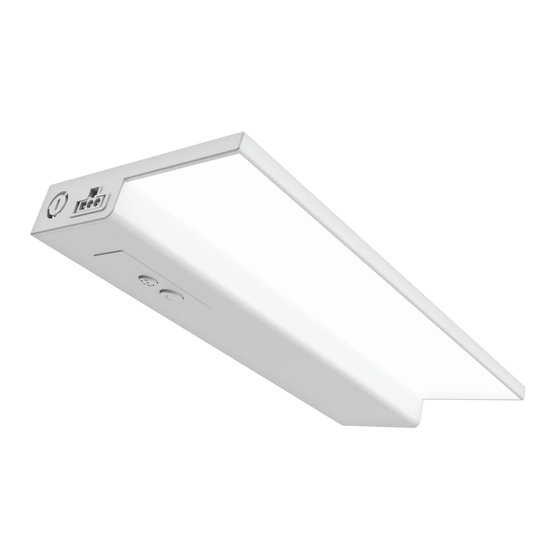

FLAT PANEL UNDER CABINET LIGHT
FITS 12 IN. CABINETS (9 1/2 IN. TOTAL LENGTH)
IMPORTANT SAFETY INSTRUCTIONS
AND INSTALLATION GUIDE
READ BEFORE INSTALLATION
SAVE THESE INSTRUCTIONS
Questions, problems, missing parts? Before returning to the store,
call Feit Electric Customer Service
8 a.m. - 5 p.m., PST, Monday - Friday
1-866-326-BULB (2852)
FEIT.COM
We appreciate the trust and confidence you have placed in Feit Electric through the purchase of this Under Cabinet Light. We strive to continually create quality products
designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Feit Electric.
Advertisement
Related Manuals for Feit Electric OneSync UCL12FP/5CCTCA
Summary of Contents for Feit Electric OneSync UCL12FP/5CCTCA
- Page 1 FEIT.COM We appreciate the trust and confidence you have placed in Feit Electric through the purchase of this Under Cabinet Light. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Feit Electric Company, 4901 Gregg Road, Pico Rivera, CA 90660. www.feit.com, 1-800-543-3348. -
Page 3: Pre-Assembly
Pre-Assembly TOOLS REQUIRED PHILLIPS PENCIL PLIAR 18 AWG FLAT HEAD SCREW DRIVER WRENCH WIRE STRIPPER SCREW DRIVER HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity 12in. LED Flat Panel Fixture 18in. Connector Cable Mounting Screws Fixture Mounting Template Hardwire Bracket Hardwire Bracket Screw Wire Nut... -
Page 4: Single Led Fixture Hardwire Installation
Single LED Fixture Hardwire Installation Turn Off the Power Removing the Knock-out Turn the power OFF from the breaker panel before Carefully remove the knock-out with a flathead screwdriver. starting installation. Installing the Clamp Connector to the Position the Fixture Knockout Hole Find the desired place for the LED light fixture and mark clearly using the provided mounting bracket template (DD). - Page 5 Single LED Fixture Hardwire Installation (continued) Secure Supply Wires with the Clamp Connector Wire Power Supply to the Fixture Secure the supply wire by firmly screwing the clamp connectors Feed the supply wire through the Clamp Connector (HH) and down on the wire. knockout hole and make all connections using the wire nuts provided.
-
Page 6: Alternative Plug-In Installation
Alternative Plug-In Installation (Electrical Plug not Included) Position the Fixtures Connecting the Power Supply Find the desired place for the LED light fixture and mark Plug In Electrical Plug to the LED Fixture (AA). clearly using the provided mounting bracket template (DD). Electrical Plug NOTE: The electrical plug can be connected to either side... -
Page 7: Operating Instructions
Operating Instructions ON/OFF and DIM Button CCT Button Use the ON/OFF and Dim Button for ON/OFF Operation and to Change the Dimming Levels To select the desired dimming level, cycle through the dimming levels (High, Medium, Low, Dim, Off) by pressing the Dim Button.
