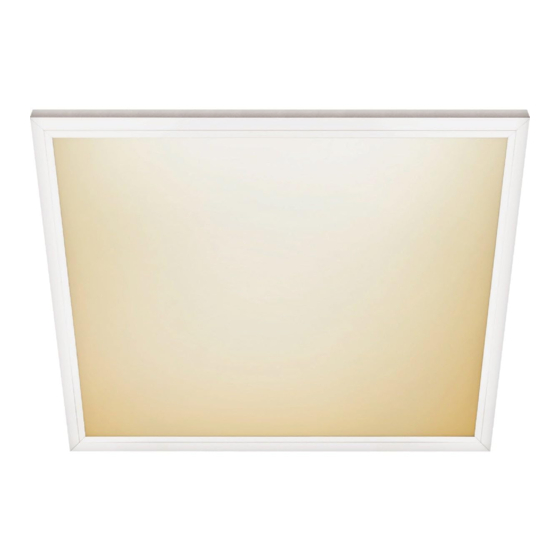

- Page 1 FP2X2/6WY/WH USE AND CARE GUIDE 2X2 LED FLAT PANEL FIXTURE WITH SELECTABLE COLOR TEMPERATURES Questions, problems, missing parts? Before returning to store, visit feit.com/help for further assistance. FEIT ELECTRIC COMPANY | PICO RIVERA, CA | www.feit.com...
-
Page 2: Table Of Contents
This product is warrantied to be free from defects in workmanship and materials for up to 5 years from date of purchase. If the product fails within the warranty period, please contact Feit Electric at info@feit.com or visit feit.com/contact-us for instructions on replacement or refund. REPLACEMENT OR REFUND IS YOUR SOLE REMEDY. -
Page 3: Pre-Installation
Pre-Installation TOOLS REQUIRED Phillips Power Drill 1/2 in. Drill Bit screwdriver HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Mounting Plate (13.3 in. x 21.6 in. x 0.47 in) 3/16 in. Toggle Bolts Wire Nuts Screws #8-32 x 1 in. Wiring Cover Wiring Cover Screws LED Flat Panel... -
Page 4: T-Bar Ceiling Installation
T-bar Ceiling Installation Securing the LED Flat Panel Attaching the Wiring Cover □ Place the LED flat panel (GG) in the desired □ Connect the ground wire (green/yellow) that is location and secure it to the building structure attached to the back of the LED flat panel (GG) to using a wire (not included). -
Page 5: Ceiling Wall Installation
Ceiling Wall Installation Securing the Toggle Bolts Turning Off the Power □ Remove the mounting plate (AA) from the junction box. □ Turn the power OFF at the switch and □ Drill the marked locations using a 1/2 in. drill bit. fusebox or the circuit breaker. -
Page 6: Changing The Color Settings
Ceiling Wall Installation (continued) Installing the Fixture Attaching the Fixture □ Feed the junction box and fixture wires through □ Connect the three wires coming from the fixture the mounting bracket plate’s center hole. (GG) to the junction box wires (black - line voltage, white - neutral and green - ground). - Page 7 Changing Color Settings Warm White Neutral White Cool White Daylight Daylight Deluxe SWITCH (3000K) (3500K) (4000K) (5000K) (6500K) 1. When the slide switch is set to 3000K, the color temperature is set to Warm White. 2. When the slide switch is set to 3500K, the color temperature is set to Neutral White. 3.
