Questions, problems, missing parts? Before returning to the store,
call Feit Electric Customer Service
8 a.m. - 5 p.m., PST, Monday - Friday
1-866-326-BULB (2852)
FEIT.COM
We appreciate the trust and confidence you have placed in Feit Electric through the purchase of this Under Cabinet Light. We strive to continually create quality products
designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

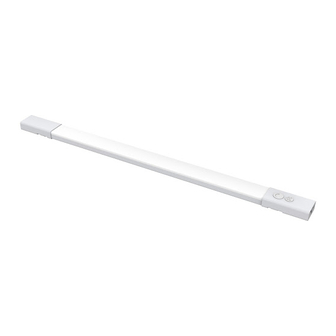

Summary of Contents for Feit Electric OneSync UCL24/5CCT
Page 1
FEIT.COM We appreciate the trust and confidence you have placed in Feit Electric through the purchase of this Under Cabinet Light. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Feit Electric Company, 4901 Gregg Road, Pico Rivera, CA 90660. www.feit.com, 1-800-543-3348.
Pre-Assembly TOOLS REQUIRED PHILLIPS PENCIL SCREW DRIVER HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity 24in. LED Fixture 72in. Electrical Plug 18in. Connector Cable Mounting Screws Mounting Bracket Fixture Mounting Template Maximum Linkable Wattage Input Maximum Linkable Units with Item No.
Single LED Fixture Installation Position the Fixture Connecting the Electrical Plug Find the desired place for the LED light fixture and mark Plug in the Electrical Plug (BB) to the LED Fixture (AA). clearly using the provided mounting bracket template (FF). IMPORTANT: Do not plug in electrical plug to a wall power source until after connecting to the LED Fixture (AA).
Two or More LED Fixture Installation Position the Fixtures Linking the LED Fixtures Find the desired place for the LED light fixture and mark Connect the LED Fixtures (AA) using the provided clearly using the provided mounting bracket template (FF). Connector Cable (CC).
Operating Instructions CCT Button ON/OFF and Dim Button Use the ON/OFF and Dim Button for ON/OFF Operation and Changing the Dimming Levels To select the desired dimming level, Cycle through Dimming levels (High, Medium, Low, Dim, Off) by pressing the Dim Button.
