3. Relay Outputs

The module provides 5 SPTD relays (NO, C, NC) and for every relay there is led
indicator showing the relay state. When the led is ON, that means the relay is
activated and when OFF, the relay is not activated.
Relay outputs count
Contact type
Current consumption
Switching parameters
Digital output pin # (DAEnetIP4 JP3)
Digital Output #9 (JP3.1)
Digital Output #10 (JP3.2)
Digital Output #11 (JP3.3)
Digital Output #12 (JP3.4)
Digital Output #13 (JP3.4)
DAEnetIP4 SNMP Five Channel Relay Module - User's Manual

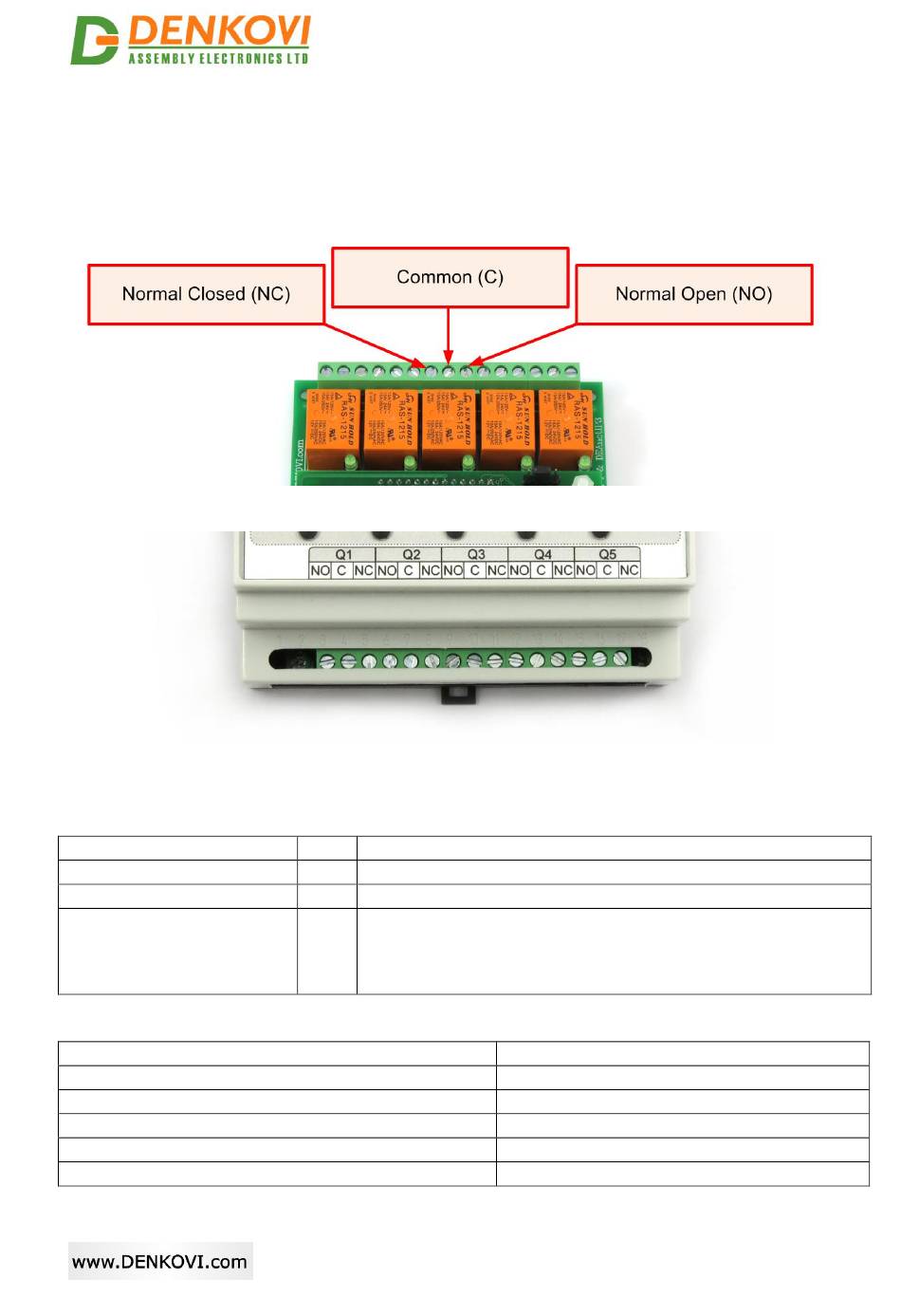

Figure 3. Location of the relays - PCB
Figure 4. Location of the relays - BOX
12
NO, NC
mA 15
A 10 (28 VDC)
A 15 (120 VAC)
A 10 (250 VAC)
A
Table 2. Mapping to DAEnetIP4 JP3 digital output port
Table 1. Relays electrical characteristics
Relay # (from peripheral board)
Relay 1
Relay 2
Relay 3
Relay 4
Relay 5
