 SNMP SET COMMANDS
Set Relay 1 State OFF
snmpget -v1 -c read 192.168.1.100 .1.3.6.1.4.1.42505.1.2.3.1.11.8 i 0
DENKOVI-MIB::DigitalOutputState.8 = INTEGER: off(0)
Set Relay 12 State
snmpget -v1 -c read 192.168.1.100 .1.3.6.1.4.1.42505.1.2.3.1.11.12 i 1
DENKOVI-MIB::DigitalOutputState.12 = INTEGER: on(1)
Set all relays states with single command
snmpget -v1 -c read 192.168.1.100 .1.3.6.1.4.1.42505.1.3.2.0 i 65535
DENKOVI-MIB::DigitalOutputsState.0 = INTEGER: 65535
3.2. How to use the relays
3.2.1. Controlling lamp
3.2.2. Controlling inductive load
You can read our article how to handle inductive loads for more information:
http://denkovi.com/controlling-inductive-devices
DAEnetIP4 SNMP Five Channel Relay Module - User's Manual

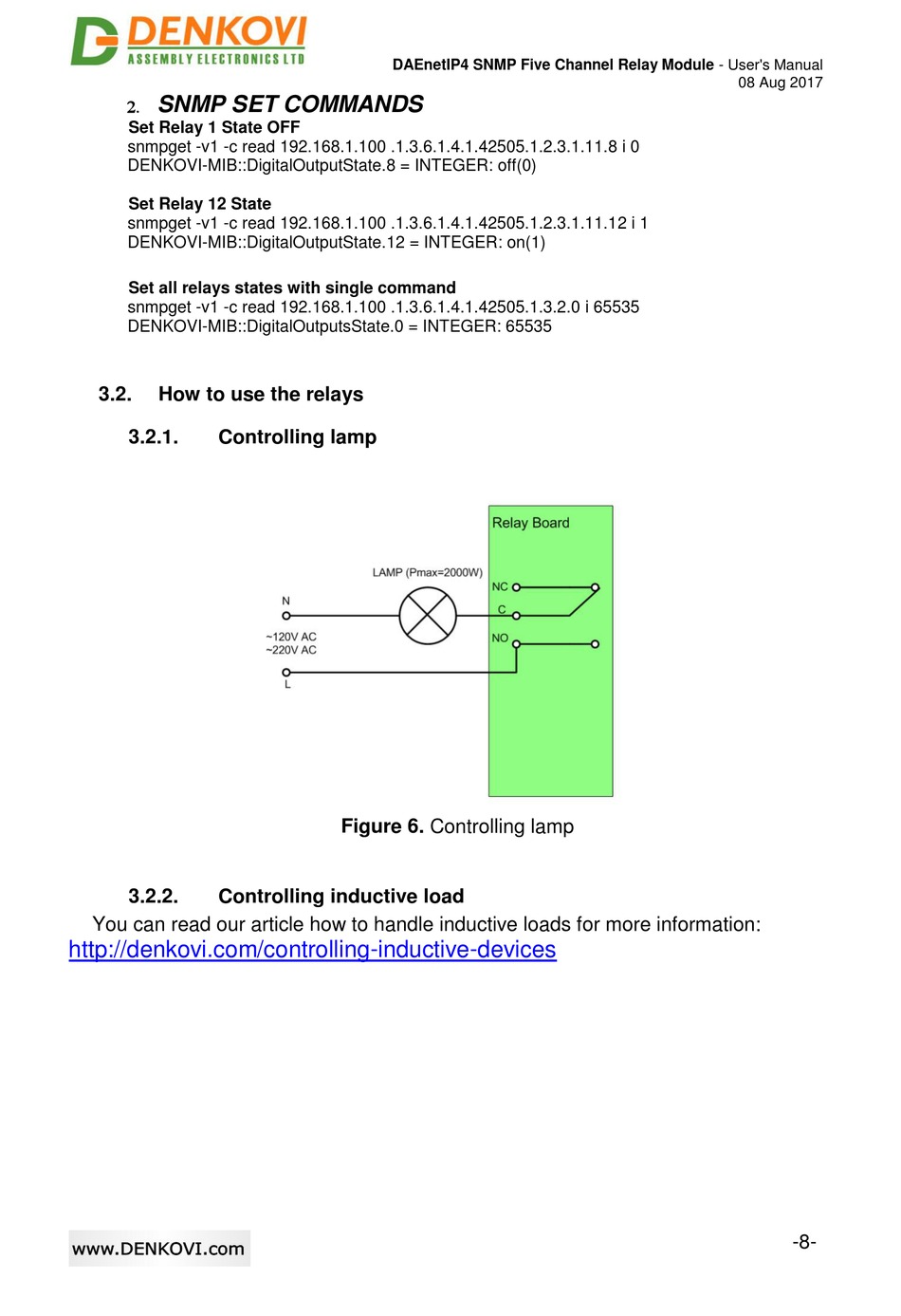

Figure 6. Controlling lamp
08 Aug 2017
-8-
